40 - ELECTRICAL SYSTEMS - 40.4 - ALARM SYSTEM of McLaren McLaren Ultimate Series McLaren Speedtail

View All

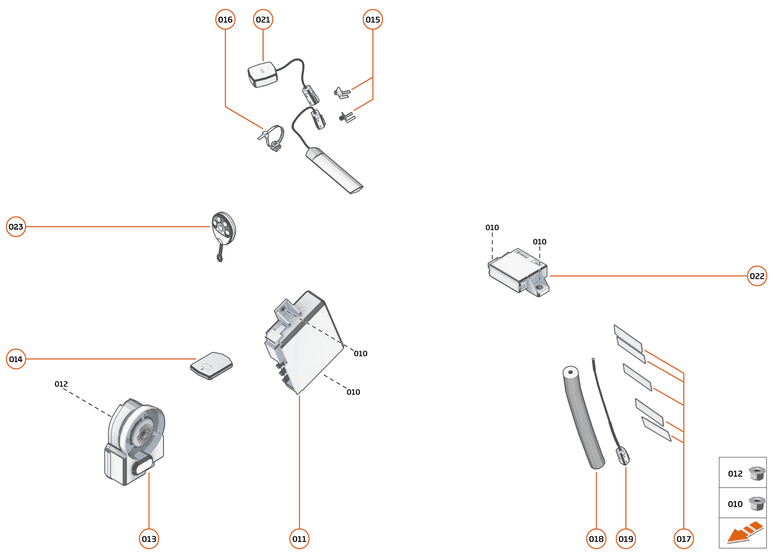

McLaren Ultimate Series McLaren Speedtail - 40 - ELECTRICAL SYSTEMS - 40.4 - ALARM SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8 Row ID: ID__00RA011_ContPgHS;	-	4	Enquire
011	13M0604CP	CONTROL UNIT - SATELLITE TRACKING ALARM	13M0604CP CONTROL UNIT - SATELLITE TRACKING ALARM Row ID: ID__13M0604CP_ContPgHS;	-	1	Enquire
012	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX Row ID: ID__00RA075_ContPgHS;	-	1	Enquire
013	11M1927CP	CONTROL UNIT - ALARM & SIREN	11M1927CP CONTROL UNIT - ALARM & SIREN Row ID: ID__11M1927CP_ContPgHS;	-	1	Enquire
014	11M0777CP	DRIVER CARD - SATELLITE TRACKING - RF	11M0777CP DRIVER CARD - SATELLITE TRACKING - RF Row ID: ID__11M0777CP_ContPgHS;	-	1	Enquire
015	12M0555CP	CONNECTOR HOLDER - SINGLE	12M0555CP CONNECTOR HOLDER - SINGLE Row ID: ID__12M0555CP_ContPgHS;	-	1	Enquire
016	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE Row ID: ID__00RL001_ContPgHS;	-	1	Enquire
017	00RL004		00RL004 FELT TAPE; Row ID: ID__00RL004_ContPgHS;	-	5	Enquire
018	23MA444CP	FOAM FOR RF ANTENNA	23MA444CP FOAM FOR RF ANTENNA Row ID: ID__23MA444CP_ContPgHS;	-	1	Enquire
019	11M0776CP	ANTENNA - SATELLITE TRACKING - RF	11M0776CP ANTENNA - SATELLITE TRACKING - RF Row ID: ID__11M0776CP_ContPgHS;	-	1	Enquire
020	11M1076CP	ANTENNA - SATELLITE TRACKING - GSM	11M1076CP ANTENNA - SATELLITE TRACKING - GSM Row ID: ID__11M1076CP_ContPgHS;	-	1	Enquire
021	11M0066CP	ANTENNA - SATELLITE TRACKING - VDL - GPS	11M0066CP ANTENNA - SATELLITE TRACKING - VDL - GPS Row ID: ID__11M0066CP_ContPgHS;	-	1	Enquire
022	11M1077CP	SENSOR - ALARM ANTI-TOW	11M1077CP SENSOR - ALARM ANTI-TOW Row ID: ID__11M1077CP_ContPgHS;	-	1	Enquire
023	11M1079CP	KEY FOB - TRACKER - BELGIUM	11M1079CP KEY FOB - TRACKER - BELGIUM Row ID: ID__11M1079CP_ContPgHS;	-	1	Enquire
