3 - REAR STRUCTURES - 3.1 - REAR FRAME of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

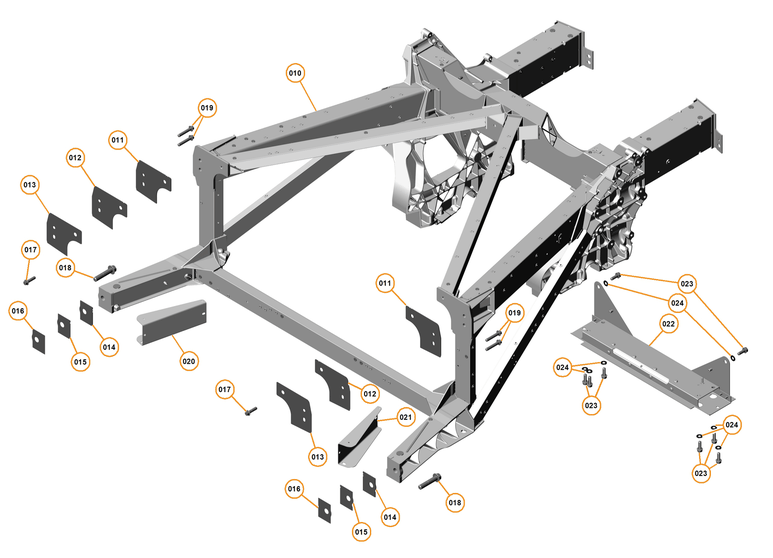

McLaren Ultimate Series McLaren P1 Coupe - 3 - REAR STRUCTURES - 3.1 - REAR FRAME

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12A2568CP	Frame Assy - Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A1240CP	SHIM REAR FRAME TO24UB-UPR-2MM	$19.29	To Order

Photo	Part No	Description	Price (each)	Stock
	11A1241CP	Shim - 1mm - Rear - Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A1242CP	SHIM REAR FRAME TO TUB-UPR-0.5	$14.20	To Order

Photo	Part No	Description	Price (each)	Stock
	11A1732CP	SHIM REAR FRAME TO TUB-LWR-2MM	$14.20	To Order

Photo	Part No	Description	Price (each)	Stock
	11A1733CP	SHIM REAR FRAME TO TUB-LWR-1MM	$9.89	To Order

Photo	Part No	Description	Price (each)	Stock
	11A1734CP	Shim - 0.5mm - Rear - Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA153	Bolt - M10x40 - Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA164	BOLT-HEX HEAD-FLANGE-M16X80-10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA400	SCREW - HEX HEAD - M10X60 - 10.9	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11A3816CP	COVER FRAME BULKHE24 MNTG LWR-	$95.65	To Order

Photo	Part No	Description	Price (each)	Stock
	11A3817CP	COVER FRAME BULKHE24 MNTG LWR-	$95.65	To Order

Photo	Part No	Description	Price (each)	Stock
	12A0362CP	Cross Beam - Transmission Floor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA157	Screw -M10x30 - Hex	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC065	WASHER - M10X21X2.0	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	12A2568CP	Frame Assy - Rear	12A2568CP Frame Assy - Rear Row ID: ID_BAAC0101_12A2568CP_ContPgHS;	-	1	Enquire
011	11A1240CP	SHIM REAR FRAME TO24UB-UPR-2MM	11A1240CP SHIM REAR FRAME TO24UB-UPR-2MM Row ID: ID_BAAC0102_11A1240CP_ContPgHS;	$19.29	2
012	11A1241CP	Shim - 1mm - Rear - Upper	11A1241CP Shim - 1mm - Rear - Upper Row ID: ID_BAAC0103_11A1241CP_ContPgHS;	-	2	Enquire
013	11A1242CP	SHIM REAR FRAME TO TUB-UPR-0.5	11A1242CP SHIM REAR FRAME TO TUB-UPR-0.5 Row ID: ID_BAAC0104_11A1242CP_ContPgHS;	$14.20	2
014	11A1732CP	SHIM REAR FRAME TO TUB-LWR-2MM	11A1732CP SHIM REAR FRAME TO TUB-LWR-2MM Row ID: ID_BAAC0105_11A1732CP_ContPgHS;	$14.20	2
015	11A1733CP	SHIM REAR FRAME TO TUB-LWR-1MM	11A1733CP SHIM REAR FRAME TO TUB-LWR-1MM Row ID: ID_BAAC0106_11A1733CP_ContPgHS;	$9.89	2
016	11A1734CP	Shim - 0.5mm - Rear - Lower	11A1734CP Shim - 0.5mm - Rear - Lower Row ID: ID_BAAC0107_11A1734CP_ContPgHS;	-	2	Enquire
017	00RA153	Bolt - M10x40 - Hex	00RA153 Bolt - M10x40 - Hex Row ID: ID_BAAC0108_00RA153_ContPgHS;	-	2	Enquire
018	00RA164	BOLT-HEX HEAD-FLANGE-M16X80-10	00RA164 BOLT-HEX HEAD-FLANGE-M16X80-10 Row ID: ID_BAAC0109_00RA164_ContPgHS;	-	2	Enquire
019	00RA400	SCREW - HEX HEAD - M10X60 - 10.9	00RA400 SCREW - HEX HEAD - M10X60 - 10.9 Row ID: ID_BAAC0110_00RA400_ContPgHS;	-	4	Enquire
020	11A3816CP	COVER FRAME BULKHE24 MNTG LWR-	11A3816CP COVER FRAME BULKHE24 MNTG LWR- Row ID: ID_BAAC0111_11A3816CP_ContPgHS;	$95.65	1
021	11A3817CP	COVER FRAME BULKHE24 MNTG LWR-	11A3817CP COVER FRAME BULKHE24 MNTG LWR- Row ID: ID_BAAC0112_11A3817CP_ContPgHS;	$95.65	1
022	12A0362CP	Cross Beam - Transmission Floor	12A0362CP Cross Beam - Transmission Floor Row ID: ID_BAAC0113_12A0362CP_ContPgHS;	-	1	Enquire
023	00RA157	Screw -M10x30 - Hex	00RA157 Screw -M10x30 - Hex Row ID: ID_BAAC0114_00RA157_ContPgHS;	-	8	Enquire
024	00RC065	WASHER - M10X21X2.0	00RC065 WASHER - M10X21X2.0 Row ID: ID_BAAC0115_00RC065_ContPgHS;	-	8	Enquire
