1 - FRONT STRUCTURES - 1.1 - FRONT CRASH STRUCTURE of McLaren McLaren Ultimate Series McLaren P1 Coupe

View All

McLaren Ultimate Series McLaren P1 Coupe - 1 - FRONT STRUCTURES - 1.1 - FRONT CRASH STRUCTURE

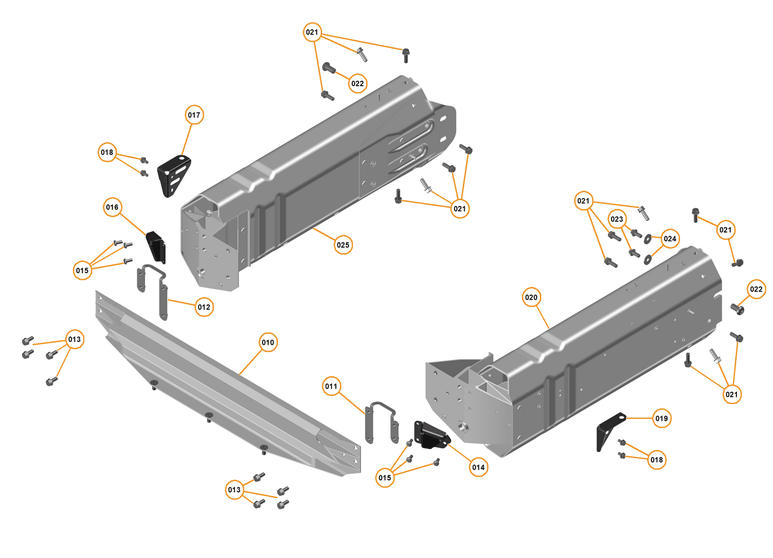

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	12A1425CP	Bumper Beam - Front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A0945CP	Bracket - Bumper Mounting - Front - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A0946CP	Bracket - Bumper Mounting - Front - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA002	BOLT - M8X20 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2171CP	Bracket - Front Longitudinal - Federal - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RM013	RIVET - 1/4 4.7-11MM - BLIND - HUCKLOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2172CP	Bracket - Front Longitudinal - Federal - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2169CP	Bracket - Support - Headlamp - RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA065	SCREW - M6X12-8.8 - FLANGE HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A2170CP	Bracket - Support - Headlamp - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A0323CP	Longitudinal Crash Structure - Front - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA028	BOLT - M8X25 - 10.9 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA282	SCREW - 12X25 - BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA302	SCREW - M8X20 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC015	WASHER - M8X24X2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12A0352CP	Longitudinal Crash Structure - Front - RH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	12A1425CP	Bumper Beam - Front	12A1425CP Bumper Beam - Front Row ID: ID_BAAA0101_12A1425CP_ContPgHS;	-	1	Enquire
011	12A0945CP	Bracket - Bumper Mounting - Front - RH	12A0945CP Bracket - Bumper Mounting - Front - RH Row ID: ID_BAAA0102_12A0945CP_ContPgHS;	-	1	Enquire
012	12A0946CP	Bracket - Bumper Mounting - Front - LH	12A0946CP Bracket - Bumper Mounting - Front - LH Row ID: ID_BAAA0103_12A0946CP_ContPgHS;	-	1	Enquire
013	00RA002	BOLT - M8X20 - HEX	00RA002 BOLT - M8X20 - HEX Row ID: ID_BAAA0104_00RA002_ContPgHS;	-	8	Enquire
014	12A2171CP	Bracket - Front Longitudinal - Federal - LH	12A2171CP Bracket - Front Longitudinal - Federal - LH Row ID: ID_BAAA0105_12A2171CP_ContPgHS;	-	1	Enquire
015	00RM013	RIVET - 1/4 4.7-11MM - BLIND - HUCKLOK	00RM013 RIVET - 1/4 4.7-11MM - BLIND - HUCKLOK Row ID: ID_BAAA0106_00RM013_ContPgHS;	-	6	Enquire
016	12A2172CP	Bracket - Front Longitudinal - Federal - RH	12A2172CP Bracket - Front Longitudinal - Federal - RH Row ID: ID_BAAA0107_12A2172CP_ContPgHS;	-	1	Enquire
017	12A2169CP	Bracket - Support - Headlamp - RH	12A2169CP Bracket - Support - Headlamp - RH Row ID: ID_BAAA0108_12A2169CP_ContPgHS;	-	1	Enquire
018	00RA065	SCREW - M6X12-8.8 - FLANGE HEX	00RA065 SCREW - M6X12-8.8 - FLANGE HEX Row ID: ID_BAAA0109_00RA065_ContPgHS;	-	4	Enquire
019	12A2170CP	Bracket - Support - Headlamp - LH	12A2170CP Bracket - Support - Headlamp - LH Row ID: ID_BAAA0110_12A2170CP_ContPgHS;	-	1	Enquire
020	12A0323CP	Longitudinal Crash Structure - Front - LH	12A0323CP Longitudinal Crash Structure - Front - LH Row ID: ID_BAAA0111_12A0323CP_ContPgHS;	-	1	Enquire
021	00RA028	BOLT - M8X25 - 10.9 - HEX	00RA028 BOLT - M8X25 - 10.9 - HEX Row ID: ID_BAAA0112_00RA028_ContPgHS;	-	17	Enquire
022	00RA282	SCREW - 12X25 - BUTTON	00RA282 SCREW - 12X25 - BUTTON Row ID: ID_BAAA0113_00RA282_ContPgHS;	-	2	Enquire
023	00RA302	SCREW - M8X20 - HEX	00RA302 SCREW - M8X20 - HEX Row ID: ID_BAAA0114_00RA302_ContPgHS;	-	2	Enquire
024	00RC015	WASHER - M8X24X2	00RC015 WASHER - M8X24X2 Row ID: ID_BAAA0115_00RC015_ContPgHS;	-	2	Enquire
025	12A0352CP	Longitudinal Crash Structure - Front - RH	12A0352CP Longitudinal Crash Structure - Front - RH Row ID: ID_BAAA0116_12A0352CP_ContPgHS;	-	1	Enquire
