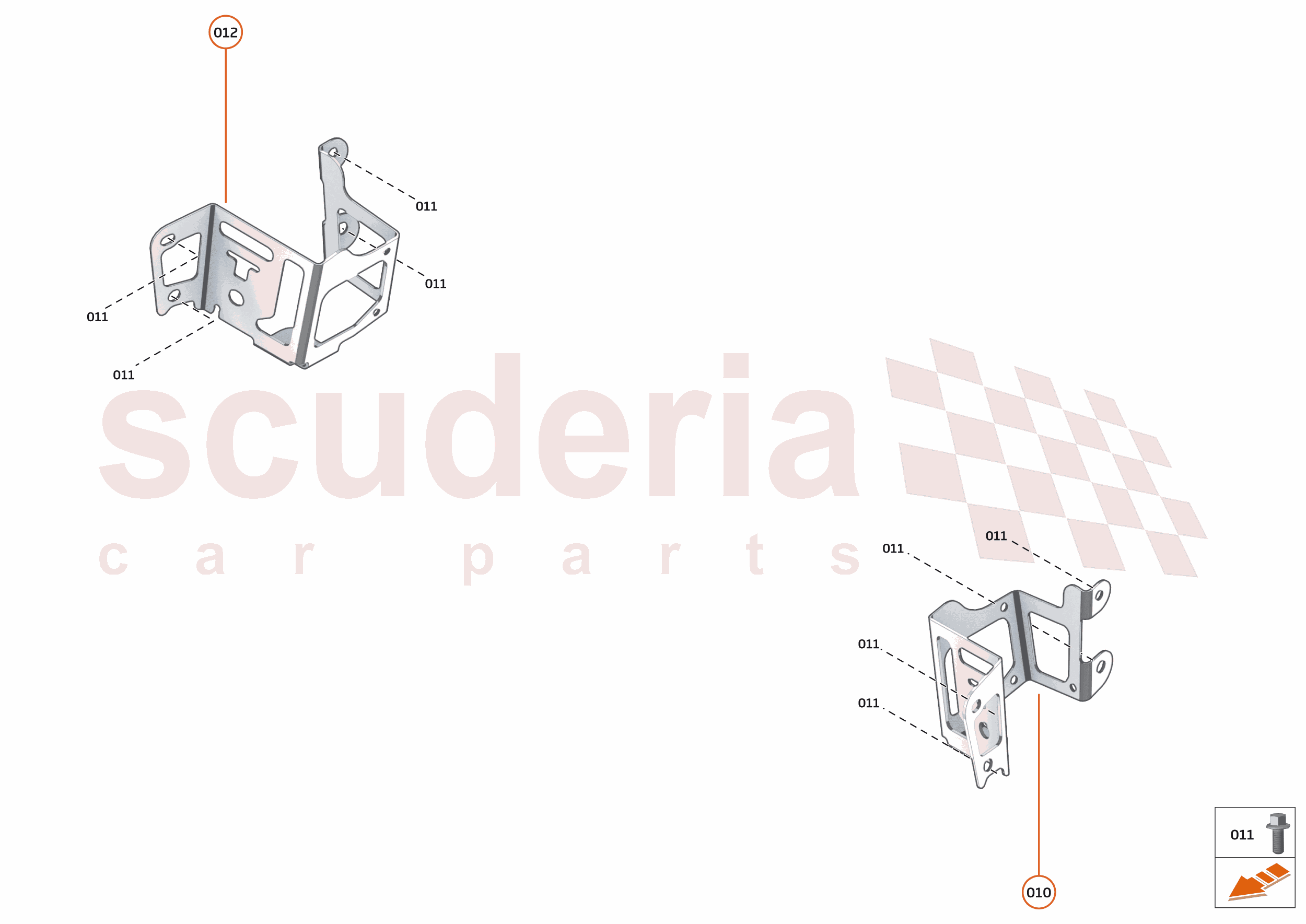

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	15AB971CP	BRACKET - SEAT BELT - LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA557	BOLT - HEX HEAD - M8X1.25X25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AB972CP	BRACKET - SEAT BELT - RH	Enquire	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	15AB971CP	BRACKET - SEAT BELT - LH	15AB971CP BRACKET - SEAT BELT - LH Row ID: ID__15AB971CP_ContPgHS;	-	1	Enquire
011	00RA557	BOLT - HEX HEAD - M8X1.25X25	00RA557 BOLT - HEX HEAD - M8X1.25X25 Row ID: ID__00RA557_ContPgHS;	-	4	Enquire
012	15AB972CP	BRACKET - SEAT BELT - RH	15AB972CP BRACKET - SEAT BELT - RH Row ID: ID__15AB972CP_ContPgHS;	-	1	Enquire
013	14AA501CP	SEAL - UPPER HINGE - CAPPING - LH	14AA501CP SEAL - UPPER HINGE - CAPPING - LH Row ID: ID__14AA501CP_ContPgHS;	$52.38	1
014	00RA427	Starlock - Diameter 6mm Shaft - 8024	00RA427 Starlock - Diameter 6mm Shaft - 8024 Row ID: ID__00RA427_ContPgHS;	-	2	Enquire
015	14AC655CP	STRUCTUAL PLATE - COVER UPPER DOOR HINGE - LH	14AC655CP STRUCTUAL PLATE - COVER UPPER DOOR HINGE - LH Row ID: ID__14AC655CP_ContPgHS;	$45.65	1
016	00RA601	Screw - M6x1x12	00RA601 Screw - M6x1x12 Row ID: ID__00RA601_ContPgHS;	-	2	Enquire
017	00RB012	CLIP - 2MM - TRIM PANEL	00RB012 CLIP - 2MM - TRIM PANEL Row ID: ID__00RB012_ContPgHS;	-	1	Enquire
018	14AA503CP	SEAL - UPPER HINGE - CAPPING - RH	14AA503CP SEAL - UPPER HINGE - CAPPING - RH Row ID: ID__14AA503CP_ContPgHS;	$52.38	1
019	14AC657CP	STRUCTUAL PLATE - COVER UPPER DOOR HINGE - RH	14AC657CP STRUCTUAL PLATE - COVER UPPER DOOR HINGE - RH Row ID: ID__14AC657CP_ContPgHS;	$45.65	1
