4 - FLOORS - 4.4 - REAR NON-STRUCTURAL FLOORS of McLaren McLaren Ultimate Series McLaren Senna GTR

View All

McLaren Ultimate Series McLaren Senna GTR - 4 - FLOORS - 4.4 - REAR NON-STRUCTURAL FLOORS

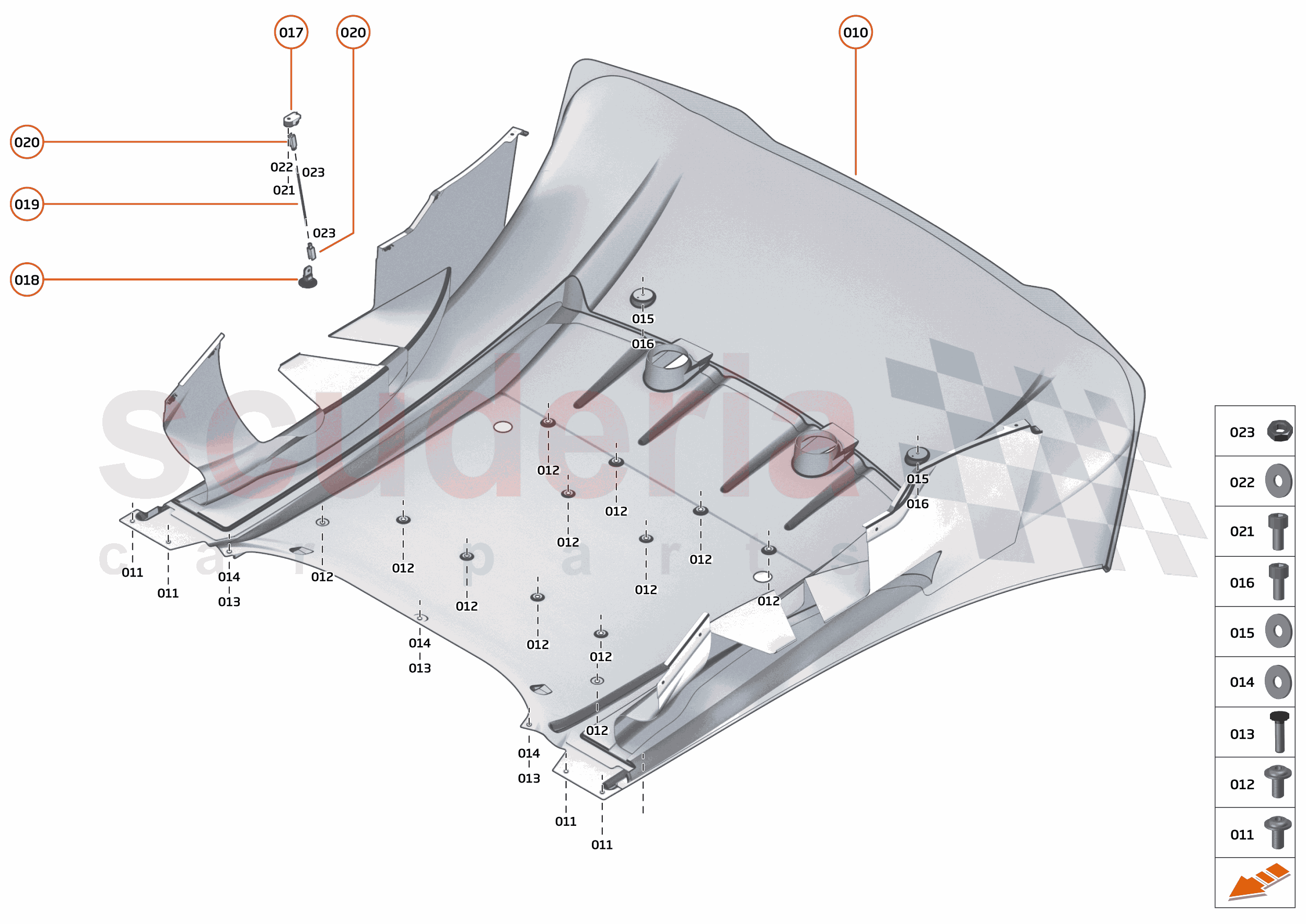

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	15AA071RP	ASSY RR DIFFUSER - CFG	Enquire	To Order
	15AA513RP	ASSY RR DIFFUSER - CFS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA600	SCREW - HEX HEAD - M6X1X20-8.8-78	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC013	WASHER - M6X18X1.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC103	WASHER - M5X10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AA355RP	SCR-CAP HD-HX-M5X0.8X15-SS-00	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AA329RP	CLEVIS UPR DIFFUSER STAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AA292RP	CLEVIS LWR DIFFUSER STAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AA289RP	BAR STAY DIFFUSER M5 X 140MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AA290RP	CLIP SNAP-LOCK CLEVIS M5 X 20M	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA152	Screw - M6x25 - Hex Socket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RC097	Washer - 6.4x12x1.6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA739	HALF NUT M5 X 0.8	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	15AA071RP	ASSY RR DIFFUSER - CFG	15AA071RP ASSY RR DIFFUSER - CFG Row ID: ID__15AA071RP_ContPgHS;	-	1	Enquire
010	15AA513RP	ASSY RR DIFFUSER - CFS	15AA513RP ASSY RR DIFFUSER - CFS Row ID: ID__15AA513RP_ContPgHS;	-	1	Enquire
011	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	4	Enquire
012	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Row ID: ID__00RA468_ContPgHS;	-	-	Enquire
013	00RA600	SCREW - HEX HEAD - M6X1X20-8.8-78	00RA600 SCREW - HEX HEAD - M6X1X20-8.8-78 Row ID: ID__00RA600_ContPgHS;	-	3	Enquire
014	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6 Row ID: ID__00RC013_ContPgHS;	-	3	Enquire
015	00RC103	WASHER - M5X10	00RC103 WASHER - M5X10 Row ID: ID__00RC103_ContPgHS;	-	2	Enquire
016	15AA355RP	SCR-CAP HD-HX-M5X0.8X15-SS-00	15AA355RP SCR-CAP HD-HX-M5X0.8X15-SS-00 Row ID: ID__15AA355RP_ContPgHS;	-	2	Enquire
017	15AA329RP	CLEVIS UPR DIFFUSER STAY	15AA329RP CLEVIS UPR DIFFUSER STAY Row ID: ID__15AA329RP_ContPgHS;	-	2	Enquire
018	15AA292RP	CLEVIS LWR DIFFUSER STAY	15AA292RP CLEVIS LWR DIFFUSER STAY Row ID: ID__15AA292RP_ContPgHS;	-	2	Enquire
019	15AA289RP	BAR STAY DIFFUSER M5 X 140MM	15AA289RP BAR STAY DIFFUSER M5 X 140MM Row ID: ID__15AA289RP_ContPgHS;	-	2	Enquire
020	15AA290RP	CLIP SNAP-LOCK CLEVIS M5 X 20M	15AA290RP CLIP SNAP-LOCK CLEVIS M5 X 20M Row ID: ID__15AA290RP_ContPgHS;	-	4	Enquire
021	00RA152	Screw - M6x25 - Hex Socket	00RA152 Screw - M6x25 - Hex Socket Row ID: ID__00RA152_ContPgHS;	-	2	Enquire
022	00RC097	Washer - 6.4x12x1.6	00RC097 Washer - 6.4x12x1.6 Row ID: ID__00RC097_ContPgHS;	-	2	Enquire
023	00RA739	HALF NUT M5 X 0.8	00RA739 HALF NUT M5 X 0.8 Row ID: ID__00RA739_ContPgHS;	-	4	Enquire
024	15AC583CP	REAR DIFFUSER - CARBON FIBRE GLOSS	15AC583CP REAR DIFFUSER - CARBON FIBRE GLOSS Row ID: ID__15AC583CP_ContPgHS;	-	1	Enquire
