6 - PANELS - 6.7 - REAR PANELS - CENTRE of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 6 - PANELS - 6.7 - REAR PANELS - CENTRE

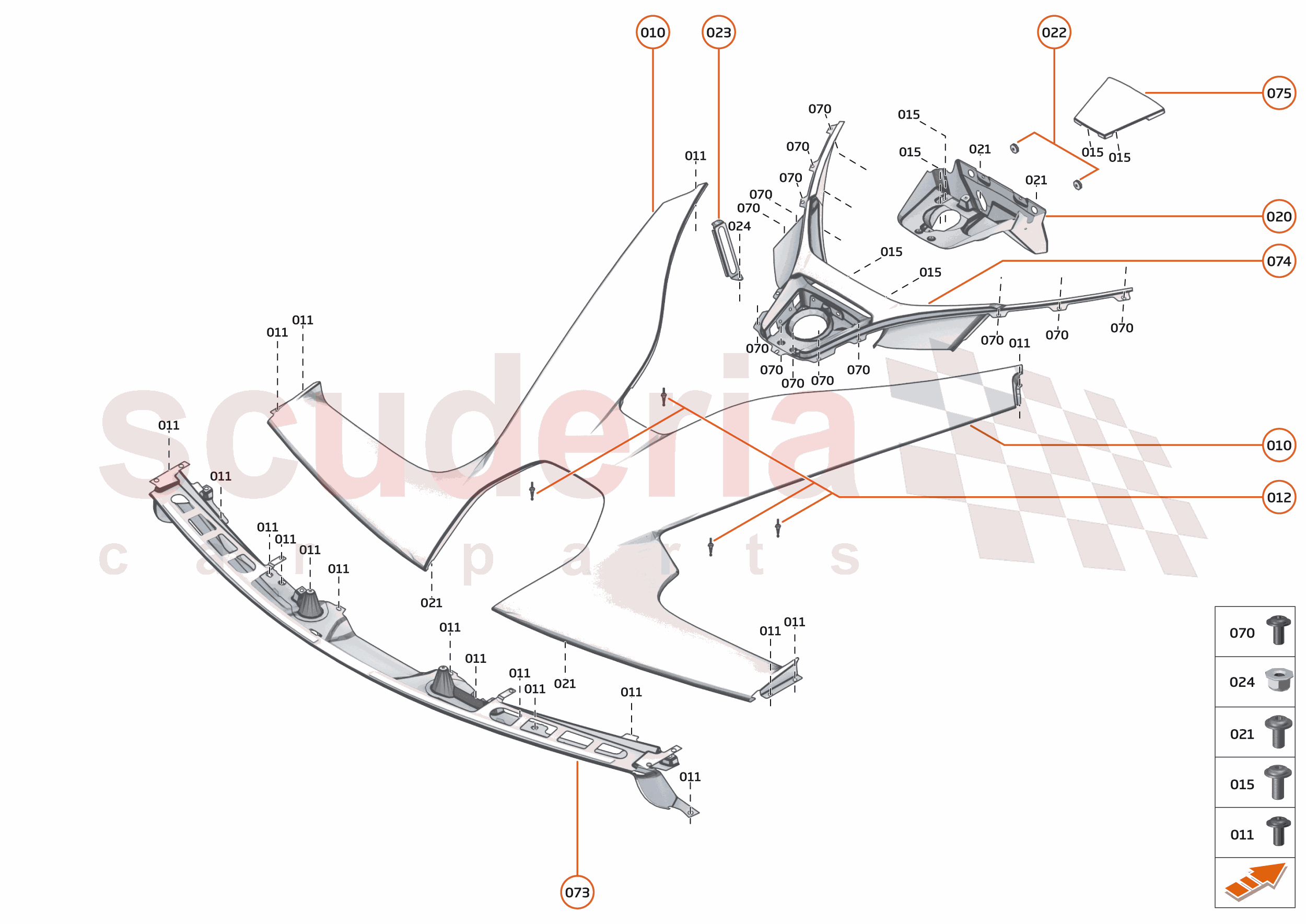

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	15AB080CP	ASSY - REAR DECK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA543	Ball Stud - Rear Deck	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC772CP	SUPPORT - CENTRAL HIGH MOUNTED STOP LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RG035	REEVITE - 15.9x3.2x8x82x5.4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AB778CP	BRACKET - HIGH MOUNT STOP LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA555	NUT - M5X0.8 - HEX LOCKED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA408	BTN HD FLANGE TORX M4X8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC965CP	BEZEL - TAIL LAMP - CENTRE - DARK GLOSS CARBON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC870CP	ASSY CHMSL HOUSING PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC960CP	ASSY OIL FILLER FLAP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	15AB080CP	ASSY - REAR DECK	15AB080CP ASSY - REAR DECK REAR DECK; Row ID: ID_EAAF0301_15AB080CP_ContPgHS;	-	1	Enquire
011	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID_XXXXXXZV_00RA432_ContPgHS;	-	22	Enquire
012	00RA543	Ball Stud - Rear Deck	00RA543 Ball Stud - Rear Deck Row ID: ID_XXXXXXZV_00RA543_ContPgHS;	-	4	Enquire
015	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10 Row ID: ID_XXXXXXZV_00RA398_ContPgHS;	-	6	Enquire
020	15AC772CP	SUPPORT - CENTRAL HIGH MOUNTED STOP LAMP	15AC772CP SUPPORT - CENTRAL HIGH MOUNTED STOP LAMP Row ID: ID_EAAF0304_15AC772CP_ContPgHS;	-	1	Enquire
021	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Row ID: ID_XXXXXXZV_00RA468_ContPgHS;	-	4	Enquire
022	00RG035	REEVITE - 15.9x3.2x8x82x5.4	00RG035 REEVITE - 15.9x3.2x8x82x5.4 Row ID: ID_EAAF0305_00RG035_ContPgHS;	-	2	Enquire
023	15AB778CP	BRACKET - HIGH MOUNT STOP LIGHT	15AB778CP BRACKET - HIGH MOUNT STOP LIGHT Row ID: ID_EAAF0306_15AB778CP_ContPgHS;	-	1	Enquire
024	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED Row ID: ID_EAAF0358_00RA555_ContPgHS;	-	1	Enquire
070	00RA408	BTN HD FLANGE TORX M4X8	00RA408 BTN HD FLANGE TORX M4X8 Row ID: ID_EAAF0344_00RA408_ContPgHS;	-	13	Enquire
073	15AC965CP	BEZEL - TAIL LAMP - CENTRE - DARK GLOSS CARBON	15AC965CP BEZEL - TAIL LAMP - CENTRE - DARK GLOSS CARBON Row ID: ID_EAAF0347_15AC965CP_ContPgHS;	-	1	Enquire
074	15AC870CP	ASSY CHMSL HOUSING PANEL	15AC870CP ASSY CHMSL HOUSING PANEL Row ID: ID_EAAF0348_15AC870CP_ContPgHS;	-	1	Enquire
075	15AC960CP	ASSY OIL FILLER FLAP	15AC960CP ASSY OIL FILLER FLAP Row ID: ID_EAAF0349_15AC960CP_ContPgHS;	-	1	Enquire
