6 - PANELS - 6.3 - FRONT PANELS - CENTER of McLaren McLaren Ultimate Series McLaren Senna

View All

McLaren Ultimate Series McLaren Senna - 6 - PANELS - 6.3 - FRONT PANELS - CENTER

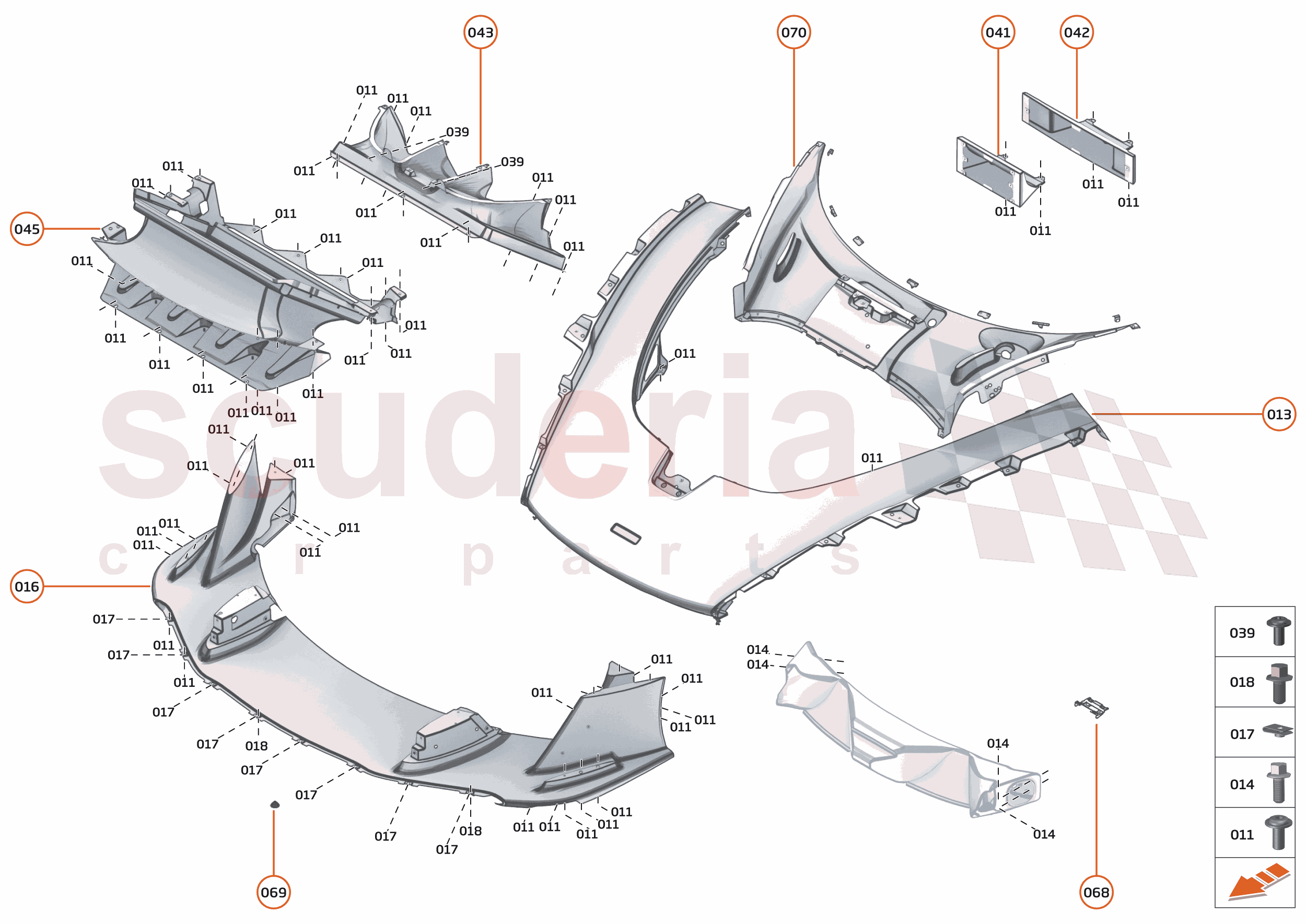

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC528CP	CLAM - OUTER - FRONT	Enquire	To Order
	15AA003MP	CLAM - OUTER - FRONT - MSO	Enquire	To Order
	15AA093MP	ASSY - FR CLAM OTR VCF - ELECTROFORM	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	00RA557	BOLT - HEX HEAD - M8X1.25X25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC568CP	ASSY FRONT SPLITTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA515	Bolt - Hex - Flange - M6x16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC765CP	LICENCE PLATE FR - MOUNTING PLINTH - REST OF WORLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC763CP	LICENCE PLATE - MOUNTING PLINTH - EU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC705CP	DUCT - LOW TEMPERATURE RADIATOR - OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AC949CP	DUCT - LOW TEMPERATURE RADIATOR - INTAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13A5805CP	SERVICE COVER - HINGE	$104.11	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB187	CLIP-SNAPLOCK-CPLG-14X7-EPDM-BLK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15AD166CP	WIPER COVER - LHD	Enquire	To Order
	15AD169CP	WIPER COVER - RHD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
011	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10 Row ID: ID_XXXXXXZV_00RA398_ContPgHS;	-	50	Enquire
013	15AC528CP	CLAM - OUTER - FRONT	15AC528CP CLAM - OUTER - FRONT Row ID: ID_EAAF0103_15AC528CP_ContPgHS;	-	1	Enquire
013	15AA003MP	CLAM - OUTER - FRONT - MSO	15AA003MP CLAM - OUTER - FRONT - MSO Row ID: ID__15AA003MP_ContPgHS;	-	1	Enquire
013	15AA093MP	ASSY - FR CLAM OTR VCF - ELECTROFORM	15AA093MP ASSY - FR CLAM OTR VCF - ELECTROFORM Row ID: ID__15AA093MP_ContPgHS;	-	1	Enquire
013	15AA170MP	ASSY - FR CLAM OTR FEDERAL VCF	15AA170MP ASSY - FR CLAM OTR FEDERAL VCF Row ID: ID__15AA170MP_ContPgHS;	-	1	Enquire
013	15AA171MP	ASSY - FR CLAM OTR FDRL VCF - NO RECESS	15AA171MP ASSY - FR CLAM OTR FDRL VCF - NO RECESS Row ID: ID__15AA171MP_ContPgHS;	-	1	Enquire
013	15AD260CP	CLAM - OUTER - FRONT	15AD260CP CLAM - OUTER - FRONT Row ID: ID__15AD260CP_ContPgHS;	-	1	Enquire
013	15AD262CP	CLAM - OUTER - FRONT - FEDERAL	15AD262CP CLAM - OUTER - FRONT - FEDERAL Row ID: ID__15AD262CP_ContPgHS;	-	1	Enquire
014	00RA557	BOLT - HEX HEAD - M8X1.25X25	00RA557 BOLT - HEX HEAD - M8X1.25X25 Row ID: ID_XXXXXXZV_00RA557_ContPgHS;	-	4	Enquire
016	15AC568CP	ASSY FRONT SPLITTER	15AC568CP ASSY FRONT SPLITTER Row ID: ID_EAAF0104_15AC568CP_ContPgHS;	-	1	Enquire
017	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	00RA301 Clip - Spier - M5 - 0.5/2.1-SS Row ID: ID_XXXXXXZY_00RA301_ContPgHS;	-	8	Enquire
018	00RA515	Bolt - Hex - Flange - M6x16	00RA515 Bolt - Hex - Flange - M6x16 Row ID: ID_EAAF0367_00RA515_ContPgHS;	-	2	Enquire
039	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Row ID: ID_XXXXXXZV_00RA409_ContPgHS;	-	2	Enquire
041	15AC765CP	LICENCE PLATE FR - MOUNTING PLINTH - REST OF WORLD	15AC765CP LICENCE PLATE FR - MOUNTING PLINTH - REST OF WORLD Superseded parts: 15AA353CP; Row ID: ID_EAAF0128_15AC765CP_ContPgHS;	-	1	Enquire
042	15AC763CP	LICENCE PLATE - MOUNTING PLINTH - EU	15AC763CP LICENCE PLATE - MOUNTING PLINTH - EU Superseded parts: 15AB601CP; Row ID: ID_EAAF0129_15AC763CP_ContPgHS;	-	1	Enquire
043	15AC705CP	DUCT - LOW TEMPERATURE RADIATOR - OUTLET	15AC705CP DUCT - LOW TEMPERATURE RADIATOR - OUTLET Row ID: ID_EAAF0130_15AC705CP_ContPgHS;	-	1	Enquire
045	15AC949CP	DUCT - LOW TEMPERATURE RADIATOR - INTAKE	15AC949CP DUCT - LOW TEMPERATURE RADIATOR - INTAKE Superseded parts: 15AC709CP; Row ID: ID_EAAF0131_15AC949CP_ContPgHS;	-	1	Enquire
068	13A5805CP	SERVICE COVER - HINGE	13A5805CP SERVICE COVER - HINGE Row ID: ID_EBAJ0523_13A5805CP_ContPgHS;	$104.11	1
069	00RB187	CLIP-SNAPLOCK-CPLG-14X7-EPDM-BLK	00RB187 CLIP-SNAPLOCK-CPLG-14X7-EPDM-BLK Row ID: ID__00RB187_ContPgHS;	-	6	Enquire
070	15AD166CP	WIPER COVER - LHD	15AD166CP WIPER COVER - LHD Row ID: ID__15AD166CP_ContPgHS;	-	1	Enquire
070	15AD169CP	WIPER COVER - RHD	15AD169CP WIPER COVER - RHD Row ID: ID__15AD169CP_ContPgHS;	-	1	Enquire
