40 - INTERIOR SYSTEMS - 40.9 - LOWER & REAR TRIM of McLaren McLaren Super Series McLaren Artura

View All

McLaren Super Series McLaren Artura - 40 - INTERIOR SYSTEMS - 40.9 - LOWER & REAR TRIM

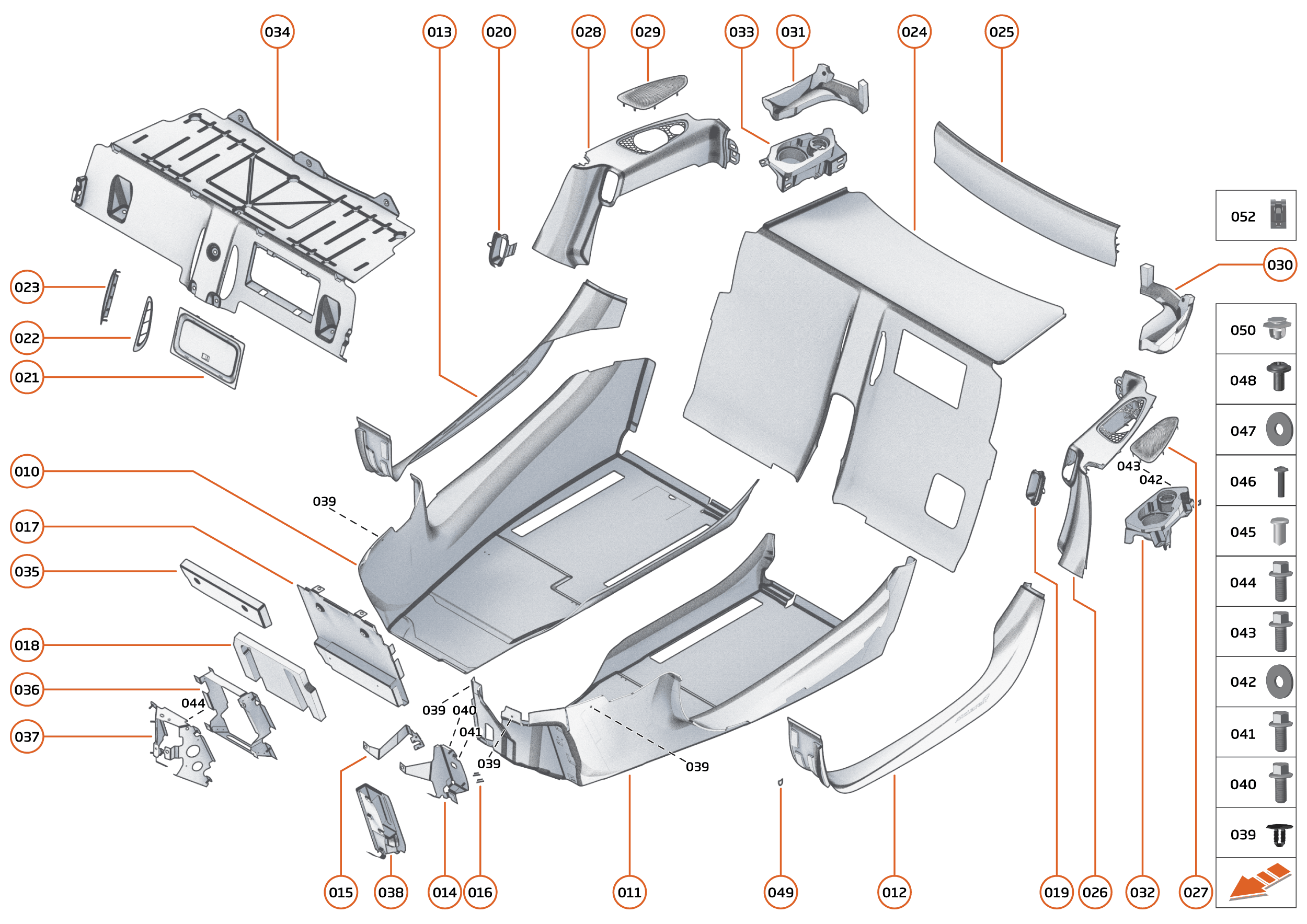

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	16NB881CP	CARPET TUB-RH-LHD	16NB881CP CARPET TUB-RH-LHD Row ID: ID__16NB881CP_ContPgHS;	-	1	Enquire
010	16NB883CP	CARPET TUB RH-RHD	16NB883CP CARPET TUB RH-RHD Row ID: ID__16NB883CP_ContPgHS;	-	1	Enquire
011	16NB882CP	CARPET TUBL-LH-LHD	16NB882CP CARPET TUBL-LH-LHD Row ID: ID__16NB882CP_ContPgHS;	-	1	Enquire
011	16NB884CP	CARPET TUB LH-RHD	16NB884CP CARPET TUB LH-RHD Row ID: ID__16NB884CP_ContPgHS;	-	1	Enquire
011	16NB885CP	CARPET TUB LH-US	16NB885CP CARPET TUB LH-US Row ID: ID__16NB885CP_ContPgHS;	-	1	Enquire
012	16NB610CP	SILL COVER-LH	16NB610CP SILL COVER-LH Row ID: ID__16NB610CP_ContPgHS;	-	1	Enquire
012	16NB733CP	ASSY-SILL COVER-CF LH	16NB733CP ASSY-SILL COVER-CF LH Row ID: ID__16NB733CP_ContPgHS;	-	1	Enquire
013	16NB612CP	SILL COVER-RH	16NB612CP SILL COVER-RH Row ID: ID__16NB612CP_ContPgHS;	-	1	Enquire
013	16NB734CP	ASSY-SILL COVER-CF RH	16NB734CP ASSY-SILL COVER-CF RH Row ID: ID__16NB734CP_ContPgHS;	-	1	Enquire
014	16NA636CP	DRIVER FOOTREST RHD	16NA636CP DRIVER FOOTREST RHD Row ID: ID__16NA636CP_ContPgHS;	-	1	Enquire
014	16NA632CP	DRIVER FOOTREST LHD	16NA632CP DRIVER FOOTREST LHD Row ID: ID__16NA632CP_ContPgHS;	-	1	Enquire
014	11N1491CP	Footrest - US - Driver	11N1491CP Footrest - US - Driver Row ID: ID__11N1491CP_ContPgHS;	-	1	Enquire
015	16NA633CP	BRKT FOOTREST SUPPORT DRIVER - LHD	16NA633CP BRKT FOOTREST SUPPORT DRIVER - LHD Row ID: ID__16NA633CP_ContPgHS;	-	1	Enquire
016	11N0642CP	FOAM-DRIVER FOOTRE24-RHD	11N0642CP FOAM-DRIVER FOOTRE24-RHD Row ID: ID__11N0642CP_ContPgHS;	$107.86	1
016	11N0643CP	FOOTREST - FOAM - LHD - DRIVER	11N0643CP FOOTREST - FOAM - LHD - DRIVER Row ID: ID__11N0643CP_ContPgHS;	-	1	Enquire
017	16NC033CP	ASSY-PASSENGER FOOTREST-FIRE - EXTINGUISHER	16NC033CP ASSY-PASSENGER FOOTREST-FIRE - EXTINGUISHER Row ID: ID__16NC033CP_ContPgHS;	-	1	Enquire
017	16NC031CP	ASSY PASSENGER FOOTREST-RHD	16NC031CP ASSY PASSENGER FOOTREST-RHD Row ID: ID__16NC031CP_ContPgHS;	-	1	Enquire
017	16NB971CP	ASSY PASSENGER FOOTREST-LHD	16NB971CP ASSY PASSENGER FOOTREST-LHD Row ID: ID__16NB971CP_ContPgHS;	-	1	Enquire
018	11N2595CP	NVH PAD - PASSENGER FOOTREST - LHD	11N2595CP NVH PAD - PASSENGER FOOTREST - LHD Row ID: ID__11N2595CP_ContPgHS;	-	1	Enquire
018	11N2596CP	NVH PAD - PASS FOO24EST RHD	11N2596CP NVH PAD - PASS FOO24EST RHD Row ID: ID__11N2596CP_ContPgHS;	$14.11	1
018	11N2597CP	NVH PAD - PASSENGER FOOTREST - US	11N2597CP NVH PAD - PASSENGER FOOTREST - US Row ID: ID__11N2597CP_ContPgHS;	-	1	Enquire
019	16NB757CP	SEAT BELT ESCUTCHEON LH	16NB757CP SEAT BELT ESCUTCHEON LH Row ID: ID__16NB757CP_ContPgHS;	-	1	Enquire
020	16NB759CP	SEAT BELT ESCUTCHEON RH	16NB759CP SEAT BELT ESCUTCHEON RH Row ID: ID__16NB759CP_ContPgHS;	-	1	Enquire
021	11N0887CP	FUSEBOX ACCESS PANEL - INTERIOR	11N0887CP FUSEBOX ACCESS PANEL - INTERIOR Row ID: ID__11N0887CP_ContPgHS;	-	1	Enquire
022	16NB684CP	ESG BEZEL LH	16NB684CP ESG BEZEL LH Row ID: ID__16NB684CP_ContPgHS;	-	1	Enquire
023	16NB685CP	ESG BEZEL RH	16NB685CP ESG BEZEL RH Row ID: ID__16NB685CP_ContPgHS;	-	1	Enquire
024	16NC595CP	ASSY - CARPET FUEL-CEL - BULKHEAD	16NC595CP ASSY - CARPET FUEL-CEL - BULKHEAD Row ID: ID__16NC595CP_ContPgHS;	-	1	Enquire
024	16NC597CP	ASSY - CARPET FUEL CELL - BULKHEAD US	16NC597CP ASSY - CARPET FUEL CELL - BULKHEAD US Row ID: ID__16NC597CP_ContPgHS;	-	1	Enquire
024	16NA024MP	ASSY-CARPET FUEL CELL BULKHEAD - ESG-HB	16NA024MP ASSY-CARPET FUEL CELL BULKHEAD - ESG-HB Row ID: ID__16NA024MP_ContPgHS;	-	1	Enquire
024	16NA025MP	ASSY-CARPET FUEL CELL BULKHEAD - ESG US-HB	16NA025MP ASSY-CARPET FUEL CELL BULKHEAD - ESG US-HB Row ID: ID__16NA025MP_ContPgHS;	-	1	Enquire
025	16NC071CP	ASSY - REAR CAPPING PANEL	16NC071CP ASSY - REAR CAPPING PANEL Row ID: ID__16NC071CP_ContPgHS;	-	1	Enquire
026	16NC233CP	ASSY - RQTR TRIM LH	16NC233CP ASSY - RQTR TRIM LH Row ID: ID__16NC233CP_ContPgHS;	-	1	Enquire
026	16NC235CP	ASSY - RQTR TRIM LH HL	16NC235CP ASSY - RQTR TRIM LH HL Row ID: ID__16NC235CP_ContPgHS;	-	1	Enquire
027	16NB694CP	ASSY RQTR SPEAKER GRILLE-LH	16NB694CP ASSY RQTR SPEAKER GRILLE-LH Row ID: ID__16NB694CP_ContPgHS;	-	1	Enquire
027	16NB006CP	ASSY RQTR SPEAKER GRILLE-LH HL	16NB006CP ASSY RQTR SPEAKER GRILLE-LH HL Row ID: ID__16NB006CP_ContPgHS;	-	1	Enquire
028	16NC234CP	ASSY - RQTR TRIM RH	16NC234CP ASSY - RQTR TRIM RH Row ID: ID__16NC234CP_ContPgHS;	-	1	Enquire
028	16NC236CP	ASSY - RQTR TRIM RH HL	16NC236CP ASSY - RQTR TRIM RH HL Row ID: ID__16NC236CP_ContPgHS;	-	1	Enquire
029	16NB695CP	ASSY RQTR SPEAKER GRILLE-RH	16NB695CP ASSY RQTR SPEAKER GRILLE-RH Row ID: ID__16NB695CP_ContPgHS;	-	1	Enquire
029	16NB007CP	ASSY RQTR SPEAKER GRILLE-RH HL	16NB007CP ASSY RQTR SPEAKER GRILLE-RH HL Row ID: ID__16NB007CP_ContPgHS;	-	1	Enquire
030	16NC074CP	REAR CABIN NVH - LH	16NC074CP REAR CABIN NVH - LH Row ID: ID__16NC074CP_ContPgHS;	-	1	Enquire
031	16NC072CP	REAR CABIN NVH - RH	16NC072CP REAR CABIN NVH - RH Row ID: ID__16NC072CP_ContPgHS;	-	1	Enquire
032	16NC055CP	ASSY BRKT-SPEAKER RR QTR-LH	16NC055CP ASSY BRKT-SPEAKER RR QTR-LH Row ID: ID__16NC055CP_ContPgHS;	-	1	Enquire
032	16NC052CP	ASSY BRKT-SPEAKER RR QTR-LH HL	16NC052CP ASSY BRKT-SPEAKER RR QTR-LH HL Row ID: ID__16NC052CP_ContPgHS;	-	1	Enquire
033	16NC056CP	ASSY BRKT-SPEAKER RR QTR-RH	16NC056CP ASSY BRKT-SPEAKER RR QTR-RH Row ID: ID__16NC056CP_ContPgHS;	-	1	Enquire
033	16NC053CP	ASSY BRKT-SPEAKER RR QTR-RH HL	16NC053CP ASSY BRKT-SPEAKER RR QTR-RH HL Row ID: ID__16NC053CP_ContPgHS;	-	1	Enquire
034	16NA061MP	ASSY PNL-ELECTRICAL COVER-HB	16NA061MP ASSY PNL-ELECTRICAL COVER-HB Row ID: ID__16NA061MP_ContPgHS;	-	2	Enquire
035	13A5855CP	FOAM BLOCK - FENDER COVER - INNER	13A5855CP FOAM BLOCK - FENDER COVER - INNER Row ID: ID__13A5855CP_ContPgHS;	-	1	Enquire
036	16NB970CP	ASSY PASSENGER FOOTREST-US	16NB970CP ASSY PASSENGER FOOTREST-US Row ID: ID__16NB970CP_ContPgHS;	-	1	Enquire
037	16NB154CP	PASSENGER FOOTREST SUPPORT-US	16NB154CP PASSENGER FOOTREST SUPPORT-US Row ID: ID__16NB154CP_ContPgHS;	-	1	Enquire
037	16NA202CP	ASSY - PASS - FOOTREST SUPPORT - LHD	16NA202CP ASSY - PASS - FOOTREST SUPPORT - LHD Row ID: ID__16NA202CP_ContPgHS;	-	1	Enquire
037	16NA639CP	ASSY-PASSENGER - FOOTREST - SUPPORT RHD	16NA639CP ASSY-PASSENGER - FOOTREST - SUPPORT RHD Row ID: ID__16NA639CP_ContPgHS;	-	1	Enquire
038	16NA685CP	ADAPTOR DRIVER FOOTREST-US	16NA685CP ADAPTOR DRIVER FOOTREST-US Row ID: ID__16NA685CP_ContPgHS;	-	1	Enquire
039	00RM006	ANIXTER RIVET - WHITE	00RM006 ANIXTER RIVET - WHITE Row ID: ID__00RM006_ContPgHS;	-	4	Enquire
040	00RX003	BOLT - M6X1X12 - HEX	00RX003 BOLT - M6X1X12 - HEX Row ID: ID__00RX003_ContPgHS;	-	4	Enquire
041	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID__00RA064_ContPgHS;	-	1	Enquire
042	00RC017	WASHER - M5X15X1.2	00RC017 WASHER - M5X15X1.2 Row ID: ID__00RC017_ContPgHS;	-	4	Enquire
043	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX Row ID: ID__00RX001_ContPgHS;	-	2	Enquire
044	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	2	Enquire
045	11N1873SP	FIR TREE - TRIM	11N1873SP FIR TREE - TRIM Row ID: ID__11N1873SP_ContPgHS;	-	4	Enquire
046	00RA342	TORX SCREW - PT5X20	00RA342 TORX SCREW - PT5X20 Row ID: ID__00RA342_ContPgHS;	-	3	Enquire
047	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6 Row ID: ID__00RC013_ContPgHS;	-	2	Enquire
048	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Row ID: ID__00RA409_ContPgHS;	-	8	Enquire
049	00RA446	Raybond - Retainer - 18464 2	00RA446 Raybond - Retainer - 18464 2 Row ID: ID__00RA446_ContPgHS;	-	2	Enquire
050	00RB229	CLIP-PNL-8X0.8-1.6X18-NYL-BLK	00RB229 CLIP-PNL-8X0.8-1.6X18-NYL-BLK Row ID: ID__00RB229_ContPgHS;	-	2	Enquire
051	11N2388CP	Clip - Raymond - 020410	11N2388CP Clip - Raymond - 020410 Row ID: ID__11N2388CP_ContPgHS;	-	1	Enquire
052	13N2697CP	Clip - Raymond - 018322	13N2697CP Clip - Raymond - 018322 Row ID: ID_CHNA0870_13N2697CP_ContPgHS;	-	8	Enquire
