40 - INTERIOR SYSTEMS - 40.12 - DOOR CASING of McLaren McLaren Super Series McLaren Artura

View All

McLaren Super Series McLaren Artura - 40 - INTERIOR SYSTEMS - 40.12 - DOOR CASING

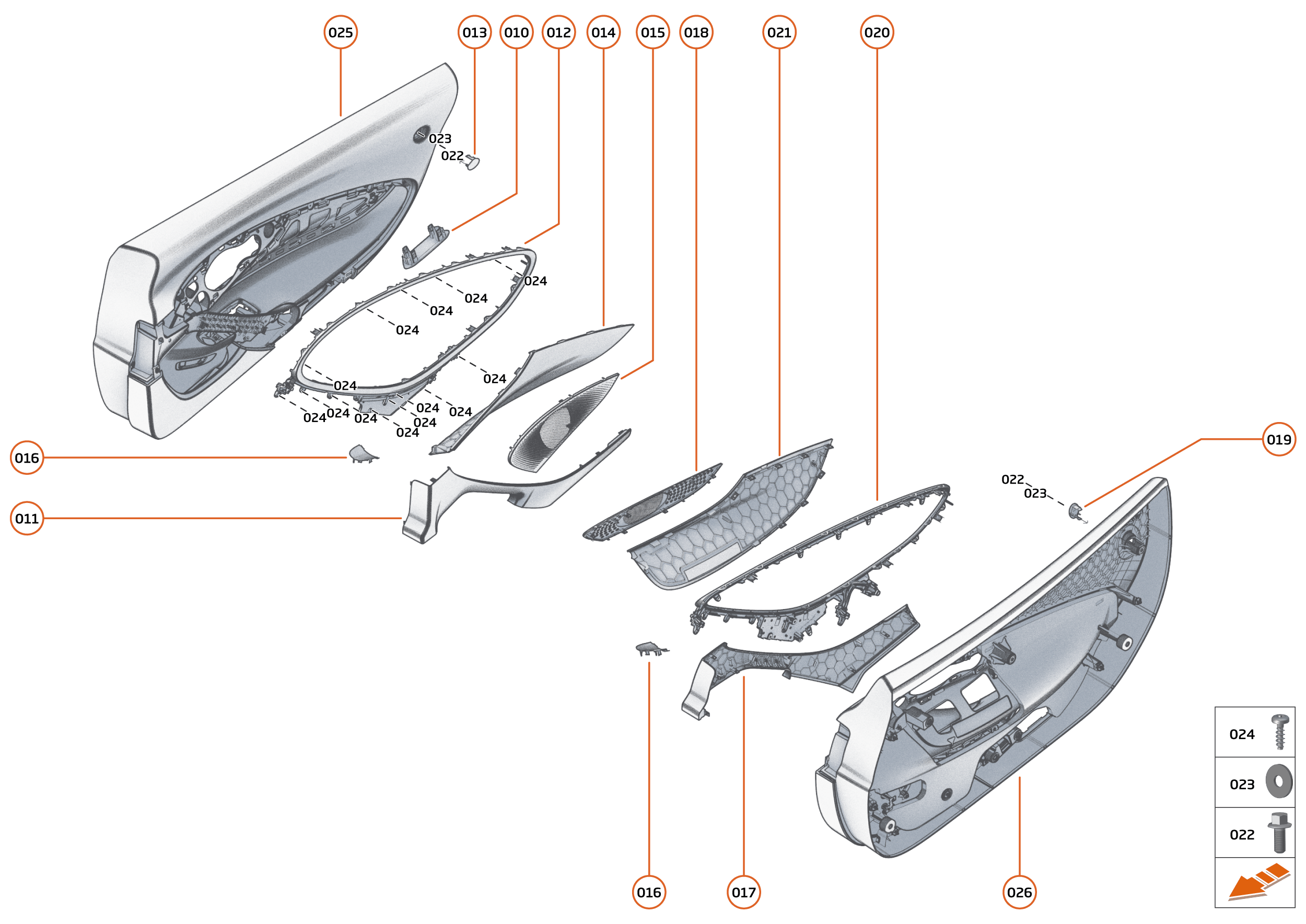

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14N1162CP	BLANK CAP - AUXILIARY CONTROL PANEL	14N1162CP BLANK CAP - AUXILIARY CONTROL PANEL Row ID: ID__14N1162CP_ContPgHS;	-	1	Enquire
012	16NC173CP	DOOR FINISHER-LIT RH	16NC173CP DOOR FINISHER-LIT RH Row ID: ID__16NC173CP_ContPgHS;	-	1	Enquire
012	16NC175CP	DOOR FINISHER RH	16NC175CP DOOR FINISHER RH Row ID: ID__16NC175CP_ContPgHS;	-	1	Enquire
013	14NA274CP	AIRBAG EMBLEM - DOOR - RH	14NA274CP AIRBAG EMBLEM - DOOR - RH Row ID: ID__14NA274CP_ContPgHS;	-	1	Enquire
015	16NC177CP	ASSY DOOR SPEAKER GRILLE RH	16NC177CP ASSY DOOR SPEAKER GRILLE RH Row ID: ID__16NC177CP_ContPgHS;	-	1	Enquire
015	16NC179CP	ASSY DOOR SPEAKER GRILLE HL RH	16NC179CP ASSY DOOR SPEAKER GRILLE HL RH Row ID: ID__16NC179CP_ContPgHS;	-	1	Enquire
018	16NC176CP	ASSY DOOR SPEAKER GRILLE LH	16NC176CP ASSY DOOR SPEAKER GRILLE LH Row ID: ID__16NC176CP_ContPgHS;	-	1	Enquire
018	16NC178CP	ASSY DOOR SPEAKER GRILLE HL LH	16NC178CP ASSY DOOR SPEAKER GRILLE HL LH Row ID: ID__16NC178CP_ContPgHS;	-	1	Enquire
019	14NA273CP	AIRBAG EMBLEM - DOOR - LH	14NA273CP AIRBAG EMBLEM - DOOR - LH Row ID: ID__14NA273CP_ContPgHS;	-	1	Enquire
020	16NC172CP	DOOR FINISHER-LIT LH	16NC172CP DOOR FINISHER-LIT LH Row ID: ID__16NC172CP_ContPgHS;	-	1	Enquire
020	16NC174CP	DOOR FINISHER LH	16NC174CP DOOR FINISHER LH Row ID: ID__16NC174CP_ContPgHS;	-	1	Enquire
022	00RA556	BOLT - HEX - FLANGED - M6X16	00RA556 BOLT - HEX - FLANGED - M6X16 Row ID: ID__00RA556_ContPgHS;	-	6	Enquire
023	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6 Row ID: ID__00RC013_ContPgHS;	-	6	Enquire
024	00RA746	SCR-PAN HD-TX-PTF-4X12-STL-81	00RA746 SCR-PAN HD-TX-PTF-4X12-STL-81 Row ID: ID__00RA746_ContPgHS;	-	28	Enquire
025	16NA610CP	ASSY DOOR CASING RH	16NA610CP ASSY DOOR CASING RH Row ID: ID__16NA610CP_ContPgHS;	-	1	Enquire
026	16NA343CP	ASSY DOOR CASING LH	16NA343CP ASSY DOOR CASING LH Row ID: ID__16NA343CP_ContPgHS;	-	1	Enquire
027	11N2396CP	J Clip - Raymond - ST4.2 - 011809	11N2396CP J Clip - Raymond - ST4.2 - 011809 Row ID: ID__11N2396CP_ContPgHS;	-	1	Enquire
