20 - Steering - 20.4 - Steering Column

McLaren GT McLaren GT

Find Your Part

McLaren GT McLaren GT - 20 - STEERING - 20.4 - STEERING COLUMN

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

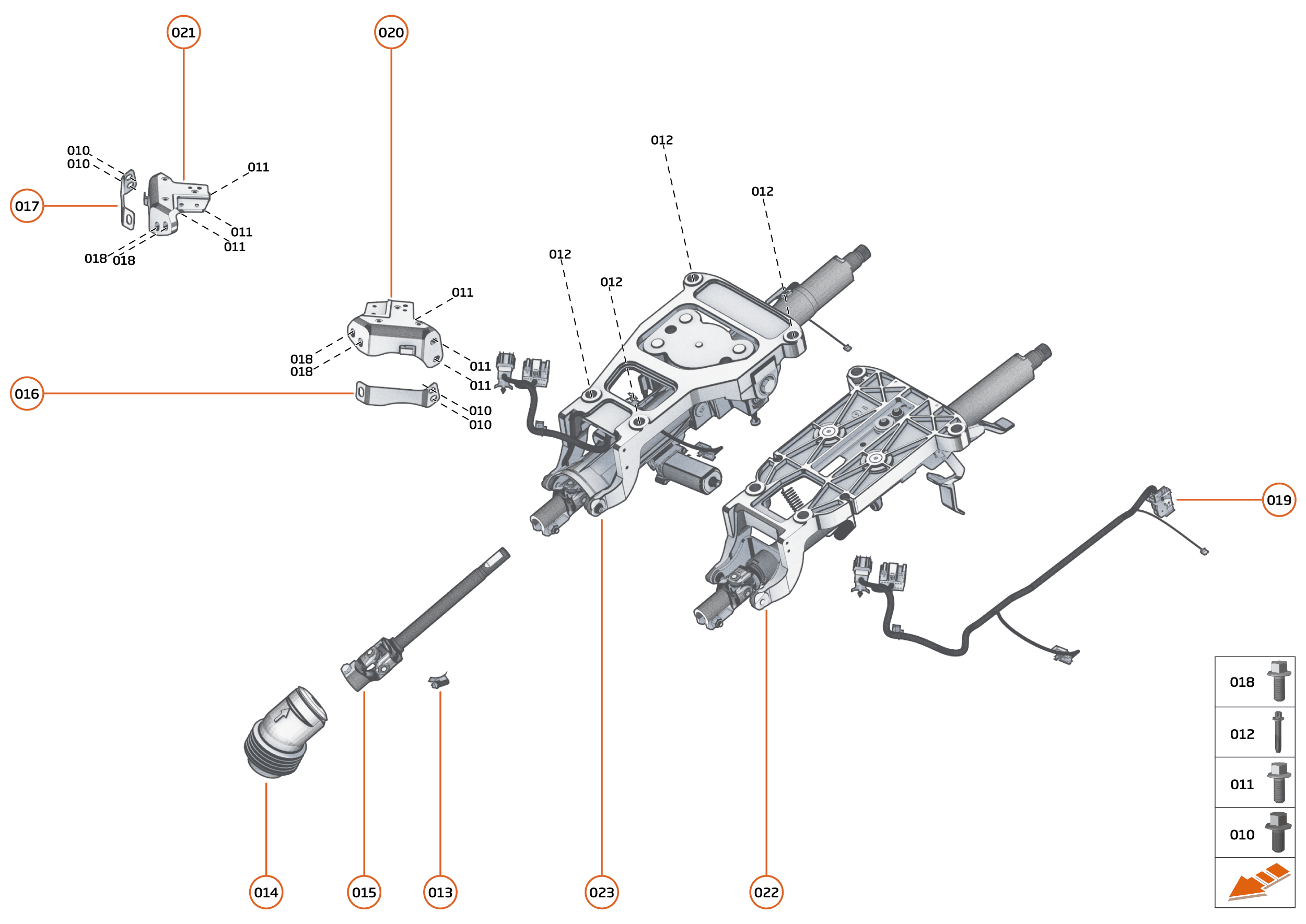

20 - STEERING - 20.4 - STEERING COLUMN of McLaren McLaren GT McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA064
BOLT - M5X12 - HEX
Row ID: ID__00RA064_ContPgHS; 		- 2 Enquire
011 00RA313
SCREW - M6X16 - HEX - SILVER
Row ID: ID__00RA313_ContPgHS; 		- 3 Enquire
012 00RA510
BOLT - TORX HEAD - FLANGE - M8X1.25X45
Row ID: ID__00RA510_ContPgHS; 		- 4 Enquire
013 00RB049
HOSE CLAMP - 40-60MM
Row ID: ID__00RB049_ContPgHS; 		- 1 Enquire
014 11D0254CP
GAITER-STEERING CO24MN
Row ID: ID__11D0254CP_ContPgHS; 		$25.37 1
015 11D0245RP
STEERING COLUMN - INTERMEDIATE - RHD - 625C - 650S - 675LT - 570S - 540C - 720S
Row ID: ID__11D0245RP_ContPgHS; 		- 1 Enquire
015 11D0244RP
STEERING COLUMN - INTERMEDIATE - LHD - 625C - 650S - 675LT - 570S - 540C - 720S
Row ID: ID__11D0244RP_ContPgHS; 		- 1 Enquire
016 14DA008CP
BRACKET - FACIA NVH SUPPORT - LHD - MANUAL STEERING COLUMN
Row ID: ID__14DA008CP_ContPgHS; 		- 1 Enquire
017 14DA009CP
FACIA NVH BRACKET 24RHD
Row ID: ID__14DA009CP_ContPgHS; 		$30.20 1
018 00RA120
SCREW - M6X25 - HEX
Row ID: ID__00RA120_ContPgHS; 		- 1 Enquire
019 11M3065CP
WIRING HARNESS - ELECTRIC STEERING COLUMN
Row ID: ID__11M3065CP_ContPgHS; 		- 1 Enquire
020 11D0192CP
BRACKET - ELECTRIC STEERING COLUMN - NVH - LH
Row ID: ID__11D0192CP_ContPgHS; 		- 1 Enquire
021 11D0193CP
BRACKET - ELECTRIC STEERING COLUMN - NVH - RH
Row ID: ID__11D0193CP_ContPgHS; 		- 1 Enquire
022 13DA039CP
STEERING COLUMN - MANUAL - UPPER
Row ID: ID__13DA039CP_ContPgHS; 		- 1 Enquire
022 13DA001CP
STEERING COLUMN - MANUAL - UPPER
Row ID: ID__13DA001CP_ContPgHS; 		- 1 Enquire
023 11D0083RP
STEERING COLUMN - UPPER - ELECTRIC - LHD
Row ID: ID__11D0083RP_ContPgHS; 		- 1 Enquire
025 11D0138RP
STEERING COLUMN - UPPER - ELECTRIC - RHD
Row ID: ID__11D0138RP_ContPgHS; 		- 1 Enquire
