20 - STEERING - 20.1 - STEERING FLUID SYSTEM of McLaren McLaren GT McLaren GT

View All

McLaren GT McLaren GT - 20 - STEERING - 20.1 - STEERING FLUID SYSTEM

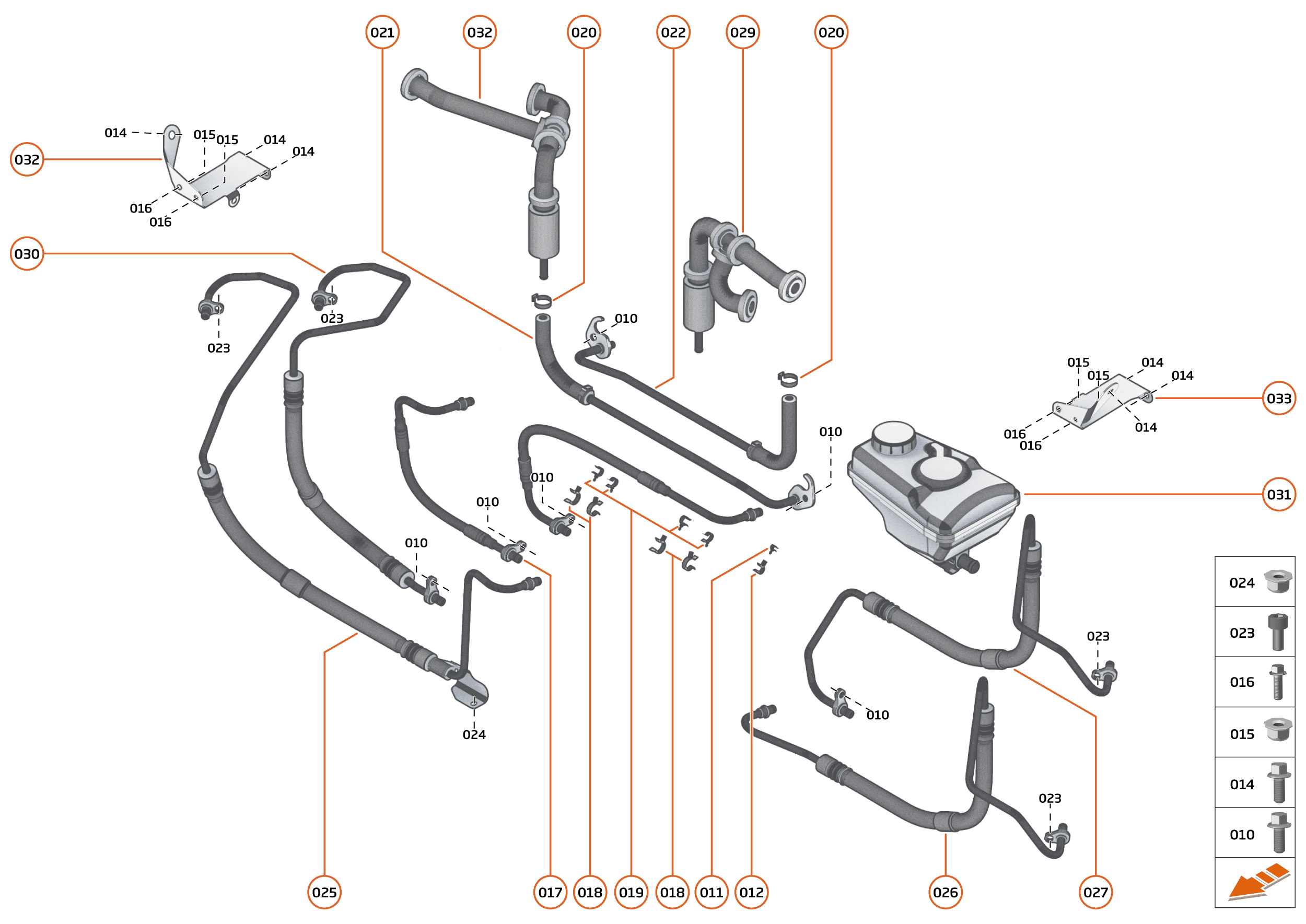

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA002	BOLT - M8X20 - HEX	00RA002 BOLT - M8X20 - HEX Row ID: ID__00RA002_ContPgHS;	-	8	Enquire
011	00RB042	SWIVEL PIPE CLIP	00RB042 SWIVEL PIPE CLIP Row ID: ID__00RB042_ContPgHS;	-	1	Enquire
012	00RB046	CLIP - 8-9MM - FEMALE	00RB046 CLIP - 8-9MM - FEMALE Row ID: ID__00RB046_ContPgHS;	-	1	Enquire
013	13D0066CP	HOSE - NOSE LIFT VALVE BLOCK - STEERING RACK - LHD	13D0066CP HOSE - NOSE LIFT VALVE BLOCK - STEERING RACK - LHD Row ID: ID__13D0066CP_ContPgHS;	-	1	Enquire
014	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX Row ID: ID__00RA083_ContPgHS;	-	3	Enquire
015	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	4	Enquire
016	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID__00RA120_ContPgHS;	-	1	Enquire
017	13D0067CP	HOSE - NOSE LIFT VALVE BLOCK - STEERING RACK - RHD	13D0067CP HOSE - NOSE LIFT VALVE BLOCK - STEERING RACK - RHD Row ID: ID__13D0067CP_ContPgHS;	-	1	Enquire
018	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE Row ID: ID__00RB032_ContPgHS;	-	1	Enquire
019	00RB045	CLIP - 9.5-10MM - MALE	00RB045 CLIP - 9.5-10MM - MALE Row ID: ID__00RB045_ContPgHS;	-	1	Enquire
020	00RB110	OETIKER CLIP - 19.2	00RB110 OETIKER CLIP - 19.2 Row ID: ID__00RB110_ContPgHS;	-	1	Enquire
021	13DA004CP	HOSE - FILTER TO STEERING RACK - LHD	13DA004CP HOSE - FILTER TO STEERING RACK - LHD Row ID: ID__13DA004CP_ContPgHS;	-	1	Enquire
022	13DA006CP	HOSE - FILTER TO STEERING RACK - RHD	13DA006CP HOSE - FILTER TO STEERING RACK - RHD Row ID: ID__13DA006CP_ContPgHS;	-	1	Enquire
023	00RA540	SCREW - CAP HEAD - M8X1.25X20-10.9-72	00RA540 SCREW - CAP HEAD - M8X1.25X20-10.9-72 Row ID: ID__00RA540_ContPgHS;	-	1	Enquire
024	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED Row ID: ID__00RA555_ContPgHS;	-	1	Enquire
025	13DA012CP	HOSE - PAS PUMP - STEERING RACK - LHD	13DA012CP HOSE - PAS PUMP - STEERING RACK - LHD Row ID: ID__13DA012CP_ContPgHS;	-	1	Enquire
026	13DA015CP	HOSE - PAS PUMP - STEERING RACK - RHD	13DA015CP HOSE - PAS PUMP - STEERING RACK - RHD Row ID: ID__13DA015CP_ContPgHS;	-	1	Enquire
027	13DA016CP	HOSE - NOSE LIFT VALVE BLOCK - STEERING PUMP - RHD	13DA016CP HOSE - NOSE LIFT VALVE BLOCK - STEERING PUMP - RHD Row ID: ID__13DA016CP_ContPgHS;	-	1	Enquire
028	14D0043CP	HOSE - PAS RESERVOIR - FILTER - EHPAS - LHD	14D0043CP HOSE - PAS RESERVOIR - FILTER - EHPAS - LHD Row ID: ID__14D0043CP_ContPgHS;	-	1	Enquire
028	14DA044CP	HOSE - PAS RESERVOIR - FILTER - EHPAS - LHD	14DA044CP HOSE - PAS RESERVOIR - FILTER - EHPAS - LHD Row ID: ID__14DA044CP_ContPgHS;	-	1	Enquire
029	14D0038CP	HOSE - PAS RESERVOIR - FILTER - EHPAS - RHD	14D0038CP HOSE - PAS RESERVOIR - FILTER - EHPAS - RHD Row ID: ID__14D0038CP_ContPgHS;	-	1	Enquire
029	14DA045CP	HOSE - PAS RESERVOIR - FILTER - EHPAS - RHD	14DA045CP HOSE - PAS RESERVOIR - FILTER - EHPAS - RHD Row ID: ID__14DA045CP_ContPgHS;	-	1	Enquire
030	13DA011CP	HOSE - NOSE LIFT VALVE BLOCK - STEERING PUMP - LHD	13DA011CP HOSE - NOSE LIFT VALVE BLOCK - STEERING PUMP - LHD Row ID: ID__13DA011CP_ContPgHS;	-	1	Enquire
031	11D0117CP	RESERVOIR - PAS FLUID	11D0117CP RESERVOIR - PAS FLUID Row ID: ID__11D0117CP_ContPgHS;	-	1	Enquire
032	14DA021CP	BRACKET - PAS FLUID RESERVOIR - LHD	14DA021CP BRACKET - PAS FLUID RESERVOIR - LHD Row ID: ID__14DA021CP_ContPgHS;	-	1	Enquire
033	14DA022CP	BRACKET - PAS FLUID RESERVOIR - RHD	14DA022CP BRACKET - PAS FLUID RESERVOIR - RHD Row ID: ID__14DA022CP_ContPgHS;	-	1	Enquire
