11 - EXTERIOR ORNAMENTATION - 11.5 - FILLER BOWLS AND COVERS of McLaren McLaren McLaren GT

View All

McLaren McLaren GT - 11 - EXTERIOR ORNAMENTATION - 11.5 - FILLER BOWLS AND COVERS

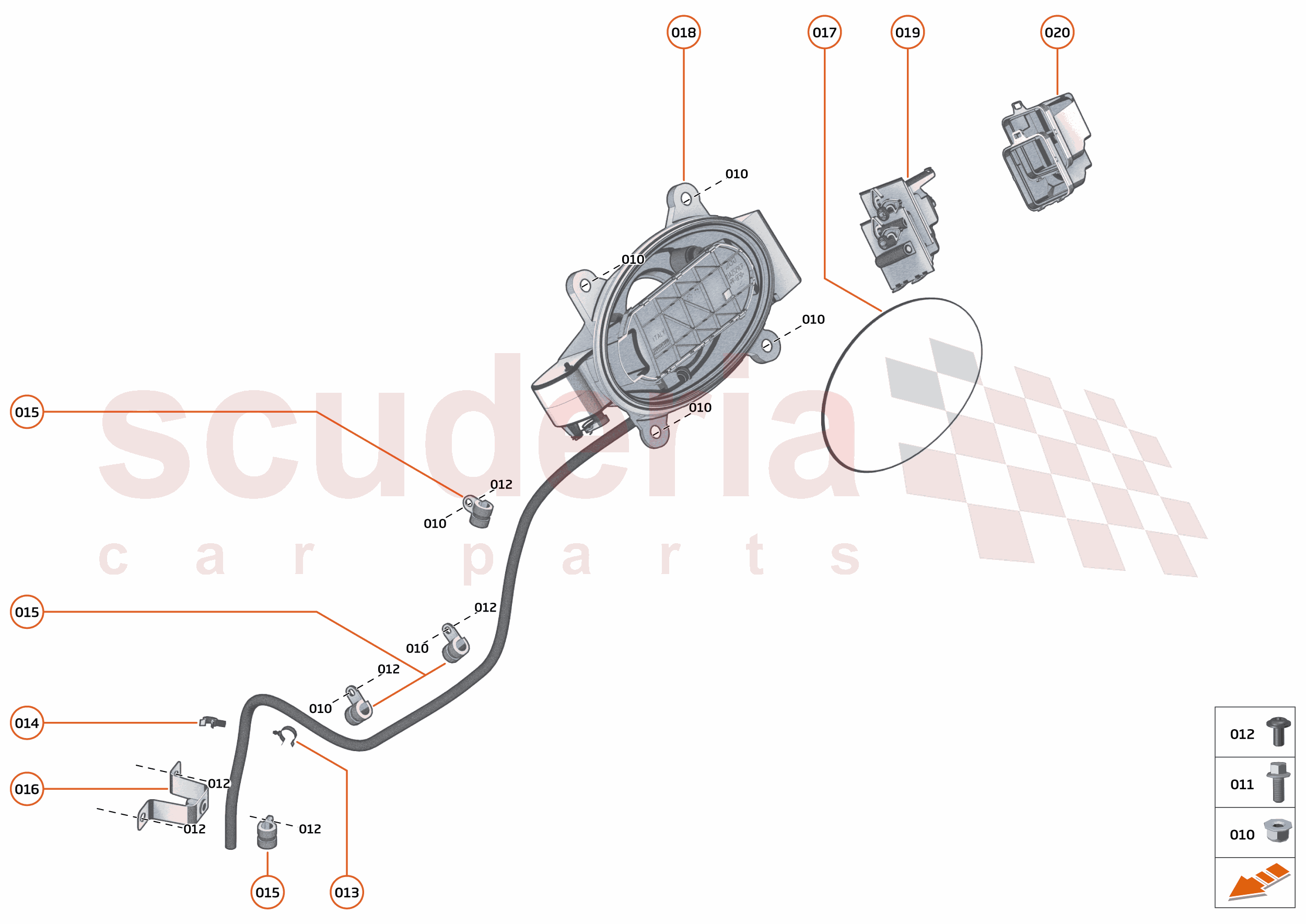

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	00RA055	NUT - M6 - LOCKING - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA313	Screw - M6x16 - Hex - Silver	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB018	CLIP - 11-13MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB019	CLIP - 90DEG - FEMALE - 10-12MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB027	P-CLIP - DIAMETER 13 - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A4674CP	BRACKET - FUEL FILLER - DRAIN HOSE	$24.43	To Order

Photo	Part No	Description	Price (each)	Stock
	22AA481GP	FUEL FILLER FLAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14AB389CP	ASSY - FUEL FILLER BOWL	$408.75	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3932CP	ACTUATOR - FUEL FILLER	$79.95	To Order

Photo	Part No	Description	Price (each)	Stock
	13A3933CP	HEATSHIELD - ACTUATOR HELLA	$55.28	To Order
	13A5208CP	HEATSHIELD - ACTUATOR HELLA	$44.52	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS; Resolution: Available;	-	4	Enquire
011	00RA313	Screw - M6x16 - Hex - Silver	00RA313 Screw - M6x16 - Hex - Silver Row ID: ID__00RA313_ContPgHS; Resolution: Available;	-	3	Enquire
012	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Row ID: ID__00RA409_ContPgHS; Resolution: Available;	-	2	Enquire
013	00RB018	CLIP - 11-13MM - MALE	00RB018 CLIP - 11-13MM - MALE Row ID: ID__00RB018_ContPgHS; Resolution: Available;	-	1	Enquire
014	00RB019	CLIP - 90DEG - FEMALE - 10-12MM	00RB019 CLIP - 90DEG - FEMALE - 10-12MM Row ID: ID__00RB019_ContPgHS; Resolution: Available;	-	1	Enquire
015	00RB027	P-CLIP - DIAMETER 13 - M6	00RB027 P-CLIP - DIAMETER 13 - M6 Row ID: ID__00RB027_ContPgHS; Resolution: Available;	-	3	Enquire
016	14A4674CP	BRACKET - FUEL FILLER - DRAIN HOSE	14A4674CP BRACKET - FUEL FILLER - DRAIN HOSE Row ID: ID__14A4674CP_ContPgHS; Resolution: Available;	$24.43	1
017	22AA481GP	FUEL FILLER FLAP	22AA481GP FUEL FILLER FLAP Row ID: ID__22AA481GP_ContPgHS; Resolution: Available;	-	1	Enquire
018	14AB389CP	ASSY - FUEL FILLER BOWL	14AB389CP ASSY - FUEL FILLER BOWL Row ID: ID__14AB389CP_ContPgHS; Resolution: Available;	$408.75	1
019	13A3932CP	ACTUATOR - FUEL FILLER	13A3932CP ACTUATOR - FUEL FILLER Row ID: ID__13A3932CP_ContPgHS; Resolution: Available;	$79.95	1
020	13A3933CP	HEATSHIELD - ACTUATOR HELLA	13A3933CP HEATSHIELD - ACTUATOR HELLA Row ID: ID__13A3933CP_ContPgHS; Resolution: Available;	$55.28	1
020	13A5208CP	HEATSHIELD - ACTUATOR HELLA	13A5208CP HEATSHIELD - ACTUATOR HELLA Row ID: ID__13A5208CP_ContPgHS; Resolution: Available;	$44.52	1
