10 - Closures_Ancillaries - 10.5 - Side Mirrors

McLaren McLaren GT

Find Your Part

McLaren McLaren GT - 10 - CLOSURES_ANCILLARIES - 10.5 - SIDE MIRRORS

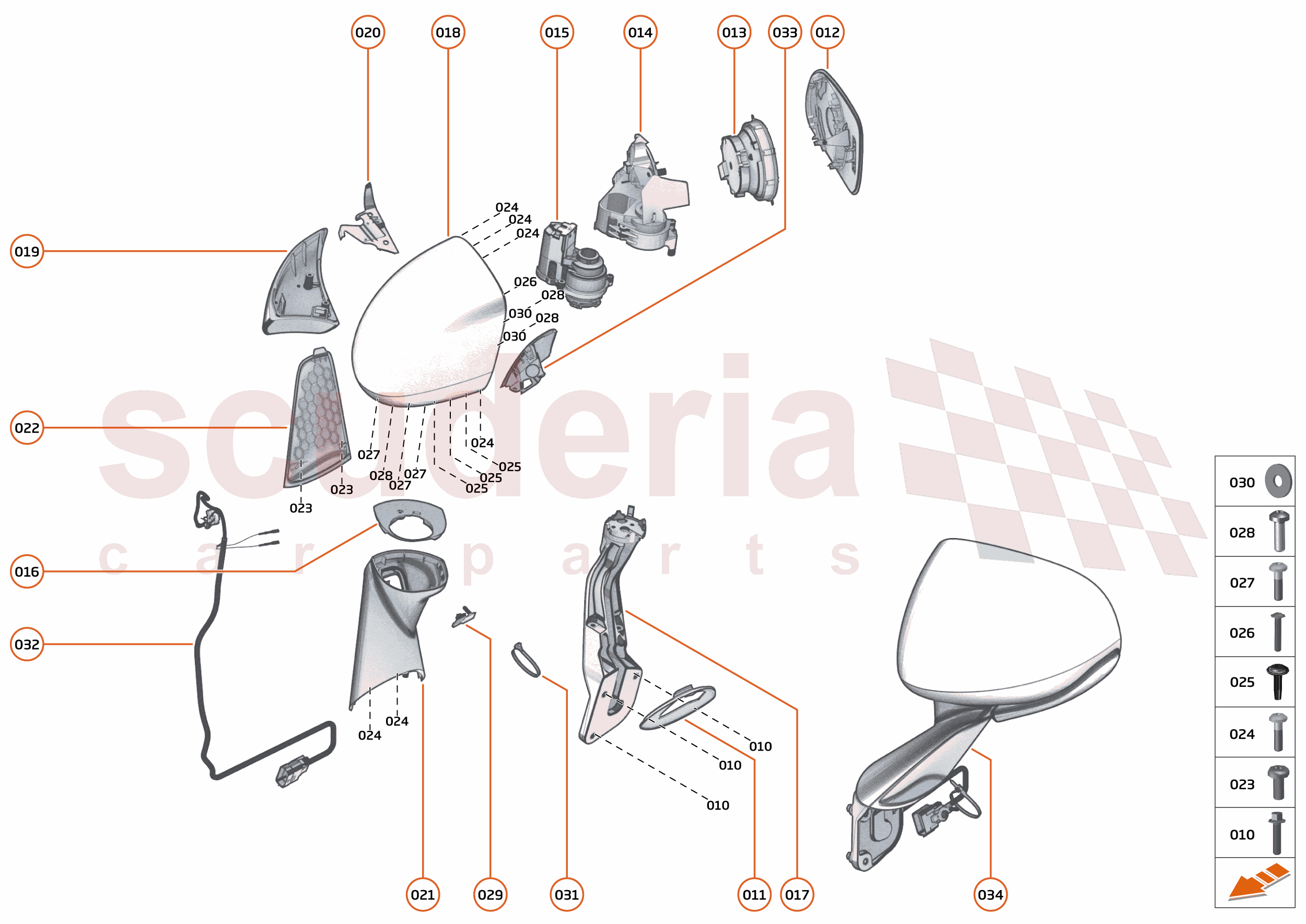

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA313 Screw - M6x16 - Hex - Silver Enquire To Order
Photo Part No Description Price (each) Stock
22AA721GP SEAL DOOR MIRROR GASKET LOWER RH $14.98 To Order
22AA720GP SEAL DOOR MIRROR GASKET LOWER LH $14.98 To Order
13A4870CP SEAL - DOOR MIRROR - GASKET - LOWER-RH $27.73 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11A8422CP MIRROR GLASS ASSEMBLY - CONVEX - RH $393.73 To Order
11A8426CP MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - CONVEX - RH $310.64 To Order
11A8430CP MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - RH Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11A8446CP ACTUATOR - DOOR MIRROR GLASS $123.42 To Order
Photo Part No Description Price (each) Stock
11A8453CP FRAME - DOOR MIRROR GLASS - RH $89.77 To Order
11A8454CP FRAME - DOOR MIRROR GLASS - LH $89.77 To Order
Photo Part No Description Price (each) Stock
11A8455CP MOTOR - DOOR MIRROR GLASS - RH $119.41 To Order
11A8456CP MOTOR - DOOR MIRROR GLASS - LH $119.41 To Order
Photo Part No Description Price (each) Stock
13A4871CP Seal - Door Mirror - Mount - RH $35.68 To Order
13A4869CP SEAL - DOOR MIRROR - MOUNT - LH $35.68 To Order
Photo Part No Description Price (each) Stock
13A4911CP Internal Arm - Door Mirror - RH $153.07 To Order
13A4912CP Internal Arm - Door Mirror - LH $153.07 To Order
Photo Part No Description Price (each) Stock
14A3463CP SCALP-RH-PAINTED-CCC $81.63 To Order
14A3464CP SCALP-LH-PAINTED-CCC $81.63 To Order
14AB091CP SCALP - DOOR MIRROR - CARBON - LH Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11A8416CP SCALP - LOWER - UNPAINTED - RH $52.61 To Order
14A4329CP SCALP - DOOR MIRROR - LOWER - RH $74.87 To Order
14A4331CP SCALP - DOOR MIRROR - LOWER - LH $74.87 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
14AA673CP SCALP - REINFORCEMENT - RH $40.90 To Order
14AA715CP SCALP - REINFORCEMENT - LH $42.94 To Order
Photo Part No Description Price (each) Stock
22AA718GP MLDG BASE DOOR MIRROR COVER UPR RH $33.38 To Order
22AA717GP MLDG BASE DOOR MIRROR COVER UPR LH $33.38 To Order
13A4873CP Base Cover - Door Mirror - Upper - RH $44.17 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
22AA723GP MLDG BASE DOOR MIRROR COVER LWR RH $21.68 To Order
22AA722GP MLDG BASE DOOR MIRROR COVER LWR LH $21.68 To Order
13A2055CP Cover - Door Mirror Base - Lower - RH $31.27 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
00RA140 SCREW - 3X8 - TORX Enquire To Order
Photo Part No Description Price (each) Stock
00RA363 SCREW - TORX - 4X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RA374 SCREW - TORX - 3.5X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RA442 SCREW - TORX - 3X38 Enquire To Order
Photo Part No Description Price (each) Stock
00RA491 SCREW - TORX - 3X20 Enquire To Order
Photo Part No Description Price (each) Stock
00RA599 SCREW - PAN HEAD - TORX - M3.5X0.6X12-10.9-84 Enquire To Order
Photo Part No Description Price (each) Stock
00RB059 CLIP CONNECTOR - TRW Enquire To Order
Photo Part No Description Price (each) Stock
00RC027 WASHER - M4 FORM C - LARGE Enquire To Order
Photo Part No Description Price (each) Stock
00RL023 CABLE TIE - HIGH TEMP Enquire To Order
Photo Part No Description Price (each) Stock
14A1427CP HARNESS WITH CONNECTOR - DR MIR RH $82.17 To Order
14A1450CP HARNESS WITH CONNECTOR - DR MIR LH $82.17 To Order
Photo Part No Description Price (each) Stock
22AA905GP HARNESS WITH CONNECTOR - DR MIR RH $81.23 To Order
22AA904GP HARNESS WITH CONNECTOR - DR MIR LH $81.23 To Order
Photo Part No Description Price (each) Stock
13AA570CP DOOR MIRROR - COMPLETE - CARBON - CHINAONLY-LH $4,108.14 To Order
13AA564CP DOOR MIRROR - COMPLETE - CARBON - CHINAONLY-RH Enquire To Order
View All
10 - CLOSURES_ANCILLARIES - 10.5 - SIDE MIRRORS of McLaren McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 22AA848GP
ANTI SQUEAK TAPE 0.5MM 120X3
Row ID: ID__22AA848GP_ContPgHS; Resolution: Available; 		- 1 Enquire
000 22AA847GP
ANTI SQUEAK TAPE 0.5MM 100X3
Row ID: ID__22AA847GP_ContPgHS; Resolution: Available; 		- 1 Enquire
000 00RA525
SCREW - POZI - 2.5X8MM
Row ID: ID__00RA525_ContPgHS; Resolution: Available; 		- 2 Enquire
010 00RA313
Screw - M6x16 - Hex - Silver
Row ID: ID__00RA313_ContPgHS; Resolution: Available; 		- 3 Enquire
011 22AA721GP
SEAL DOOR MIRROR GASKET LOWER RH
Row ID: ID__22AA721GP_ContPgHS; Resolution: Available; 		$14.98 1
011 22AA720GP
SEAL DOOR MIRROR GASKET LOWER LH
Row ID: ID__22AA720GP_ContPgHS; Resolution: Available; 		$14.98 1
011 13A4870CP
SEAL - DOOR MIRROR - GASKET - LOWER-RH
Row ID: ID__13A4870CP_ContPgHS; Resolution: Available; 		$27.73 1
011 13A4868CP
SEAL - DOOR MIRROR - GASKET - LOWER-LH
Row ID: ID__13A4868CP_ContPgHS; Resolution: Available; 		$27.73 1
012 11A8422CP
MIRROR GLASS ASSEMBLY - CONVEX - RH
Row ID: ID__11A8422CP_ContPgHS; Resolution: Available; 		$393.73 1
012 11A8426CP
MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - CONVEX - RH
Row ID: ID__11A8426CP_ContPgHS; Resolution: Available; 		$310.64 1
012 11A8430CP
MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - RH
Row ID: ID__11A8430CP_ContPgHS; Resolution: Available; 		- 1 Enquire
012 11A8434CP
MIRROR GLASS ASSEMBLY - CONVEX - LH
Row ID: ID__11A8434CP_ContPgHS; Resolution: Available; 		$393.73 1
012 11A8438CP
MIRROR GLASS ASSEMBLY - NORTH AMERICAN SCRIPT - FLAT - LH
Row ID: ID__11A8438CP_ContPgHS; Resolution: Available; 		$351.17 1
012 11A8442CP
MIRROR GLASS ASSEMBLY - SAUDI ARABIAN SCRIPT - CONVEX - LH
Row ID: ID__11A8442CP_ContPgHS; Resolution: Available; 		- 1 Enquire
013 11A8446CP
ACTUATOR - DOOR MIRROR GLASS
Row ID: ID__11A8446CP_ContPgHS; Resolution: Available; 		$123.42 1
014 11A8453CP
FRAME - DOOR MIRROR GLASS - RH
Row ID: ID__11A8453CP_ContPgHS; Resolution: Available; 		$89.77 1
014 11A8454CP
FRAME - DOOR MIRROR GLASS - LH
Row ID: ID__11A8454CP_ContPgHS; Resolution: Available; 		$89.77 1
015 11A8455CP
MOTOR - DOOR MIRROR GLASS - RH
Row ID: ID__11A8455CP_ContPgHS; Resolution: Available; 		$119.41 1
015 11A8456CP
MOTOR - DOOR MIRROR GLASS - LH
Row ID: ID__11A8456CP_ContPgHS; Resolution: Available; 		$119.41 1
016 13A4871CP
Seal - Door Mirror - Mount - RH
Row ID: ID__13A4871CP_ContPgHS; Resolution: Available; 		$35.68 1
016 13A4869CP
SEAL - DOOR MIRROR - MOUNT - LH
Row ID: ID__13A4869CP_ContPgHS; Resolution: Available; 		$35.68 1
017 13A4911CP
Internal Arm - Door Mirror - RH
Row ID: ID__13A4911CP_ContPgHS; Resolution: Available; 		$153.07 1
017 13A4912CP
Internal Arm - Door Mirror - LH
Row ID: ID__13A4912CP_ContPgHS; Resolution: Available; 		$153.07 1
018 14A3463CP
SCALP-RH-PAINTED-CCC
Row ID: ID__14A3463CP_ContPgHS; Resolution: Available; 		$81.63 1
018 14A3464CP
SCALP-LH-PAINTED-CCC
Row ID: ID__14A3464CP_ContPgHS; Resolution: Available; 		$81.63 1
018 14AB091CP
SCALP - DOOR MIRROR - CARBON - LH
Row ID: ID__14AB091CP_ContPgHS; 		- 1 Enquire
018 14AB092CP
SCALP - DOOR MIRROR - CARBON - RH
Row ID: ID__14AB092CP_ContPgHS; 		- 1 Enquire
018 22AA046MP
SCALP RH BLK
Row ID: ID__22AA046MP_ContPgHS; Resolution: Available; 		$400.08 1
018 22AA048MP
SCALP LH BLK
Row ID: ID__22AA048MP_ContPgHS; Resolution: Available; 		$490.78 1
019 11A8416CP
SCALP - LOWER - UNPAINTED - RH
Row ID: ID__11A8416CP_ContPgHS; Resolution: Available; 		$52.61 1
019 14A4329CP
SCALP - DOOR MIRROR - LOWER - RH
Row ID: ID__14A4329CP_ContPgHS; Resolution: Available; 		$74.87 1
019 14A4331CP
SCALP - DOOR MIRROR - LOWER - LH
Row ID: ID__14A4331CP_ContPgHS; Resolution: Available; 		$74.87 1
019 11A8417CP
SCALP - LOWER - UNPAINTED - LH
Row ID: ID__11A8417CP_ContPgHS; Resolution: Available; 		$52.61 1
020 14AA673CP
SCALP - REINFORCEMENT - RH
Row ID: ID__14AA673CP_ContPgHS; Resolution: Available; 		$40.90 1
020 14AA715CP
SCALP - REINFORCEMENT - LH
Row ID: ID__14AA715CP_ContPgHS; Resolution: Available; 		$42.94 1
021 22AA718GP
MLDG BASE DOOR MIRROR COVER UPR RH
Row ID: ID__22AA718GP_ContPgHS; Resolution: Available; 		$33.38 1
021 22AA717GP
MLDG BASE DOOR MIRROR COVER UPR LH
Row ID: ID__22AA717GP_ContPgHS; Resolution: Available; 		$33.38 1
021 13A4873CP
Base Cover - Door Mirror - Upper - RH
Row ID: ID__13A4873CP_ContPgHS; Resolution: Available; 		$44.17 1
021 13A4872CP
Base Cover - Door Mirror - Upper - LH
Row ID: ID__13A4872CP_ContPgHS; Resolution: Available; 		$44.17 1
022 22AA723GP
MLDG BASE DOOR MIRROR COVER LWR RH
Row ID: ID__22AA723GP_ContPgHS; Resolution: Available; 		$21.68 1
022 22AA722GP
MLDG BASE DOOR MIRROR COVER LWR LH
Row ID: ID__22AA722GP_ContPgHS; Resolution: Available; 		$21.68 1
022 13A2055CP
Cover - Door Mirror Base - Lower - RH
Row ID: ID__13A2055CP_ContPgHS; Resolution: Available; 		$31.27 1
022 13A2049CP
Cover - Door Mirror Base - Lower - LH
Row ID: ID__13A2049CP_ContPgHS; Resolution: Available; 		$31.27 1
023 00RA140
SCREW - 3X8 - TORX
Row ID: ID__00RA140_ContPgHS; Resolution: Available; 		- 2 Enquire
024 00RA363
SCREW - TORX - 4X12
Row ID: ID__00RA363_ContPgHS; Resolution: Available; 		- 6 Enquire
025 00RA374
SCREW - TORX - 3.5X12
Row ID: ID__00RA374_ContPgHS; Resolution: Available; 		- 3 Enquire
026 00RA442
SCREW - TORX - 3X38
Row ID: ID__00RA442_ContPgHS; Resolution: Available; 		- 1 Enquire
027 00RA491
SCREW - TORX - 3X20
Row ID: ID__00RA491_ContPgHS; Resolution: Available; 		- 3 Enquire
028 00RA599
SCREW - PAN HEAD - TORX - M3.5X0.6X12-10.9-84
Row ID: ID__00RA599_ContPgHS; Resolution: Available; 		- 3 Enquire
029 00RB059
CLIP CONNECTOR - TRW
Row ID: ID__00RB059_ContPgHS; Resolution: Available; 		- 1 Enquire
030 00RC027
WASHER - M4 FORM C - LARGE
Row ID: ID__00RC027_ContPgHS; Resolution: Available; 		- 2 Enquire
031 00RL023
CABLE TIE - HIGH TEMP
Row ID: ID__00RL023_ContPgHS; Resolution: Available; 		- 1 Enquire
032 14A1427CP
HARNESS WITH CONNECTOR - DR MIR RH
Row ID: ID__14A1427CP_ContPgHS; Resolution: Available; 		$82.17 1
032 14A1450CP
HARNESS WITH CONNECTOR - DR MIR LH
Row ID: ID__14A1450CP_ContPgHS; Resolution: Available; 		$82.17 1
033 22AA905GP
HARNESS WITH CONNECTOR - DR MIR RH
Row ID: ID__22AA905GP_ContPgHS; Resolution: Available; 		$81.23 1
033 22AA904GP
HARNESS WITH CONNECTOR - DR MIR LH
Row ID: ID__22AA904GP_ContPgHS; Resolution: Available; 		$81.23 1
034 13AA570CP
DOOR MIRROR - COMPLETE - CARBON - CHINAONLY-LH
Row ID: ID__13AA570CP_ContPgHS; Resolution: Available; 		$4,108.14 1
034 13AA564CP
DOOR MIRROR - COMPLETE - CARBON - CHINAONLY-RH
Row ID: ID__13AA564CP_ContPgHS; Resolution: Available; 		- 1 Enquire

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
