6 - Panels - 6.2 - Mid Panels

McLaren McLaren GT

Find Your Part

McLaren McLaren GT - 6 - PANELS - 6.2 - MID PANELS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14AA646CP FINISHER - UPPER - AIR EVACUATION $34.70 To Order
Photo Part No Description Price (each) Stock
22AD068GP AIR EVACUATION VENT - INC GASKET $50.29 To Order
Photo Part No Description Price (each) Stock
14A1844CP DUCT CABIN AIR EVACUATION $48.30 To Order
Photo Part No Description Price (each) Stock
22AA657GP PNL WHL ARCH LINER COVER RH Enquire To Order
Photo Part No Description Price (each) Stock
22AA653GP PNL WHL ARCH LINER COVER LH Enquire To Order
Photo Part No Description Price (each) Stock
00RB183 CLIP - U-NUT - M6 Enquire To Order
Photo Part No Description Price (each) Stock
00RA305 SCREW - M6X25 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
11A4758CP BLACK DECAL - BODYSIDE REAR LOWER $14.76 To Order
Photo Part No Description Price (each) Stock
22AD724GP Capping Panel - Cantrail - LH - GT $918.11 To Order
Photo Part No Description Price (each) Stock
13A4063CP Bracket - Cantrail to Door Hinge - LH $19.34 To Order
Photo Part No Description Price (each) Stock
13A4066CP Bracket - Cantrail to Door Hinge - RH $19.34 To Order
Photo Part No Description Price (each) Stock
00RC064 WASHER - M6X18X1.6 - BLACK Enquire To Order
Photo Part No Description Price (each) Stock
00RB185 Clip - Cantrail Capping Panel Enquire To Order
Photo Part No Description Price (each) Stock
13A5576CP Gasket - Service Panel - Door Latch - RH $19.02 To Order
Photo Part No Description Price (each) Stock
13A5575CP Service Panel - Door Latch - RH $43.32 To Order
Photo Part No Description Price (each) Stock
13A5573CP Gasket - Service Panel - Door Latch - LH $19.02 To Order
Photo Part No Description Price (each) Stock
13A5572CP Service Panel - Door Latch - LH $43.32 To Order
Photo Part No Description Price (each) Stock
00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Enquire To Order
Photo Part No Description Price (each) Stock
13A3856CP Floor Trim - RH $203.03 To Order
Photo Part No Description Price (each) Stock
13A3855CP Floor Trim - LH $203.03 To Order
Photo Part No Description Price (each) Stock
00RC043 WASHER - M6XOD25 Enquire To Order
Photo Part No Description Price (each) Stock
00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Enquire To Order
Photo Part No Description Price (each) Stock
11A0540CP COVER - B POST - LATCH - RH $53.05 To Order
Photo Part No Description Price (each) Stock
11A0541CP COVER - B POST - LATCH - LH $53.05 To Order
Photo Part No Description Price (each) Stock
22AD728GP Capping Panel - Cantrail - RH - GT $918.11 To Order
Photo Part No Description Price (each) Stock
13A5566CP BAFFLE MOULDING - B-POST - LH Enquire To Order
Photo Part No Description Price (each) Stock
13A5568CP BAFFLE MOULDING - B-POST - RH Enquire To Order
Photo Part No Description Price (each) Stock
22AA078GP ASSY PNL DOP LH GT Enquire To Order
Photo Part No Description Price (each) Stock
22AA084GP ASSY PNL DOP RH GT Enquire To Order
View All

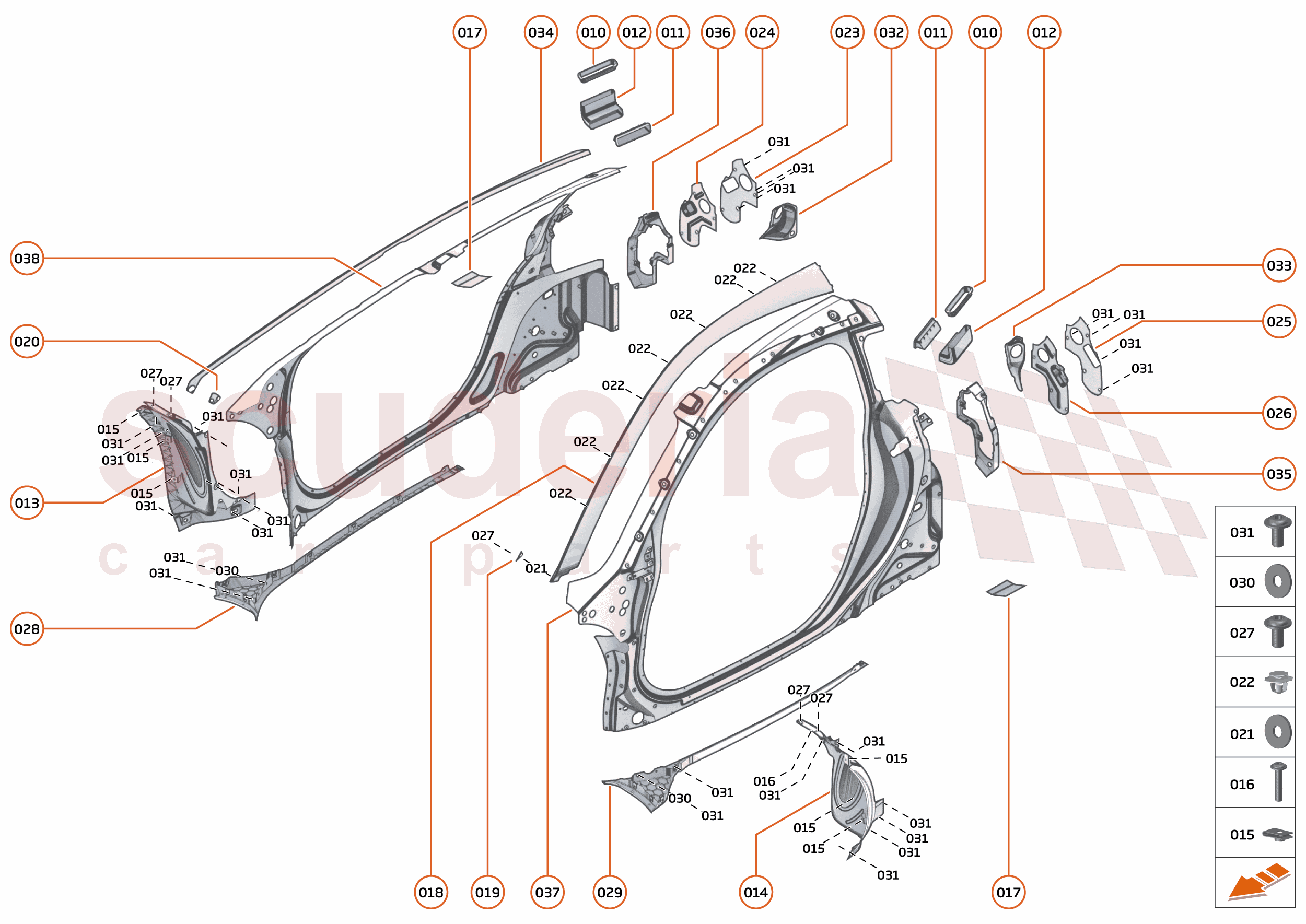

6 - PANELS - 6.2 - MID PANELS of McLaren McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 00RA289
BOLT - BUTTON - FLANGE - M8X35-10.9
Row ID: ID__00RA289_ContPgHS; Resolution: Available; 		- 1 Enquire
000 00RA242
STUD - M8X1.25X35
Row ID: ID__00RA242_ContPgHS; Resolution: Available; 		- 6 Enquire
000 00RA056
NUT - M8-8 - LOCK HEX
Row ID: ID__00RA056_ContPgHS; Resolution: Available; 		- 6 Enquire
000 13A6134CP
NVH - Wheel Arch Cover Panel to DOP - Lower
Row ID: ID__13A6134CP_ContPgHS; Resolution: Available; 		$5.66 1
000 13A6133CP
NVH - Wheel Arch Cover Panel to DOP - Upper
Row ID: ID__13A6133CP_ContPgHS; Resolution: Available; 		$9.66 1
000 00RA392
BOLT - HEX HEAD - TUFLOK - M6X20-8.8
Row ID: ID__00RA392_ContPgHS; Resolution: Available; 		- 2 Enquire
000 13A7048GP
FOAM - CANTRAIL SEAL CARRIER - GT
Row ID: ID__13A7048GP_ContPgHS; Resolution: Available; 		$11.66 1
000 11A7484CP
PERMANENT SEALING TAPE
Row ID: ID__11A7484CP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 14AA646CP
FINISHER - UPPER - AIR EVACUATION
Row ID: ID__14AA646CP_ContPgHS; Resolution: Available; 		$34.70 1
011 22AD068GP
AIR EVACUATION VENT - INC GASKET
Row ID: ID__22AD068GP_ContPgHS; Resolution: Available; 		$50.29 1
012 14A1844CP
DUCT CABIN AIR EVACUATION
Row ID: ID__14A1844CP_ContPgHS; Resolution: Available; 		$48.30 1
013 22AA657GP
PNL WHL ARCH LINER COVER RH
Row ID: ID__22AA657GP_ContPgHS; Resolution: Available; 		- 1 Enquire
014 22AA653GP
PNL WHL ARCH LINER COVER LH
Row ID: ID__22AA653GP_ContPgHS; Resolution: Available; 		- 1 Enquire
015 00RB183
CLIP - U-NUT - M6
Row ID: ID__00RB183_ContPgHS; Resolution: Available; 		- 4 Enquire
016 00RA305
SCREW - M6X25 - BUTTON
Row ID: ID__00RA305_ContPgHS; Resolution: Available; 		- 1 Enquire
017 11A4758CP
BLACK DECAL - BODYSIDE REAR LOWER
Row ID: ID__11A4758CP_ContPgHS; Resolution: Available; 		$14.76 1
018 22AD724GP
Capping Panel - Cantrail - LH - GT
Row ID: ID__22AD724GP_ContPgHS; Resolution: Available; 		$918.11 1
019 13A4063CP
Bracket - Cantrail to Door Hinge - LH
Row ID: ID__13A4063CP_ContPgHS; Resolution: Available; 		$19.34 1
020 13A4066CP
Bracket - Cantrail to Door Hinge - RH
Row ID: ID__13A4066CP_ContPgHS; Resolution: Available; 		$19.34 1
021 00RC064
WASHER - M6X18X1.6 - BLACK
Row ID: ID__00RC064_ContPgHS; Resolution: Available; 		- 6 Enquire
022 00RB185
Clip - Cantrail Capping Panel
Row ID: ID__00RB185_ContPgHS; Resolution: Available; 		- 7 Enquire
023 13A5576CP
Gasket - Service Panel - Door Latch - RH
Row ID: ID__13A5576CP_ContPgHS; Resolution: Available; 		$19.02 1
024 13A5575CP
Service Panel - Door Latch - RH
Row ID: ID__13A5575CP_ContPgHS; Resolution: Available; 		$43.32 1
025 13A5573CP
Gasket - Service Panel - Door Latch - LH
Row ID: ID__13A5573CP_ContPgHS; Resolution: Available; 		$19.02 1
026 13A5572CP
Service Panel - Door Latch - LH
Row ID: ID__13A5572CP_ContPgHS; Resolution: Available; 		$43.32 1
027 00RA468
SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK
Row ID: ID__00RA468_ContPgHS; Resolution: Available; 		- 4 Enquire
028 13A3856CP
Floor Trim - RH
Row ID: ID__13A3856CP_ContPgHS; Resolution: Available; 		$203.03 1
029 13A3855CP
Floor Trim - LH
Row ID: ID__13A3855CP_ContPgHS; Resolution: Available; 		$203.03 1
030 00RC043
WASHER - M6XOD25
Row ID: ID__00RC043_ContPgHS; Resolution: Available; 		- 1 Enquire
031 00RA409
BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS
Row ID: ID__00RA409_ContPgHS; Resolution: Available; 		- 2 Enquire
032 11A0540CP
COVER - B POST - LATCH - RH
Row ID: ID__11A0540CP_ContPgHS; Resolution: Available; 		$53.05 1
033 11A0541CP
COVER - B POST - LATCH - LH
Row ID: ID__11A0541CP_ContPgHS; Resolution: Available; 		$53.05 1
034 22AD728GP
Capping Panel - Cantrail - RH - GT
Row ID: ID__22AD728GP_ContPgHS; Resolution: Available; 		$918.11 1
035 13A5566CP
BAFFLE MOULDING - B-POST - LH
Row ID: ID__13A5566CP_ContPgHS; Resolution: Available; 		- 1 Enquire
036 13A5568CP
BAFFLE MOULDING - B-POST - RH
Row ID: ID__13A5568CP_ContPgHS; Resolution: Available; 		- 1 Enquire
037 22AA078GP
ASSY PNL DOP LH GT
Row ID: ID__22AA078GP_ContPgHS; Resolution: Available; 		- 1 Enquire
038 22AA084GP
ASSY PNL DOP RH GT
Row ID: ID__22AA084GP_ContPgHS; Resolution: Available; 		- 1 Enquire
