3 - Rear Structures - 3.1 - Rear Frame

McLaren McLaren GT

Find Your Part

McLaren McLaren GT - 3 - REAR STRUCTURES - 3.1 - REAR FRAME

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

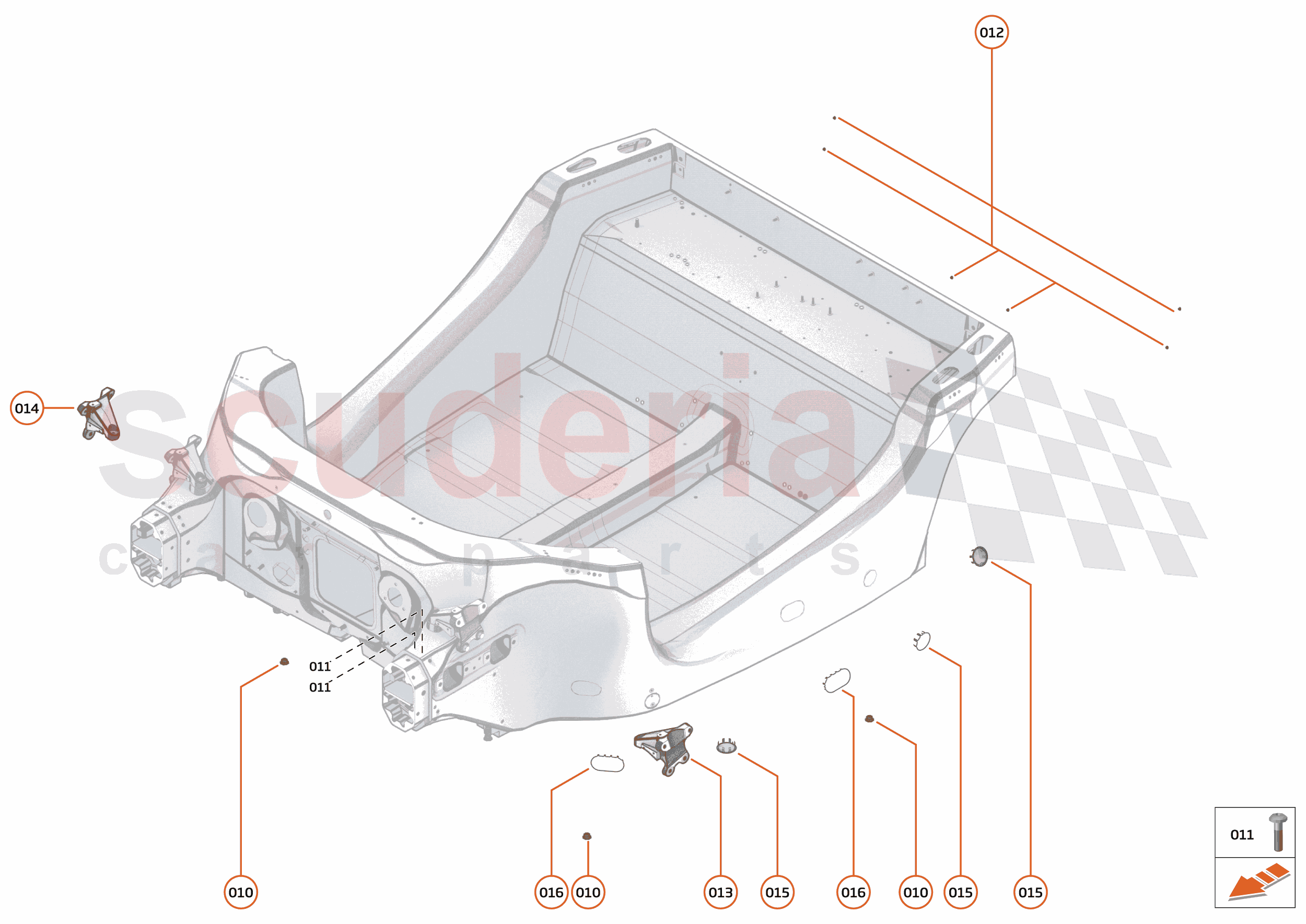

3 - REAR STRUCTURES - 3.1 - REAR FRAME of McLaren McLaren McLaren GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11A3816CP
COVER - REAR FRAME TO FUEL CELL - RH
Row ID: ID__11A3816CP_ContPgHS; Resolution: Available; 		$93.52 1
011 11A3817CP
COVER - REAR FRAME TO FUEL CELL - LH
Row ID: ID__11A3817CP_ContPgHS; Resolution: Available; 		$93.52 1
012 00RA457
SCREW - M10X30-10.9 - HEX
Row ID: ID__00RA457_ContPgHS; Resolution: Available; 		- 8 Enquire
013 00RC065
WASHER - M10X21X2.0
Row ID: ID__00RC065_ContPgHS; Resolution: Available; 		- 4 Enquire
014 11A4284CP
PLUG - DOME - 25 DIAMETER
Row ID: ID__11A4284CP_ContPgHS; Resolution: Available; 		$1.67 4
015 11A4416CP
CROSS BEAM - TRANSMISSION FLOOR
Row ID: ID__11A4416CP_ContPgHS; Resolution: Available; 		$1,203.89 1
015 14AA942CP
Cross Beam - Transmission Floor
Row ID: ID__14AA942CP_ContPgHS; Resolution: Available; 		$1,245.13 1
016 14AB834CP
SHIM REAR FRAME TO TUB-UPR-2MM
Row ID: ID__14AB834CP_ContPgHS; Resolution: Available; 		$18.00 1
016 14AB835CP
SHIM REAR FRAME TO TUB-UPPR-1MM
Row ID: ID__14AB835CP_ContPgHS; Resolution: Available; 		$15.59 1
016 14AB836CP
SHIM REAR FRAME TO TUB-UPR-0.5MM
Row ID: ID__14AB836CP_ContPgHS; Resolution: Available; 		$13.52 1
