7 - Closures - 7.11 - Convertible Roof

McLaren McLaren 720S Spider

Find Your Part

McLaren McLaren 720S Spider - 7 - CLOSURES - 7.11 - CONVERTIBLE ROOF

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14AB345SP RHT SEAL CARRIER LH $1,507.78 To Order
Photo Part No Description Price (each) Stock
14AB346SP RHT SEAL CARRIER RH $1,507.78 To Order
Photo Part No Description Price (each) Stock
11A4013SP RHT - Seal Kit - Back Light Upper Carrier $210.96 To Order
Photo Part No Description Price (each) Stock
14A3142SP RHT PIN LH - PIN - LEFT $289.61 To Order
Photo Part No Description Price (each) Stock
14A3143SP RHT PIN RH - PIN - RIGHT $289.61 To Order
Photo Part No Description Price (each) Stock
14AB591SP RHT LATCH $1,990.46 To Order
Photo Part No Description Price (each) Stock
14AB341SP DYNAMIC FLAP MECH LH $821.63 To Order
Photo Part No Description Price (each) Stock
14AB342SP DYNAMIC FLAP ARM RH $821.63 To Order
Photo Part No Description Price (each) Stock
14AB359SP TONNEAU CVR HINGE $442.53 To Order
Photo Part No Description Price (each) Stock
14AB348SP ASSY ROOF $14,510.49 To Order
14AB353SP ASSY ROOF PNL GLAZED $23,176.45 To Order
Photo Part No Description Price (each) Stock
14AA421SP SPD CONTROLLER - ELECTROCHROMIC - POWER UNIT $1,813.80 To Order
Photo Part No Description Price (each) Stock
14AA422SP RHT HEADLINER GLAZED Enquire To Order
14AB351SP RHT HEADLINER CENTRE $2,582.63 To Order
14AB356SP RHT HEADLINER GLAZED $2,582.63 To Order
Photo Part No Description Price (each) Stock
14AA663SP RHT RR MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14AA664SP RHT FRT LH MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14AA665SP RHT FRT RH MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
00RB201 CLAMP - SPRING BAND - 21X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RB204 CLAMP - SPRING BAND - 27X12 Enquire To Order
Photo Part No Description Price (each) Stock
00RA621 SCREW - M6X24 - BUTTON Enquire To Order
Photo Part No Description Price (each) Stock
14AB210SP TONNEAU CVR KINEMATIC RH $2,395.09 To Order
Photo Part No Description Price (each) Stock
14AB209SP TONNEAU CVR KINEMATIC LH $2,395.09 To Order
Photo Part No Description Price (each) Stock
14AB274SP TONNEAU STRIKER LH $709.01 To Order
Photo Part No Description Price (each) Stock
14AB275SP TONNEAU STRIKER RH $709.01 To Order
Photo Part No Description Price (each) Stock
14A1222SP HOSE TONNEAU EXT DRAIN SPIDER Enquire To Order
Photo Part No Description Price (each) Stock
14A1223SP HOSE TONNEAU EXT DRAIN SPIDER Enquire To Order
Photo Part No Description Price (each) Stock
11A4037SP RHT - Back Light Glass Assy $1,004.04 To Order
Photo Part No Description Price (each) Stock
11A4038SP RHT - Backlight Slider Carrier Kit $15.65 To Order
Photo Part No Description Price (each) Stock
11A4039SP Motor - RHT - Back Light E-drive $229.99 To Order
Photo Part No Description Price (each) Stock
14AB215SP SEAL - SPIDER $1,418.02 To Order
Photo Part No Description Price (each) Stock
14AB658SP ASSY-RHT BACKLIGHT MODULE - EXCLUDING GLASS $2,569.56 To Order
Photo Part No Description Price (each) Stock
14AB657SP ASSY-RHT BACKLIGHT MODULE - INCLUDING GLASS $5,995.65 To Order
View All

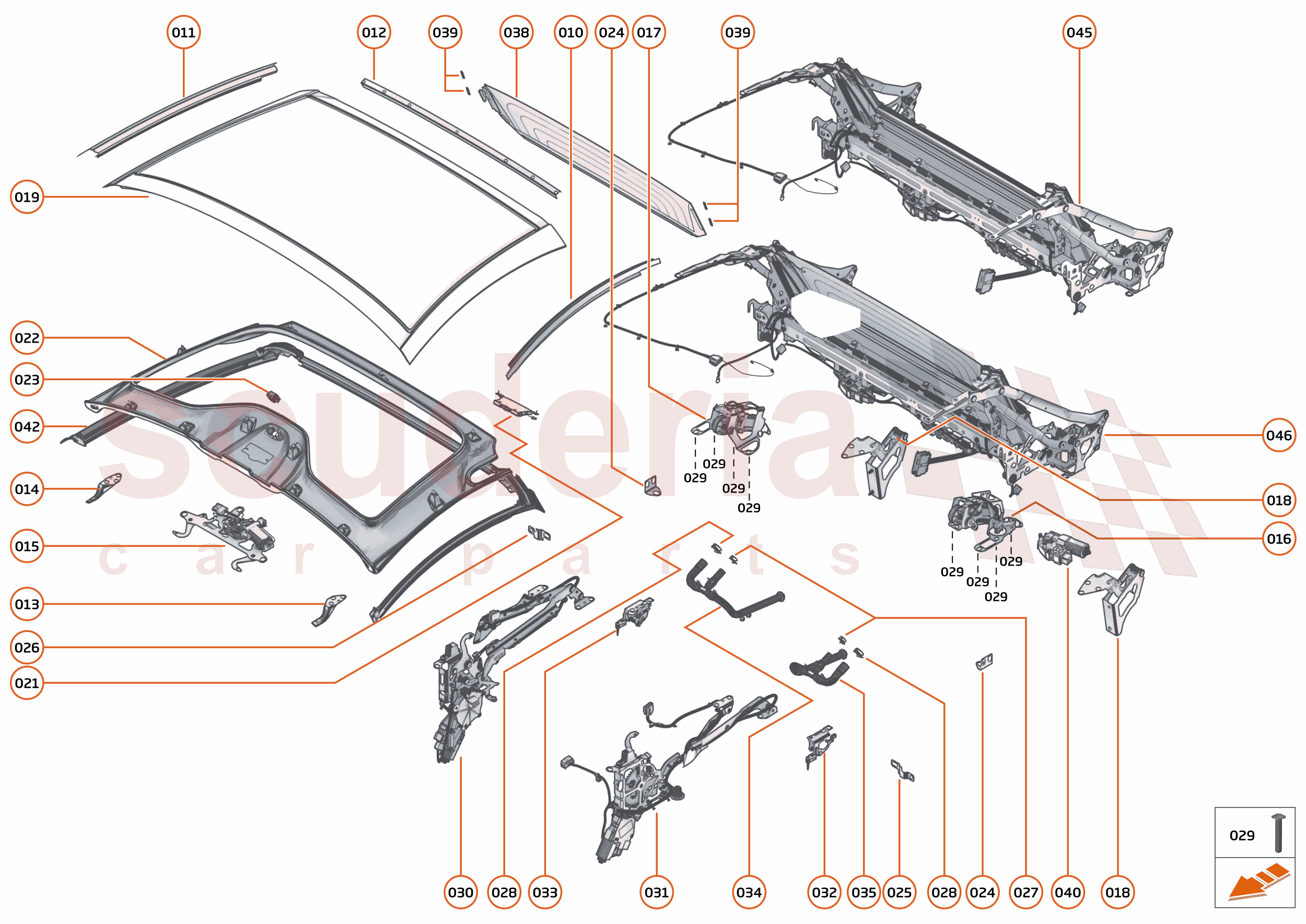

7 - CLOSURES - 7.11 - CONVERTIBLE ROOF of McLaren McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14AB345SP
RHT SEAL CARRIER LH
Row ID: ID_DBBA0101_14AB345SP_ContPgHS; Resolution: Available; 		$1,507.78 1
011 14AB346SP
RHT SEAL CARRIER RH
Row ID: ID_DBBA0102_14AB346SP_ContPgHS; Resolution: Available; 		$1,507.78 1
012 11A4013SP
RHT - Seal Kit - Back Light Upper Carrier
Row ID: ID_DBBA0103_11A4013SP_ContPgHS; Resolution: Available; 		$210.96 1
013 14A3142SP
RHT PIN LH - PIN - LEFT
Row ID: ID_DBBA0104_14A3142SP_ContPgHS; Resolution: Available; 		$289.61 1
014 14A3143SP
RHT PIN RH - PIN - RIGHT
Row ID: ID_DBBA0105_14A3143SP_ContPgHS; Resolution: Available; 		$289.61 1
015 14AB591SP
RHT LATCH
Row ID: ID_DBBA0106_14AB591SP_ContPgHS; Resolution: Available; 		$1,990.46 1
016 14AB341SP
DYNAMIC FLAP MECH LH
Row ID: ID_DBBA0107_14AB341SP_ContPgHS; Resolution: Available; 		$821.63 1
017 14AB342SP
DYNAMIC FLAP ARM RH
Row ID: ID_DBBA0108_14AB342SP_ContPgHS; Resolution: Available; 		$821.63 1
018 14AB359SP
TONNEAU CVR HINGE
Row ID: ID_DBBA0109_14AB359SP_ContPgHS; Resolution: Available; 		$442.53 2
019 14AB348SP
ASSY ROOF
Row ID: ID_DBBA0120_14AB348SP_ContPgHS; Resolution: Available; 		$14,510.49 1
019 14AB353SP
ASSY ROOF PNL GLAZED
Row ID: ID_DBBA0110_14AB353SP_ContPgHS; Resolution: Available; 		$23,176.45 1
021 14AA421SP
SPD CONTROLLER - ELECTROCHROMIC - POWER UNIT
Row ID: ID_DBBA0112_14AA421SP_ContPgHS; Resolution: Available; 		$1,813.80 1
022 14AA422SP
RHT HEADLINER GLAZED
Row ID: ID_DBBA0113_14AA422SP_ContPgHS; Resolution: Available; 		- 1 Enquire
022 14AB351SP
RHT HEADLINER CENTRE
Row ID: ID_DBBA0122_14AB351SP_ContPgHS; Resolution: Available; 		$2,582.63 1
022 14AB356SP
RHT HEADLINER GLAZED
Row ID: ID_DBBA0114_14AB356SP_ContPgHS; Resolution: Available; 		$2,582.63 1
023 14MA109SP
SPD SWITCH - ELECTROCHROMIC - SWITCH
Row ID: ID_DBBA0115_14MA109SP_ContPgHS; Resolution: Available; 		$250.79 1
024 14AA663SP
RHT RR MOUNTING BRACKET
Row ID: ID_DBBA0116_14AA663SP_ContPgHS; Resolution: Available; 		- 2 Enquire
025 14AA664SP
RHT FRT LH MOUNTING BRACKET
Row ID: ID_DBBA0117_14AA664SP_ContPgHS; Resolution: Available; 		- 1 Enquire
026 14AA665SP
RHT FRT RH MOUNTING BRACKET
Row ID: ID_DBBA0118_14AA665SP_ContPgHS; Resolution: Available; 		- 1 Enquire
027 00RB201
CLAMP - SPRING BAND - 21X12
Row ID: ID_XXXXXXZX_00RB201_ContPgHS; Resolution: Available; 		- 2 Enquire
028 00RB204
CLAMP - SPRING BAND - 27X12
Row ID: ID_XXXXXXZX_00RB204_ContPgHS; Resolution: Available; 		- 2 Enquire
029 00RA621
SCREW - M6X24 - BUTTON
Row ID: ID_XXXXXXZV_00RA621_ContPgHS; Resolution: Available; 		- 4 Enquire
030 14AB210SP
TONNEAU CVR KINEMATIC RH
Row ID: ID_DBBA0123_14AB210SP_ContPgHS; Resolution: Available; 		$2,395.09 1
031 14AB209SP
TONNEAU CVR KINEMATIC LH
Row ID: ID_DBBA0136_14AB209SP_ContPgHS; Resolution: Available; 		$2,395.09 1
032 14AB274SP
TONNEAU STRIKER LH
Row ID: ID_DBBA0137_14AB274SP_ContPgHS; Resolution: Available; 		$709.01 1
033 14AB275SP
TONNEAU STRIKER RH
Row ID: ID_DBBA0126_14AB275SP_ContPgHS; Resolution: Available; 		$709.01 1
034 14A1222SP
HOSE TONNEAU EXT DRAIN SPIDER
Row ID: ID_DBBA0127_14A1222SP_ContPgHS; Resolution: Available; 		- 1 Enquire
035 14A1223SP
HOSE TONNEAU EXT DRAIN SPIDER
Row ID: ID_DBBA0128_14A1223SP_ContPgHS; Resolution: Available; 		- 1 Enquire
038 11A4037SP
RHT - Back Light Glass Assy
Row ID: ID_DBBA0132_11A4037SP_ContPgHS; Resolution: Available; 		$1,004.04 1
039 11A4038SP
RHT - Backlight Slider Carrier Kit
Row ID: ID_DBBA0133_11A4038SP_ContPgHS; Resolution: Available; 		$15.65 1
040 11A4039SP
Motor - RHT - Back Light E-drive
Row ID: ID_DBBA0134_11A4039SP_ContPgHS; Resolution: Available; 		$229.99 1
042 14AB215SP
SEAL - SPIDER
Row ID: ID__14AB215SP_ContPgHS; Resolution: Available; 		$1,418.02 1
043 14AB590SP
RETRACTABLE HARDTOP - GLAZED
Row ID: ID__14AB590SP_ContPgHS; Resolution: Available; 		$52,566.91 1
044 14AB381SP
RHT BOLLHOFF COG TOOL
Row ID: ID__14AB381SP_ContPgHS; Resolution: Available; 		$126.91 1
045 14AB658SP
ASSY-RHT BACKLIGHT MODULE - EXCLUDING GLASS
Row ID: ID__14AB658SP_ContPgHS; Resolution: Available; 		$2,569.56 1
046 14AB657SP
ASSY-RHT BACKLIGHT MODULE - INCLUDING GLASS
Row ID: ID__14AB657SP_ContPgHS; Resolution: Available; 		$5,995.65 1
