7 - Closures - 7.1 - Bonnet Structure

McLaren McLaren 720S Spider

Find Your Part

McLaren McLaren 720S Spider - 7 - CLOSURES - 7.1 - BONNET STRUCTURE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
14AC195CP BONNET ASSEMBLY Enquire To Order
14AA078MP BONNET ASSEMBLY - CARBON - MSO Enquire To Order
Photo Part No Description Price (each) Stock
14AC704CP BADGE - MCLAREN - FRONT - CHROME $103.04 To Order
14A4507CP BADGE - MCLAREN - FRONT - RED CHROME $70.45 To Order
Photo Part No Description Price (each) Stock
14A3590CP BONNET GRILLE RH $291.85 To Order
Photo Part No Description Price (each) Stock
14AA901CP TRIM - BONNET GRILLE - RH Enquire To Order
Photo Part No Description Price (each) Stock
14A3591CP BONNET GRILLE - LH $291.85 To Order
Photo Part No Description Price (each) Stock
00RA303 SCREW - BUTTON HEAD - HEX FLANGE - M4X6-10.9BLK Enquire To Order
Photo Part No Description Price (each) Stock
14A3590CP BONNET GRILLE - RH $291.85 To Order
Photo Part No Description Price (each) Stock
14A2918CP BONNET DUCT CARBON LH Enquire To Order
Photo Part No Description Price (each) Stock
14A2694CP DUCT - BONNET - RH - CARBON Enquire To Order
Photo Part No Description Price (each) Stock
14AB882CP FINISHER - BONNET INNER - REAR - LH $22.46 To Order
Photo Part No Description Price (each) Stock
14AB883CP FINISHER - BONNET INNER - REAR - RH $22.46 To Order
Photo Part No Description Price (each) Stock
14AB873CP PLUG - BONNET VENT $5.42 To Order
Photo Part No Description Price (each) Stock
13A3813CP BUMPSTOP $6.79 To Order
View All

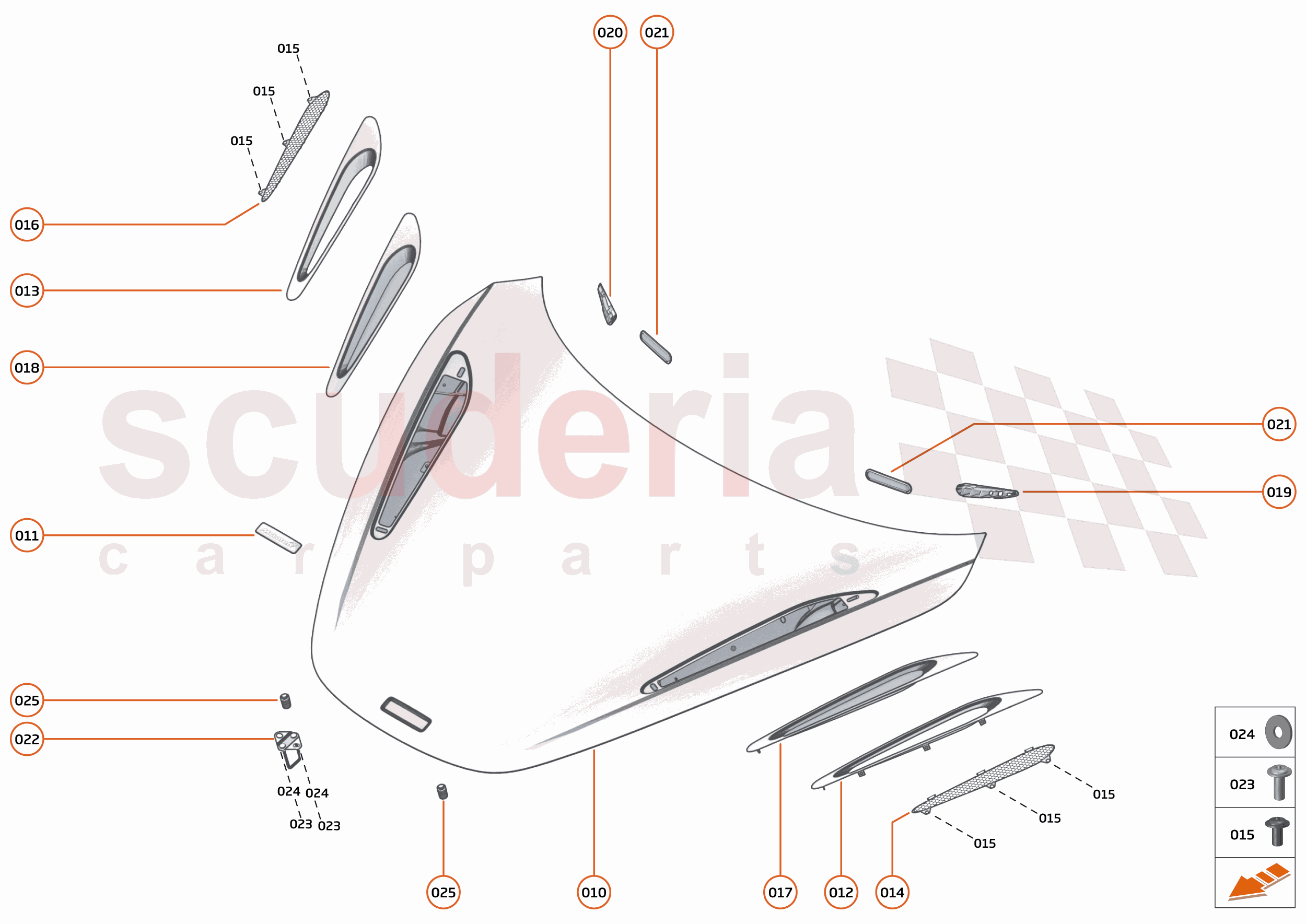

7 - CLOSURES - 7.1 - BONNET STRUCTURE of McLaren McLaren McLaren 720S Spider Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 14AC195CP
BONNET ASSEMBLY
Row ID: ID_DBAF0101_14AC195CP_ContPgHS; Resolution: Available; 		- 1 Enquire
010 14AA078MP
BONNET ASSEMBLY - CARBON - MSO
Row ID: ID__14AA078MP_ContPgHS; 		- 1 Enquire
011 14AC704CP
BADGE - MCLAREN - FRONT - CHROME
Row ID: ID_DBAF0102_14AC704CP_ContPgHS; Resolution: Available; 		$103.04 1
011 14A4507CP
BADGE - MCLAREN - FRONT - RED CHROME
Row ID: ID__14A4507CP_ContPgHS; Resolution: Available; 		$70.45 1
012 14A3590CP
BONNET GRILLE RH
Row ID: ID__14A3590CP_ContPgHS; Resolution: Available; 		$291.85 1
013 14AA901CP
TRIM - BONNET GRILLE - RH
Row ID: ID_DBAF0104_14AA901CP_ContPgHS; 		- 1 Enquire
014 14A3591CP
BONNET GRILLE - LH
Row ID: ID_DBAF0105_14A3591CP_ContPgHS; Resolution: Available; 		$291.85 1
015 00RA303
SCREW - BUTTON HEAD - HEX FLANGE - M4X6-10.9BLK
Row ID: ID_XXXXXXZV_00RA303_ContPgHS; Resolution: Available; 		- 6 Enquire
016 14A3590CP
BONNET GRILLE - RH
Row ID: ID_DBAF0106_14A3590CP_ContPgHS; Resolution: Available; 		$291.85 1
017 14A2918CP
BONNET DUCT CARBON LH
Row ID: ID__14A2918CP_ContPgHS; 		- 1 Enquire
018 14A2694CP
DUCT - BONNET - RH - CARBON
Row ID: ID_DBAF0108_14A2694CP_ContPgHS; 		- 1 Enquire
019 14AB882CP
FINISHER - BONNET INNER - REAR - LH
Row ID: ID_DBAF0109_14AB882CP_ContPgHS; Resolution: Available; 		$22.46 1
020 14AB883CP
FINISHER - BONNET INNER - REAR - RH
Row ID: ID_DBAF0110_14AB883CP_ContPgHS; Resolution: Available; 		$22.46 1
021 14AB873CP
PLUG - BONNET VENT
Row ID: ID_DBAF0111_14AB873CP_ContPgHS; Resolution: Available; 		$5.42 1
024 13A3813CP
BUMPSTOP
Row ID: ID_DBAF0113_13A3813CP_ContPgHS; Resolution: Available; 		$6.79 1
