18 - Suspension - Rear - 18.2 - Uprights Rear

McLaren McLaren 600LT

Find Your Part

McLaren McLaren 600LT - 18 - SUSPENSION - REAR - 18.2 - UPRIGHTS REAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA229 NUT - M14X1.5 - LOCKED HEX Enquire To Order
Photo Part No Description Price (each) Stock
11B0320CP WASHER - DIA 35X3.9X14.5 $11.29 To Order
Photo Part No Description Price (each) Stock
14BA024CP UPRIGHT - SUSPENSION - REAR - RH Enquire To Order
Photo Part No Description Price (each) Stock
11B0630CP CAP - HUB $37.52 To Order
Photo Part No Description Price (each) Stock
11B0739CP WASHER - CAMBER ADJUSTMENT $36.99 To Order
Photo Part No Description Price (each) Stock
14BA022CP UPRIGHT - SUSPENSION - REAR - LH Enquire To Order
Photo Part No Description Price (each) Stock
11B0322CP WHEEL HUB ASSY - BEARING $597.15 To Order
Photo Part No Description Price (each) Stock
11B0541CP TOPHAT - CAMBER ADJUSTMENT $55.94 To Order
Photo Part No Description Price (each) Stock
14B0463CP BOLT - CAP HEAD - M12X30 - HEX $3.20 To Order
Photo Part No Description Price (each) Stock
14B0714CP WASHER - M12X23 $2.77 To Order
Photo Part No Description Price (each) Stock
00RA165 BOLT - M5X8 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14B0631CP HEATSHIELD - BALL JOINT - REAR - UPPER $14.30 To Order
Photo Part No Description Price (each) Stock
14B0632CP HEATSHIELD - BALL JOINT - REAR - LOWER $14.74 To Order
Photo Part No Description Price (each) Stock
00RA165 BOLT - M5X8 - HEX Enquire To Order
View All

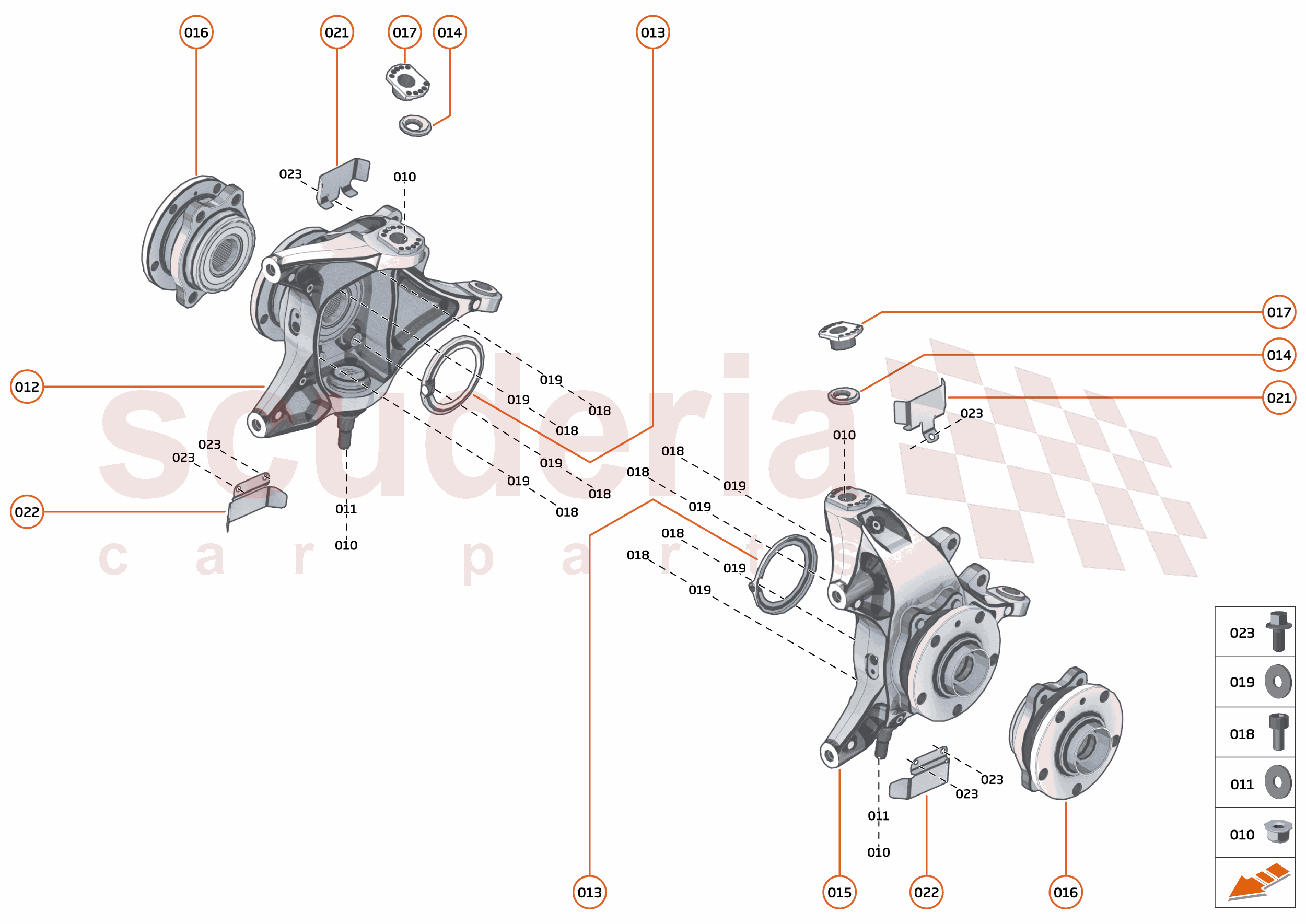

18 - SUSPENSION - REAR - 18.2 - UPRIGHTS REAR of McLaren McLaren McLaren 600LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA229
NUT - M14X1.5 - LOCKED HEX
Row ID: ID_CDBA0207_00RA229_ContPgHS; Resolution: Available; 		- 4 Enquire
011 11B0320CP
WASHER - DIA 35X3.9X14.5
Row ID: ID_CDBA0209_11B0320CP_ContPgHS; Resolution: Available; 		$11.29 2
012 14BA024CP
UPRIGHT - SUSPENSION - REAR - RH
Row ID: ID_CDBB0217_14BA024CP_ContPgHS; Resolution: Available; 		- 1 Enquire
013 11B0630CP
CAP - HUB
Row ID: ID_CDBA0211_11B0630CP_ContPgHS; Resolution: Available; 		$37.52 2
014 11B0739CP
WASHER - CAMBER ADJUSTMENT
Row ID: ID_CDBA0206_11B0739CP_ContPgHS; Resolution: Available; 		$36.99 1
015 14BA022CP
UPRIGHT - SUSPENSION - REAR - LH
Row ID: ID_CDBB0218_14BA022CP_ContPgHS; Resolution: Available; 		- 1 Enquire
016 11B0322CP
WHEEL HUB ASSY - BEARING
Row ID: ID_CDBA0210_11B0322CP_ContPgHS; Resolution: Available; 		$597.15 2
017 11B0541CP
TOPHAT - CAMBER ADJUSTMENT
Row ID: ID_CDBA0204_11B0541CP_ContPgHS; Resolution: Available; 		$55.94 2
018 14B0463CP
BOLT - CAP HEAD - M12X30 - HEX
Row ID: ID_CDBB0219_14B0463CP_ContPgHS; Resolution: Available; 		$3.20 8
019 14B0714CP
WASHER - M12X23
Row ID: ID_CDBB0220_14B0714CP_ContPgHS; Resolution: Available; 		$2.77 8
020 00RA165
BOLT - M5X8 - HEX
Row ID: ID_CDBB0216_00RA165_ContPgHS; Resolution: Available; 		- 4 Enquire
021 14B0631CP
HEATSHIELD - BALL JOINT - REAR - UPPER
Row ID: ID_CDBB0221_14B0631CP_ContPgHS; Resolution: Available; 		$14.30 1
022 14B0632CP
HEATSHIELD - BALL JOINT - REAR - LOWER
Row ID: ID_CDBB0222_14B0632CP_ContPgHS; Resolution: Available; 		$14.74 1
023 00RA165
BOLT - M5X8 - HEX
Row ID: ID_CDBB0216_00RA165_ContPgHS; Resolution: Available; 		- 4 Enquire
