18 - Suspension - Rear - 18.3 - Transverse Links Rear

McLaren McLaren 600LT

Find Your Part

McLaren McLaren 600LT - 18 - SUSPENSION - REAR - 18.3 - TRANSVERSE LINKS REAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RA087 SCREW - M5X10 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
00RX001 Bolt - M5x16 - Hex Enquire To Order
Photo Part No Description Price (each) Stock
14BA018CP BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - LH $17.87 To Order
Photo Part No Description Price (each) Stock
11M0253CP Sensor - Displacement $133.27 To Order
Photo Part No Description Price (each) Stock
14B0545CP BALL STUD - DISPLACEMENT SENSOR $11.10 To Order
Photo Part No Description Price (each) Stock
14B0494CP BALL SCKT SENSOR DISPLACEMENT - GIMBAL $29.86 To Order
Photo Part No Description Price (each) Stock
14BA020CP BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - RH $17.87 To Order
Photo Part No Description Price (each) Stock
00RA457 SCREW - M10X30-10.9 - HEX Enquire To Order
Photo Part No Description Price (each) Stock
14B0579CP WISHBONE - UPPER - REAR - LH $1,134.86 To Order
Photo Part No Description Price (each) Stock
14B0580CP WISHBONE - UPPER - REAR - RH $716.21 To Order
Photo Part No Description Price (each) Stock
11B1314CP BOLT - M10X70 - DAMPER MOUNTING - LOWER $8.10 To Order
Photo Part No Description Price (each) Stock
13BA414RP WISHBONE - LOWER - REAR - LH Enquire To Order
Photo Part No Description Price (each) Stock
11B0800CP TOPHAT - SPACER - DIAMETER 20 - 10.2ID $41.06 To Order
Photo Part No Description Price (each) Stock
13BA415RP WISHBONE - LOWER - REAR - RH Enquire To Order
View All

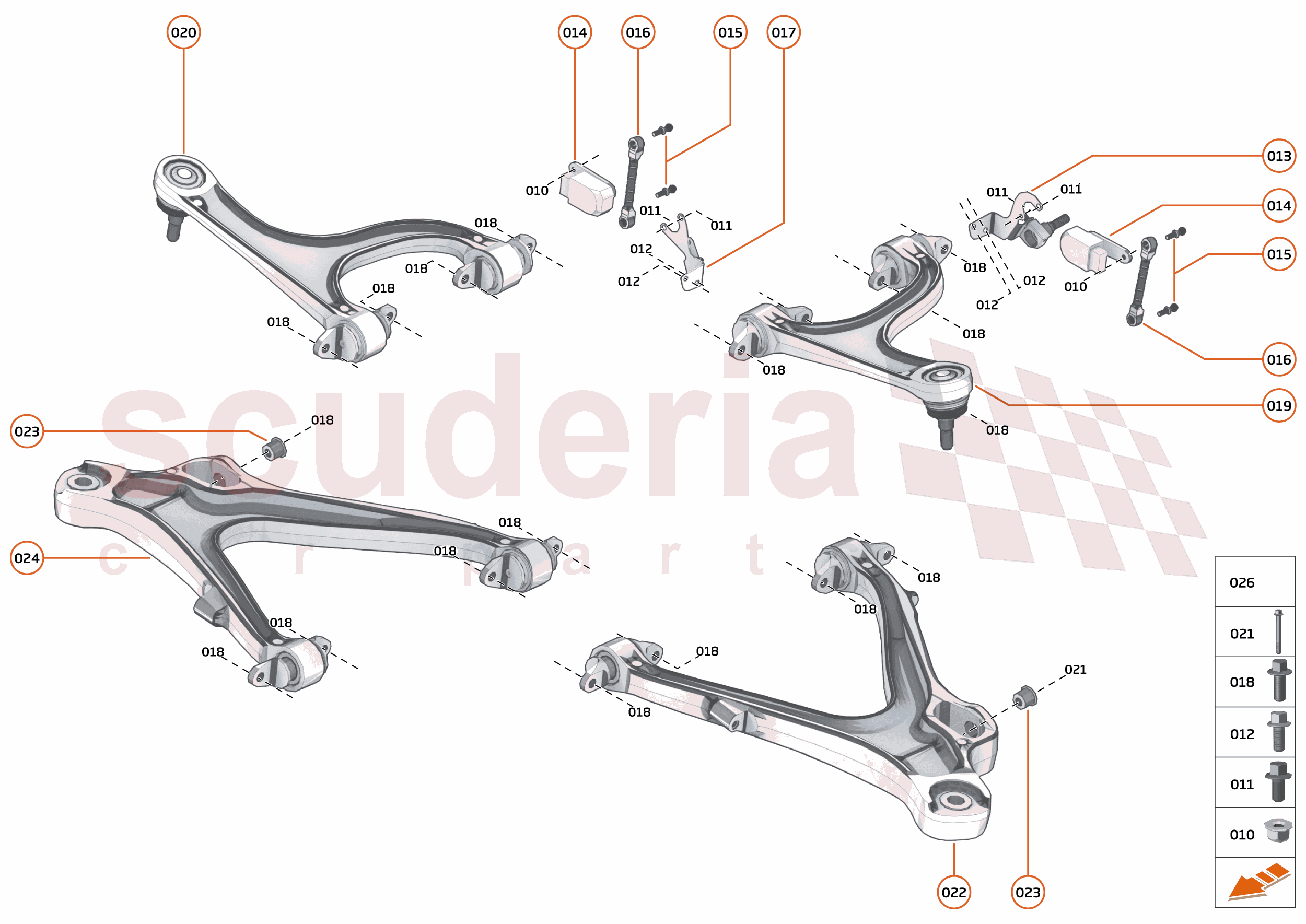

18 - SUSPENSION - REAR - 18.3 - TRANSVERSE LINKS REAR of McLaren McLaren McLaren 600LT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID_CCAL0603_00RA055_ContPgHS; Resolution: Available; 		- 2 Enquire
011 00RA087
SCREW - M5X10 - HEX
Row ID: ID_CDBA0309_00RA087_ContPgHS; Resolution: Available; 		- 4 Enquire
012 00RX001
Bolt - M5x16 - Hex
Row ID: ID_CDBB0312_00RX001_ContPgHS; Resolution: Available; 		- 4 Enquire
013 14BA018CP
BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - LH
Row ID: ID_CDBB0318_14BA018CP_ContPgHS; Resolution: Available; 		$17.87 1
014 11M0253CP
Sensor - Displacement
Row ID: ID_CDBB0308_11M0253CP_ContPgHS; Resolution: Available; 		$133.27 2
015 14B0545CP
BALL STUD - DISPLACEMENT SENSOR
Row ID: ID_CDBB0319_14B0545CP_ContPgHS; Resolution: Available; 		$11.10 4
016 14B0494CP
BALL SCKT SENSOR DISPLACEMENT - GIMBAL
Row ID: ID_CDBB0320_14B0494CP_ContPgHS; Resolution: Available; 		$29.86 2
017 14BA020CP
BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - RH
Row ID: ID_CDBB0321_14BA020CP_ContPgHS; Resolution: Available; 		$17.87 1
018 00RA457
SCREW - M10X30-10.9 - HEX
Row ID: ID_CAAC0115_00RA457_ContPgHS; Resolution: Available; 		- 16 Enquire
019 14B0579CP
WISHBONE - UPPER - REAR - LH
Row ID: ID_CDBB0322_14B0579CP_ContPgHS; Resolution: Available; 		$1,134.86 1
020 14B0580CP
WISHBONE - UPPER - REAR - RH
Row ID: ID_CDBB0323_14B0580CP_ContPgHS; Resolution: Available; 		$716.21 1
021 11B1314CP
BOLT - M10X70 - DAMPER MOUNTING - LOWER
Row ID: ID_CDBA0108_11B1314CP_ContPgHS; Resolution: Available; 		$8.10 2
022 13BA414RP
WISHBONE - LOWER - REAR - LH
Row ID: ID_CDBB0324_13BA414RP_ContPgHS; Resolution: Available; 		- 1 Enquire
023 11B0800CP
TOPHAT - SPACER - DIAMETER 20 - 10.2ID
Row ID: ID_CDBB0325_11B0800CP_ContPgHS; Resolution: Available; 		$41.06 2
024 13BA415RP
WISHBONE - LOWER - REAR - RH
Row ID: ID_CDBB0326_13BA415RP_ContPgHS; Resolution: Available; 		- 1 Enquire
025 11B1552CP
BALL JOINT - GAITER - KIT
Row ID: ID__11B1552CP_ContPgHS; Resolution: Available; 		$44.05 2
