32 - Engine - 32.3 - Inlet Manifold

McLaren McLaren 570GT

Find Your Part

McLaren McLaren 570GT - 32 - ENGINE - 32.3 - INLET MANIFOLD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
13F0664CP Inlet Manifold - Assembly $607.59 To Order
Photo Part No Description Price (each) Stock
11F0967CP Seal Set - Inlet Manifold - Engine $171.68 To Order
Photo Part No Description Price (each) Stock
11F1776CP Bolt - M6x30 - Engine $9.55 To Order
Photo Part No Description Price (each) Stock
11F0407CP Throttle Body - Engine Enquire To Order
Photo Part No Description Price (each) Stock
11F2289CP Seal - Throttle Body - Engine $33.23 To Order
Photo Part No Description Price (each) Stock
11F0820CP Bolt Set - M6x45 - Engine - Throttle Body Enquire To Order
Photo Part No Description Price (each) Stock
11F0987CP Sensor - TMAP - Inlet Manifold - Engine $179.03 To Order
Photo Part No Description Price (each) Stock
11F1793CP BOLT - M6X20 - HEX $10.14 To Order
Photo Part No Description Price (each) Stock
13F0865CP O-ring - ISG Tube $6.13 To Order
Photo Part No Description Price (each) Stock
11F1798CP Screw - M5x25 - Self Tapping $4.28 To Order
Photo Part No Description Price (each) Stock
13F0791CP Blanking Plug - Intake Sound Generator $25.96 To Order
Photo Part No Description Price (each) Stock
13F0654CP Hose - Brake Vacuum $77.30 To Order
Photo Part No Description Price (each) Stock
13F0741CP Clip - Brake Vacuum - Female 030252 $2.85 To Order
Photo Part No Description Price (each) Stock
13F0742CP Clip - Brake Vacuum - Male 030398 $1.94 To Order
View All

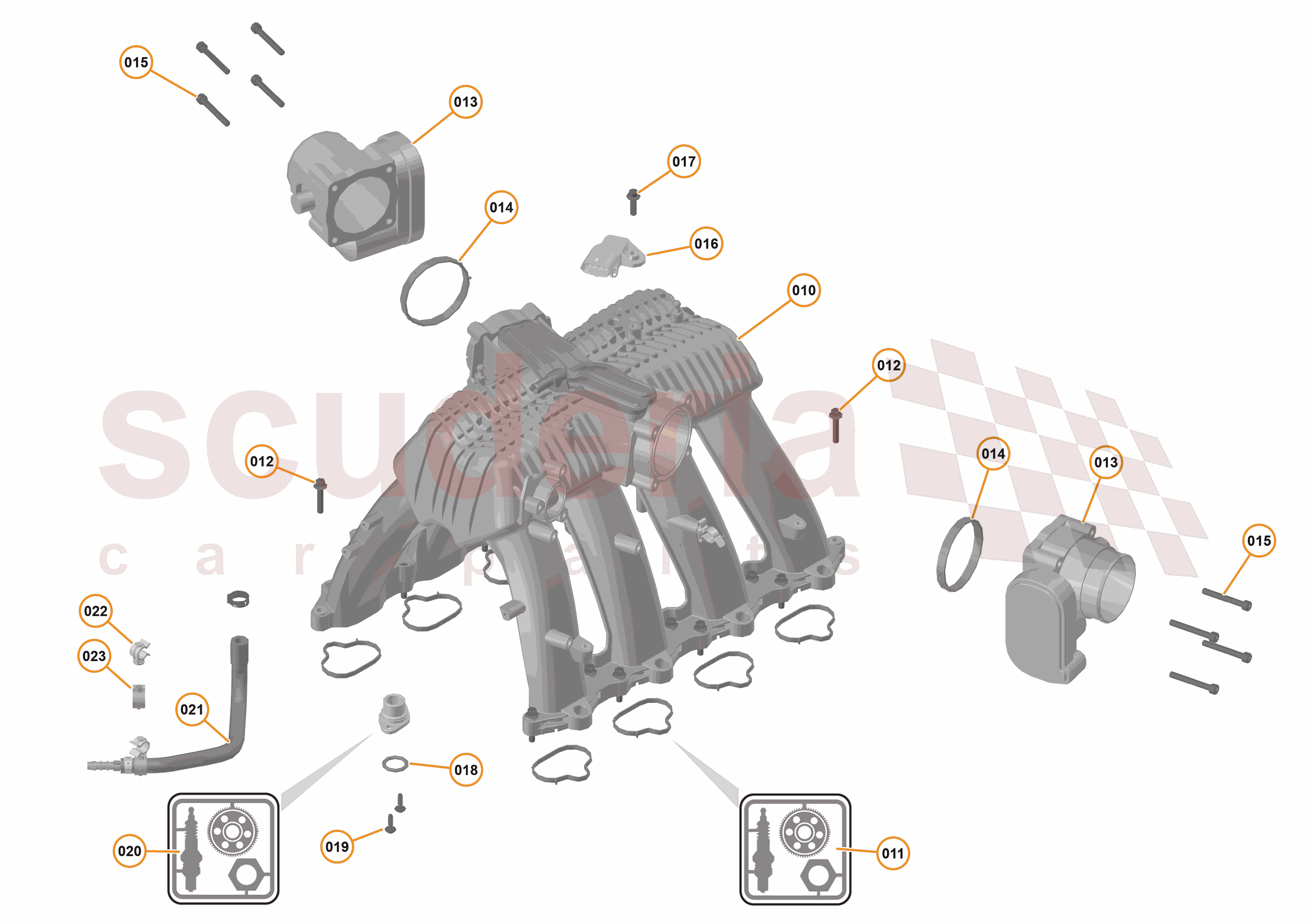

32 - ENGINE - 32.3 - INLET MANIFOLD of McLaren McLaren McLaren 570GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 13F0664CP
Inlet Manifold - Assembly
Row ID: ID_CEFA0133_13F0664CP_ContPgHS; Resolution: Available; 		$607.59 1
011 11F0967CP
Seal Set - Inlet Manifold - Engine
Row ID: ID_CEFA0134_11F0967CP_ContPgHS; Resolution: Available; 		$171.68 1
012 11F1776CP
Bolt - M6x30 - Engine
Row ID: ID_CEFA0109_11F1776CP_ContPgHS; Resolution: Available; 		$9.55 16
013 11F0407CP
Throttle Body - Engine
Row ID: ID_CEFA0135_11F0407CP_ContPgHS; Resolution: Available; 		- 2 Enquire
014 11F2289CP
Seal - Throttle Body - Engine
Row ID: ID_CEFA0136_11F2289CP_ContPgHS; Resolution: Available; 		$33.23 2
015 11F0820CP
Bolt Set - M6x45 - Engine - Throttle Body
Row ID: ID_CEFA0137_11F0820CP_ContPgHS; Resolution: Available; 		- 2 Enquire
016 11F0987CP
Sensor - TMAP - Inlet Manifold - Engine
Row ID: ID_CEFA0138_11F0987CP_ContPgHS; Resolution: Available; 		$179.03 1
017 11F1793CP
BOLT - M6X20 - HEX
Row ID: ID_CEFA0139_11F1793CP_ContPgHS; Resolution: Available; 		$10.14 1
018 13F0865CP
O-ring - ISG Tube
Row ID: ID_CEFA0144_13F0865CP_ContPgHS; Resolution: Available; 		$6.13 1
019 11F1798CP
Screw - M5x25 - Self Tapping
Row ID: ID_CEFA0145_11F1798CP_ContPgHS; Resolution: Available; 		$4.28 2
020 13F0791CP
Blanking Plug - Intake Sound Generator
Row ID: ID_CEFA0146_13F0791CP_ContPgHS; Resolution: Available; 		$25.96 1
021 13F0654CP
Hose - Brake Vacuum
Row ID: ID_CEFA0149_13F0654CP_ContPgHS; Resolution: Available; 		$77.30 1
022 13F0741CP
Clip - Brake Vacuum - Female 030252
Row ID: ID_CEFA01E0_13F0741CP_ContPgHS; Resolution: Available; 		$2.85 1
023 13F0742CP
Clip - Brake Vacuum - Male 030398
Row ID: ID_CEFA01E1_13F0742CP_ContPgHS; Resolution: Available; 		$1.94 1
