34 - ENGINE OIL SYSTEM - 34.3 - ENGINE OIL FILL SYSTEM of McLaren McLaren McLaren 570GT

View All

McLaren McLaren 570GT - 34 - ENGINE OIL SYSTEM - 34.3 - ENGINE OIL FILL SYSTEM

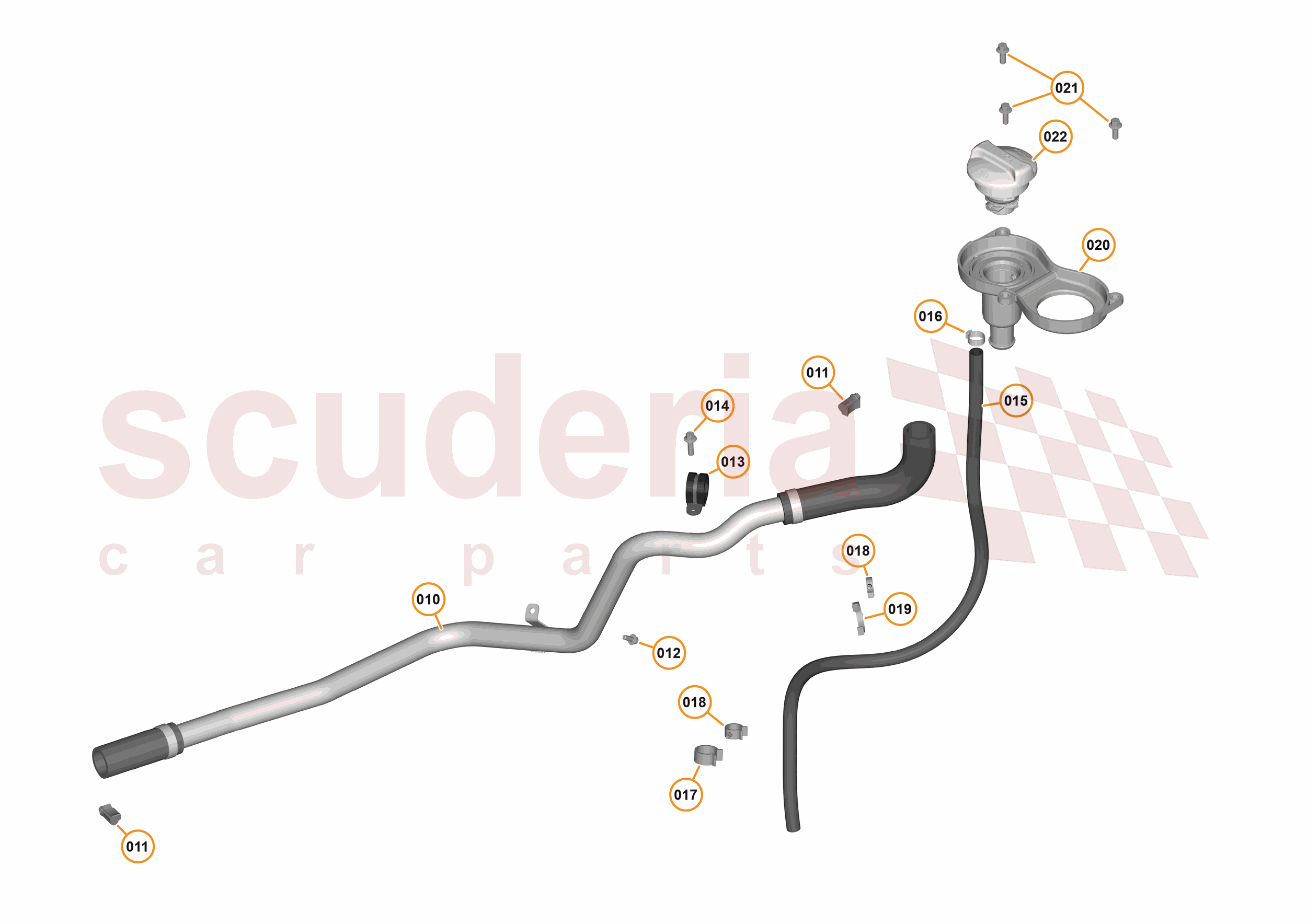

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13F0102CP	Filler Tube - Oil Tank - Engine	$312.01	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB053	HOSE CLAMP - 25-40MM - NORMA TORRO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA064	BOLT - M5X12 - HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB097	P-Clip - Dia 25 - M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
			Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0200CP	Hose - Oil Drain - Oil Filler	$46.27	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB096	STEPLESS EAR CLAMP - 16.2-706R	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB007	CLIP - 18-20MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB034	CLIP - 14-15MM - MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB066	SWIVEL CLIP - 25-27MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0898CP	Bowl - Oil Filler - Coupe	$61.52	To Order

Photo	Part No	Description	Price (each)	Stock
	00RA556	BOLT - HEX - FLANGED - M6X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13F0896CP	Cap - Engine - Oil Filler	$56.42	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	13F0102CP	Filler Tube - Oil Tank - Engine	13F0102CP Filler Tube - Oil Tank - Engine Row ID: ID_CEFC0301_13F0102CP_ContPgHS; Resolution: Available;	$312.01	1
011	00RB053	HOSE CLAMP - 25-40MM - NORMA TORRO	00RB053 HOSE CLAMP - 25-40MM - NORMA TORRO Row ID: ID_CEFC0302_00RB053_ContPgHS; Resolution: Available;	-	2	Enquire
012	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID_CEFC0303_00RA064_ContPgHS; Resolution: Available;	-	1	Enquire
013	00RB097	P-Clip - Dia 25 - M6	00RB097 P-Clip - Dia 25 - M6 Row ID: ID_CEFC0304_00RB097_ContPgHS; Resolution: Available;	-	1	Enquire
014	-		Row ID: ID_CEFC0305_00RA083_ContPgHS; Resolution: Available;	-	1	Enquire
015	13F0200CP	Hose - Oil Drain - Oil Filler	13F0200CP Hose - Oil Drain - Oil Filler Row ID: ID_CEFC0306_13F0200CP_ContPgHS; Resolution: Available;	$46.27	1
016	00RB096	STEPLESS EAR CLAMP - 16.2-706R	00RB096 STEPLESS EAR CLAMP - 16.2-706R Row ID: ID_CEFC0307_00RB096_ContPgHS; Resolution: Available;	-	1	Enquire
017	00RB007	CLIP - 18-20MM - FEMALE	00RB007 CLIP - 18-20MM - FEMALE Row ID: ID_CEFC0308_00RB007_ContPgHS; Resolution: Available;	-	1	Enquire
018	00RB034	CLIP - 14-15MM - MALE	00RB034 CLIP - 14-15MM - MALE Row ID: ID_CEFC0309_00RB034_ContPgHS; Resolution: Available;	-	2	Enquire
019	00RB066	SWIVEL CLIP - 25-27MM - FEMALE	00RB066 SWIVEL CLIP - 25-27MM - FEMALE Row ID: ID_CEFC0310_00RB066_ContPgHS; Resolution: Available;	-	1	Enquire
020	13F0898CP	Bowl - Oil Filler - Coupe	13F0898CP Bowl - Oil Filler - Coupe Row ID: ID_CEFC0311_13F0898CP_ContPgHS; Resolution: Available;	$61.52	1
021	00RA556	BOLT - HEX - FLANGED - M6X16	00RA556 BOLT - HEX - FLANGED - M6X16 Row ID: ID_CEFC0312_00RA556_ContPgHS; Resolution: Available;	-	3	Enquire
022	13F0896CP	Cap - Engine - Oil Filler	13F0896CP Cap - Engine - Oil Filler Row ID: ID_CEFC0313_13F0896CP_ContPgHS; Resolution: Available;	$56.42	1
