Find Your Part

View All

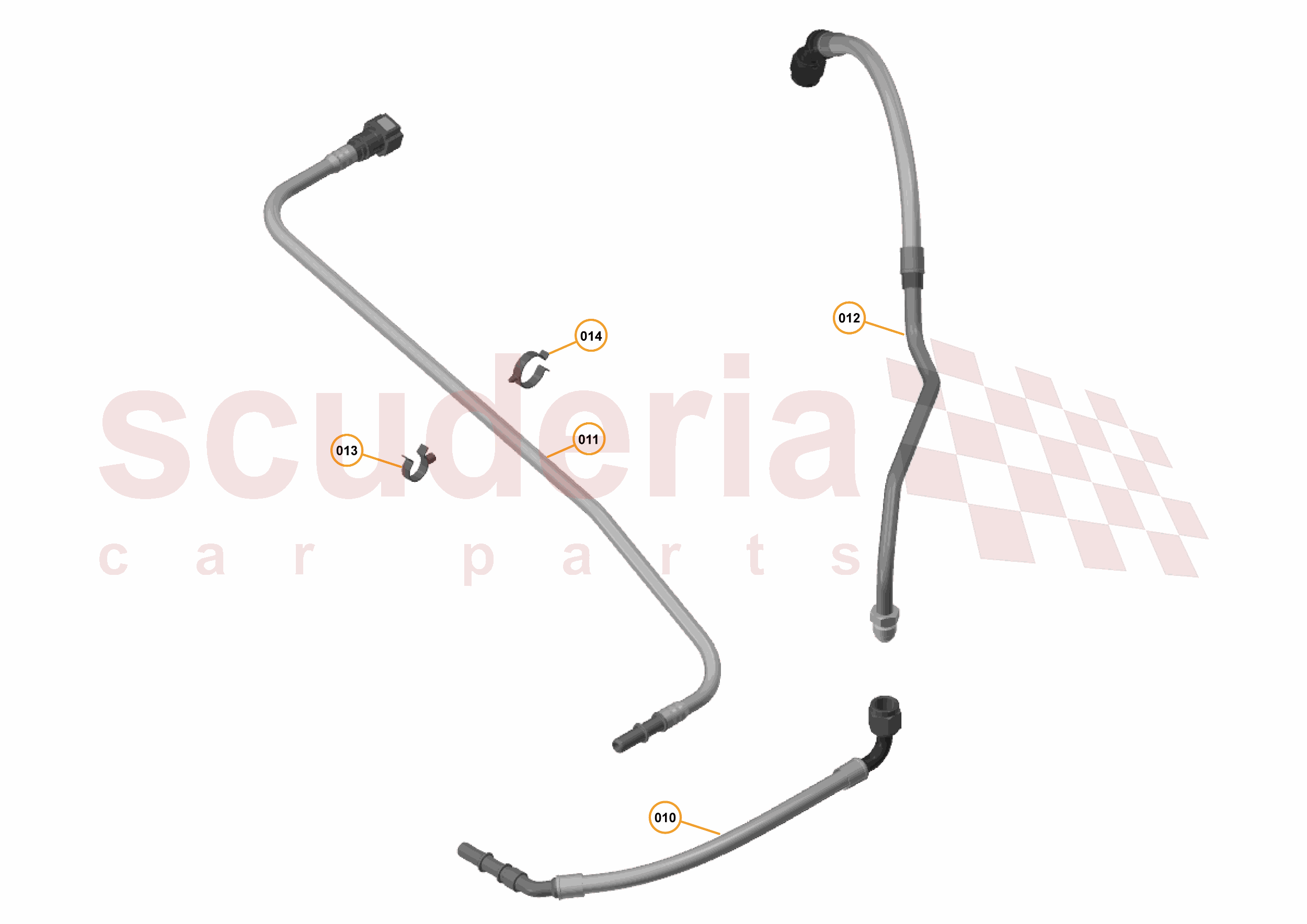

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11K0145CP	Pipe - Fuel Feed - Tank to Bay	$301.90	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0148CP	Fuel Purge Pipe - Bulkhead to Engine - 12C	$97.36	To Order

Photo	Part No	Description	Price (each)	Stock
	11K0144CP	Pipe - Fuel Feed - Bay to Engine	$1,066.32	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB032	CLIP - 13-14MM - FEMALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	00RB008	CLIP - 18-20MM - MALE	Enquire	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	11K0145CP	Pipe - Fuel Feed - Tank to Bay	11K0145CP Pipe - Fuel Feed - Tank to Bay Row ID: ID_B0K10201_11K0145CP_ContPgHS; Resolution: Available;	$301.90	1
011	11K0148CP	Fuel Purge Pipe - Bulkhead to Engine - 12C	11K0148CP Fuel Purge Pipe - Bulkhead to Engine - 12C Row ID: ID_B0K10202_11K0148CP_ContPgHS; Resolution: Available;	$97.36	1
012	11K0144CP	Pipe - Fuel Feed - Bay to Engine	11K0144CP Pipe - Fuel Feed - Bay to Engine Row ID: ID_B0K10203_11K0144CP_ContPgHS; Resolution: Available;	$1,066.32	1
013	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE Row ID: ID_B0K10204_00RB032_ContPgHS; Resolution: Available;	-	1	Enquire
014	00RB008	CLIP - 18-20MM - MALE	00RB008 CLIP - 18-20MM - MALE Row ID: ID_B0K10205_00RB008_ContPgHS; Resolution: Available;	-	1	Enquire
015	00RA061	Screw - M6x16 - Flange Hex	00RA061 Screw - M6x16 - Flange Hex Row ID: ID_B0K10206_00RA061_ContPgHS; Resolution: Available;	-	2	Enquire
016	00RB098	P-Clip - Dia 10 - Silicone	00RB098 P-Clip - Dia 10 - Silicone Row ID: ID_B0K10207_00RB098_ContPgHS; Resolution: Available;	-	2	Enquire
