McLaren McLaren 12C Coupe - 13 - K1 - FUEL SYSTEM - 13.1 - 01 - FUEL TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
11K0111CP Bush - Strap - Fuel Tank $32.83 To Order
Photo Part No Description Price (each) Stock
11K0110CP TURNBUCKLE - STRAP - FUEL TANK $28.57 To Order
Photo Part No Description Price (each) Stock
11K0109CP NUT - STRAP - FUEL TANK $11.28 To Order
Photo Part No Description Price (each) Stock
11K0139CP BRACKET - FUEL TANK MOUNTING - TENSIONER $118.76 To Order
Photo Part No Description Price (each) Stock
11K0105CP Stud Plate - M6x18 - Fuel Tank $29.35 To Order
Photo Part No Description Price (each) Stock
11K0102CP SPACER - TURNBUCKLE 8MM LONG - FUEL TANK $23.93 To Order
Photo Part No Description Price (each) Stock
00RG010 Nut Protector - M6 -Reevite Enquire To Order
Photo Part No Description Price (each) Stock
11K0112CP Bracket - Fuel Tank - Lower $43.11 To Order
Photo Part No Description Price (each) Stock
00RA055 NUT - M6 - LOCKING - HEX Enquire To Order
Photo Part No Description Price (each) Stock
11K0064CP Controller - Fuel Pump $505.99 To Order
Photo Part No Description Price (each) Stock
00RA257 BOLT - M6X55 - HEX SOCKET Enquire To Order
Photo Part No Description Price (each) Stock
Enquire To Order
Photo Part No Description Price (each) Stock
11K0138CP Mounting Strap - Moulded - Fuel Tank $53.59 To Order
Photo Part No Description Price (each) Stock
11K0164CP OETIKER CLIP - 59.0-706R $17.72 To Order
Photo Part No Description Price (each) Stock
00RB074 SWIVEL CLIP - 11-13MM - FEMALE Enquire To Order
Photo Part No Description Price (each) Stock
00RG018 SWIVEL CLIP - 22-24MM -MALE Enquire To Order
Photo Part No Description Price (each) Stock
11H0301CP BUNG - CHECK VALVE $4.35 To Order
Photo Part No Description Price (each) Stock
11K0004CP PUMP - FUEL - RH $970.73 To Order
Photo Part No Description Price (each) Stock
11K0009CP FILTER - FUEL $382.69 To Order
Photo Part No Description Price (each) Stock
11K0134CP PIPE - PURGE - FUEL TANK $185.11 To Order
Photo Part No Description Price (each) Stock
11K0027CP PUMP - FUEL - LH $970.73 To Order
Photo Part No Description Price (each) Stock
11K0140CP Harness Carrier - Fuel Cell - RH $182.79 To Order
Photo Part No Description Price (each) Stock
11K0141CP Harness Carrier - Fuel Cell - LH $182.79 To Order
Photo Part No Description Price (each) Stock
11K0151CP PIPE - MOULDED UPPER - CARBON CANISTER - FUELTANK $192.58 To Order
Photo Part No Description Price (each) Stock
11K0153CP BREATHER DUCT - FUEL TANK - LOWER $48.98 To Order
Photo Part No Description Price (each) Stock
11K0129CP Clip - Fuel Tank Feed Hose $24.50 To Order
Photo Part No Description Price (each) Stock
11K0135CP STUD PLATE - M6X33 - FUEL TANK $29.92 To Order
Photo Part No Description Price (each) Stock
11K0154CP Bolt - Fuel Tank - Access Cover $20.57 To Order
Photo Part No Description Price (each) Stock
11K0155CP Nut - Fuel Tank - Pump Module $36.45 To Order
View All

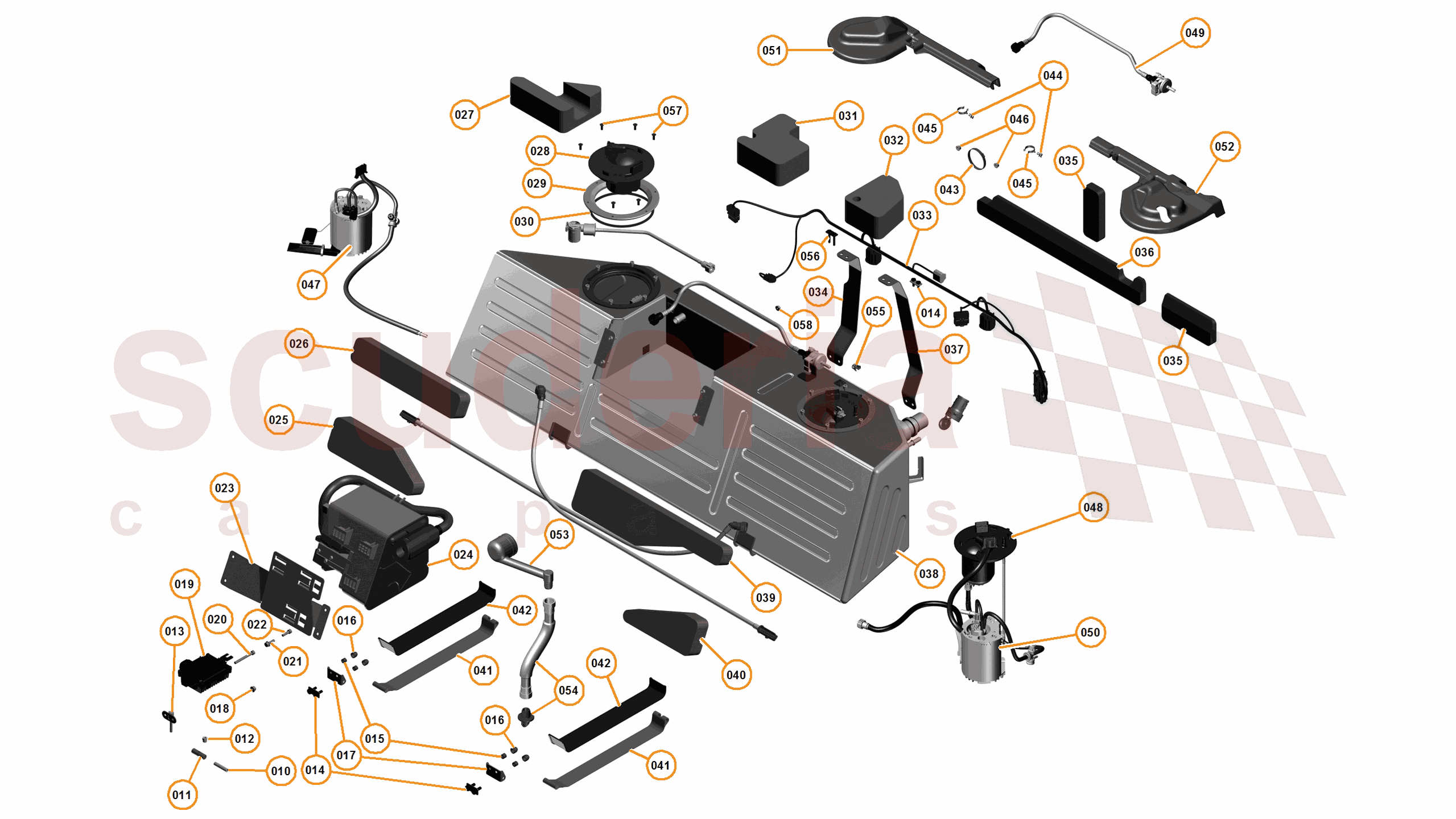

13 - K1 - FUEL SYSTEM - 13.1 - 01 - FUEL TANK of McLaren McLaren McLaren 12C Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 11K0111CP
Bush - Strap - Fuel Tank
Row ID: ID_B0K10126_11K0111CP_ContPgHS; Resolution: Available; 		$32.83 2
011 11K0110CP
TURNBUCKLE - STRAP - FUEL TANK
Row ID: ID_B0K10125_11K0110CP_ContPgHS; Resolution: Available; 		$28.57 2
012 11K0109CP
NUT - STRAP - FUEL TANK
Row ID: ID_B0K10124_11K0109CP_ContPgHS; Resolution: Available; 		$11.28 2
013 11K0139CP
BRACKET - FUEL TANK MOUNTING - TENSIONER
Row ID: ID_B0K10130_11K0139CP_ContPgHS; Resolution: Available; 		$118.76 2
014 11K0105CP
Stud Plate - M6x18 - Fuel Tank
Row ID: ID_B0K10101_11K0105CP_ContPgHS; Resolution: Available; 		$29.35 3
015 11K0102CP
SPACER - TURNBUCKLE 8MM LONG - FUEL TANK
Row ID: ID_B0K10122_11K0102CP_ContPgHS; Resolution: Available; 		$23.93 2
016 00RG010
Nut Protector - M6 -Reevite
Row ID: ID_B0K10105_00RG010_ContPgHS; Resolution: Available; 		- 4 Enquire
017 11K0112CP
Bracket - Fuel Tank - Lower
Row ID: ID_B0K10127_11K0112CP_ContPgHS; Resolution: Available; 		$43.11 2
018 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID_B0K10131_00RA055_ContPgHS; Resolution: Available; 		- 10 Enquire
019 11K0064CP
Controller - Fuel Pump
Row ID: ID_B0K10142_11K0064CP_ContPgHS; Resolution: Available; 		$505.99 2
020 00RA257
BOLT - M6X55 - HEX SOCKET
Row ID: ID_B0K10132_00RA257_ContPgHS; Resolution: Available; 		- 2 Enquire
021
Row ID: ID_B0K10102_00RA083_ContPgHS; Resolution: Available; 		- 4 Enquire
042 11K0138CP
Mounting Strap - Moulded - Fuel Tank
Row ID: ID_B0K10129_11K0138CP_ContPgHS; Resolution: Available; 		$53.59 2
043 11K0164CP
OETIKER CLIP - 59.0-706R
Row ID: ID_B0K10111_11K0164CP_ContPgHS; Resolution: Available; 		$17.72 1
044 00RB074
SWIVEL CLIP - 11-13MM - FEMALE
Row ID: ID_B0K10104_00RB074_ContPgHS; Resolution: Available; 		- 2 Enquire
045 00RG018
SWIVEL CLIP - 22-24MM -MALE
Row ID: ID_B0K10106_00RG018_ContPgHS; Resolution: Available; 		- 2 Enquire
046 11H0301CP
BUNG - CHECK VALVE
Row ID: ID_B0K10107_11H0301CP_ContPgHS; Resolution: Available; 		$4.35 2
047 11K0004CP
PUMP - FUEL - RH
Row ID: ID_B0K10134_11K0004CP_ContPgHS; Resolution: Available; 		$970.73 1
048 11K0009CP
FILTER - FUEL
Row ID: ID_B0K10135_11K0009CP_ContPgHS; Resolution: Available; 		$382.69 1
049 11K0134CP
PIPE - PURGE - FUEL TANK
Row ID: ID_B0K10143_11K0134CP_ContPgHS; Resolution: Available; 		$185.11 1
050 11K0027CP
PUMP - FUEL - LH
Row ID: ID_B0K10136_11K0027CP_ContPgHS; Resolution: Available; 		$970.73 1
051 11K0140CP
Harness Carrier - Fuel Cell - RH
Row ID: ID_B0K10144_11K0140CP_ContPgHS; Resolution: Available; 		$182.79 1
052 11K0141CP
Harness Carrier - Fuel Cell - LH
Row ID: ID_B0K10145_11K0141CP_ContPgHS; Resolution: Available; 		$182.79 1
053 11K0151CP
PIPE - MOULDED UPPER - CARBON CANISTER - FUELTANK
Row ID: ID_B0K10146_11K0151CP_ContPgHS; Resolution: Available; 		$192.58 1
054 11K0153CP
BREATHER DUCT - FUEL TANK - LOWER
Row ID: ID_B0K10147_11K0153CP_ContPgHS; Resolution: Available; 		$48.98 1
055 11K0129CP
Clip - Fuel Tank Feed Hose
Row ID: ID_B0K10108_11K0129CP_ContPgHS; Resolution: Available; 		$24.50 1
056 11K0135CP
STUD PLATE - M6X33 - FUEL TANK
Row ID: ID_B0K10150_11K0135CP_ContPgHS; Resolution: Available; 		$29.92 1
057 11K0154CP
Bolt - Fuel Tank - Access Cover
Row ID: ID_B0K10109_11K0154CP_ContPgHS; Resolution: Available; 		$20.57 12
058 11K0155CP
Nut - Fuel Tank - Pump Module
Row ID: ID_B0K10110_11K0155CP_ContPgHS; Resolution: Available; 		$36.45 1
