Name: REAR SEATS: MECHANICS AND ELECTRONICS
Rating: 5.0 (1 reviews)

View All

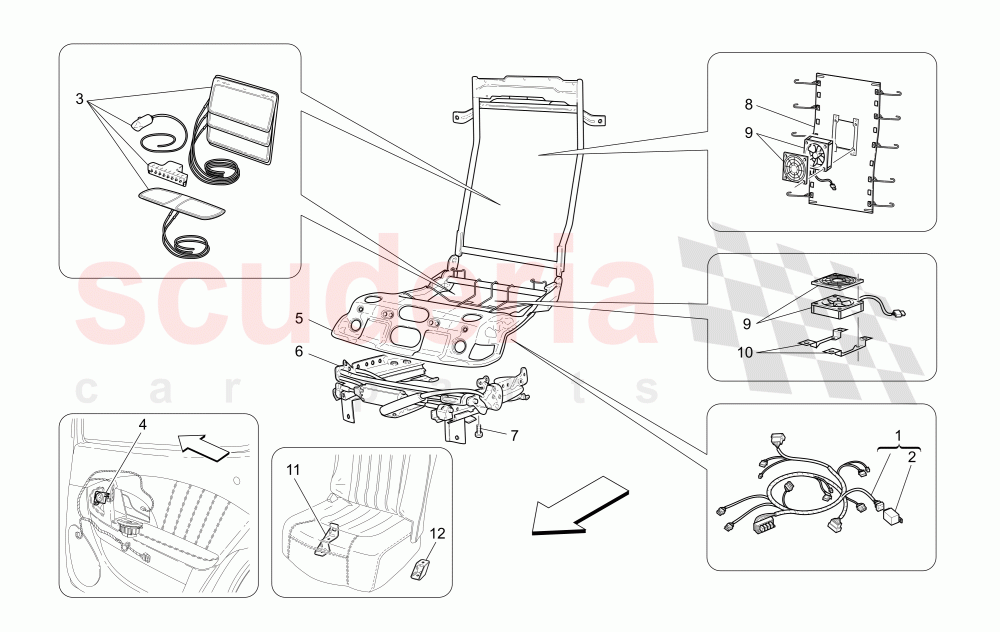

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	980139419	REAR SEAT CABLE	$721.17	To Order

Photo	Part No	Description	Price (each)	Stock
	980139417	HEATER CONTROL UNIT	$488.66	To Order

Photo	Part No	Description	Price (each)	Stock
	980139424	L.H. KIT FOR MASSAGE AND LUMBAR ADJUST	$4,524.82	To Order
	980139425	R.H. KIT FOR MASSAGE AND LUMBAR ADJUST	$4,214.12	To Order

Photo	Part No	Description	Price (each)	Stock
	203492	LH REAR SEAT MOVEMENT CONTROL BUTTON	$225.71	To Order
	203491	RH REAR SEAT MOVEMENT CONTROL BUTTON	$226.96	To Order

Photo	Part No	Description	Price (each)	Stock
	980139497	SCREW	$23.07	To Order

Photo	Part No	Description	Price (each)	Stock
	980139496	VENTILATION KIT	$786.17	To Order

Photo	Part No	Description	Price (each)	Stock
	980139498	BRACKET	$33.30	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	980139419	REAR SEAT CABLE	980139419 REAR SEAT CABLE	$721.17	2
2	980139417	HEATER CONTROL UNIT	980139417 HEATER CONTROL UNIT	$488.66	2
3	980139424	L.H. KIT FOR MASSAGE AND LUMBAR ADJUST	980139424 L.H. KIT FOR MASSAGE AND LUMBAR ADJUST	$4,524.82	1
3	980139425	R.H. KIT FOR MASSAGE AND LUMBAR ADJUST	980139425 R.H. KIT FOR MASSAGE AND LUMBAR ADJUST	$4,214.12	1
4	203492	LH REAR SEAT MOVEMENT CONTROL BUTTON	203492 LH REAR SEAT MOVEMENT CONTROL BUTTON	$225.71	1
4	203491	RH REAR SEAT MOVEMENT CONTROL BUTTON	203491 RH REAR SEAT MOVEMENT CONTROL BUTTON	$226.96	1
6	980139492	L.H. REAR SEAT LIFTER	980139492 L.H. REAR SEAT LIFTER	$2,795.92	1
6	980139493	R.H. REAR SEAT LIFTER	980139493 R.H. REAR SEAT LIFTER	$2,606.94	1
7	980139497	SCREW	980139497 SCREW	$23.07	7
9	980139496	VENTILATION KIT	980139496 VENTILATION KIT	$786.17	2
10	980139498	BRACKET	980139498 BRACKET	$33.30	4
11	81223400	L.H. INNER BRACKET	81223400 L.H. INNER BRACKET	$30.74	1
11	81223200	R.H. INNER BRACKET	81223200 R.H. INNER BRACKET	$30.74	1
12	81223500	L.H. OUTER BRACKET	81223500 L.H. OUTER BRACKET	$36.56	1
12	81223300	R.H. OUTER BRACKET	81223300 R.H. OUTER BRACKET	$36.56	1

Rear Seats: Mechanics And Electronics

Maserati Quattroporte (2008-2012) S 4.7
