Name: UNDERBODY AND UNDERFLOOR GUARDS
Rating: 4.6 (1 reviews)

UNDERBODY AND UNDERFLOOR GUARDS of Maserati Maserati Quattroporte (2008-2012) S 4.7

View All

Maserati Quattroporte (2008-2012) S 4.7 - UNDERBODY AND UNDERFLOOR GUARDS

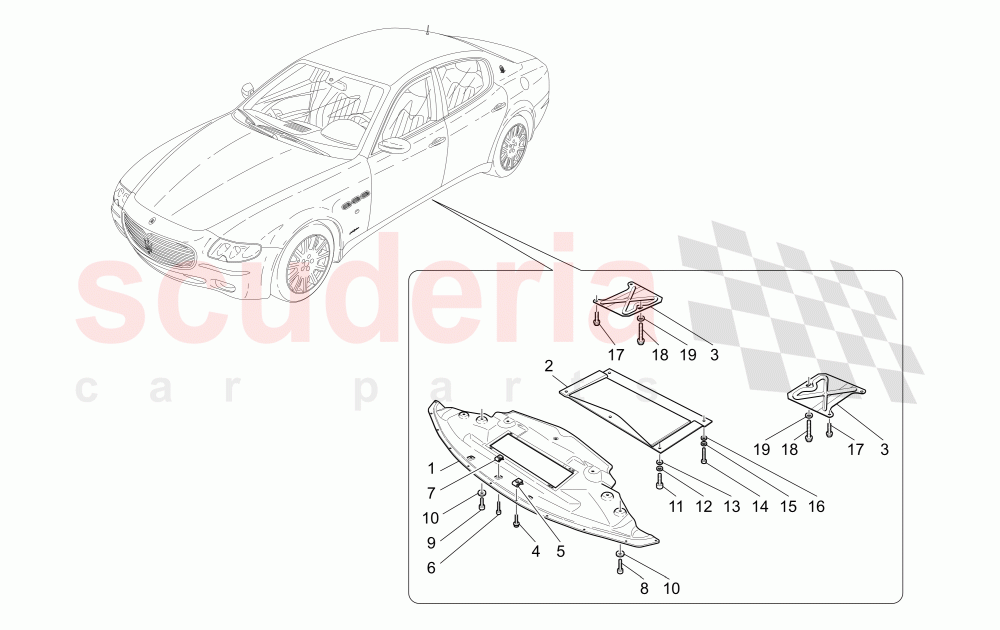

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock

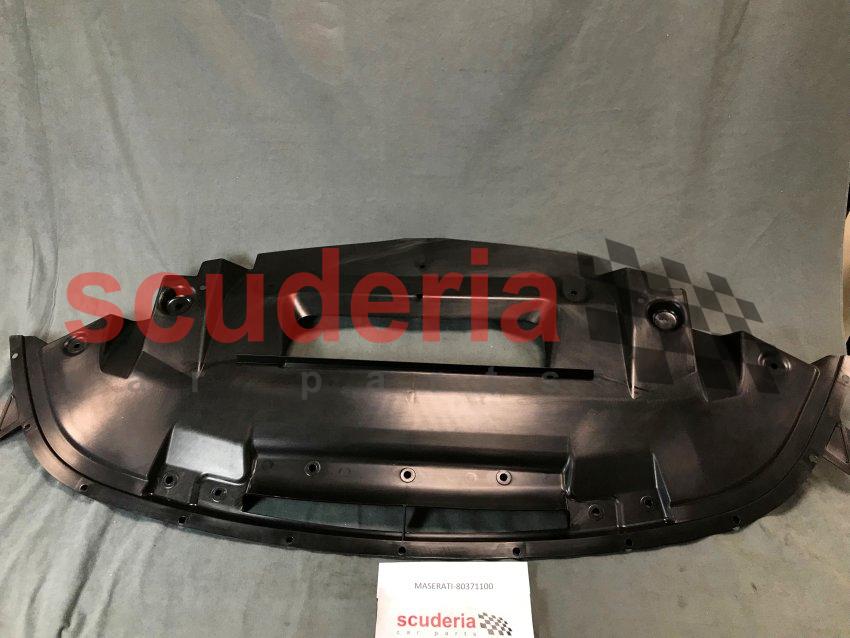

	80371100	Under Body Shield	$144.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	67960100	Under Frame Shield	$271.73	To Order

Photo	Part No	Description	Price (each)	Stock
	67576300	Pipe Cover Plate	$24.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	67278600	Screw M5	$4.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	67278700	Bracket	$4.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	68479900	Screw	$4.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	61789700	Bracket	$2.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock

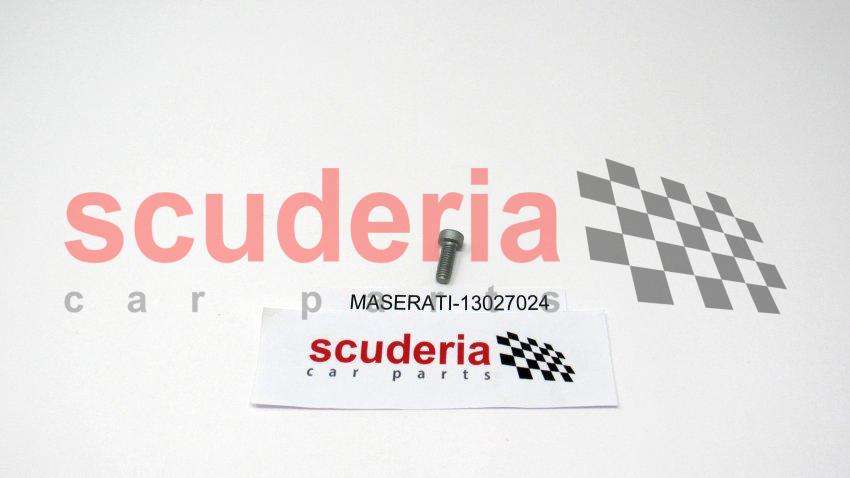

	13027024	Screw M6 x 16mm	$2.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	233600	SCREW M6 X 12	$2.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock

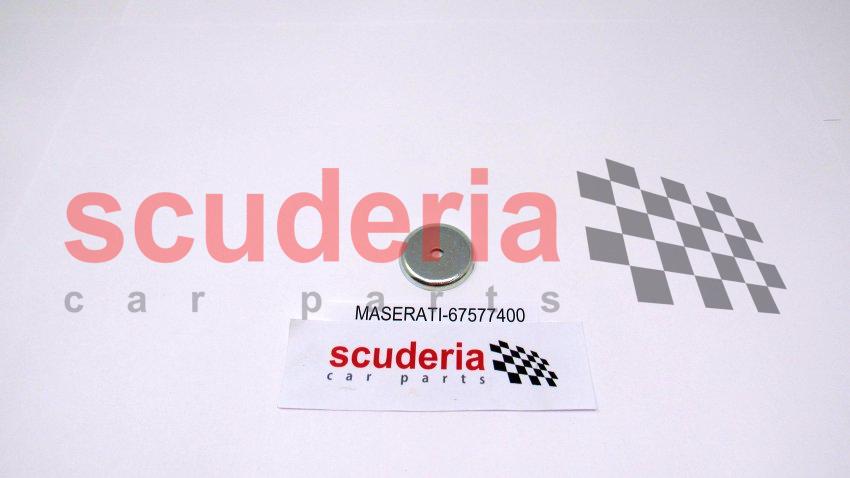

	67577400	UNDER BODY FLOOR SHIELD CAP	$9.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15970324	Screw	$2.95	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601474	Wavy Washer 10mm	$1.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	$2.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10902524	Screw	$2.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	$2.44	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11617324	Screw M8 x 18	$3.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13217434	SCREW M12 X 1.25 X 35	$9.30	To Order

Photo	Part No	Description	Price (each)	Stock
	12646934	WASHER D.12.2-28	$2.66	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	80371100	Under Body Shield IN STOCK	80371100 Under Body Shield IN STOCK	$144.53	1
2	67960100	Under Frame Shield	67960100 Under Frame Shield	$271.73	1
3	67576300	Pipe Cover Plate IN STOCK	67576300 Pipe Cover Plate IN STOCK	$24.50	2
4	67278600	Screw M5 IN STOCK	67278600 Screw M5 IN STOCK	$4.72 MSRP: ~~5.35~~ (11.8% off)	11
5	67278700	Bracket IN STOCK	67278700 Bracket IN STOCK	$4.43	11
6	68479900	Screw IN STOCK	68479900 Screw IN STOCK	$4.72	3
7	61789700	Bracket IN STOCK	61789700 Bracket IN STOCK	$2.07	3
8	13027024	Screw M6 x 16mm IN STOCK	13027024 Screw M6 x 16mm IN STOCK	$2.07	6
9	233600	SCREW M6 X 12 IN STOCK	233600 SCREW M6 X 12 IN STOCK	$2.81	1
10	67577400	UNDER BODY FLOOR SHIELD CAP IN STOCK	67577400 UNDER BODY FLOOR SHIELD CAP IN STOCK	$9.74	7
11	15970324	Screw IN STOCK	15970324 Screw TE M10X1,25X16 IN STOCK	$2.95	2
12	12601474	Wavy Washer 10mm IN STOCK	12601474 Wavy Washer 10mm D.10,50-21X 1,0 IN STOCK	$1.63	2
13	12647021	WASHER IN STOCK	12647021 WASHER D.10.2-25X2 IN STOCK	$2.07	2
14	10902524	Screw IN STOCK	10902524 Screw TE M 6X 22 IN STOCK	$2.07	3
15	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D. 6,40-12X 0,5	$2.44	3
16	12648925	WASHER	12648925 WASHER D. 6.15-25X 2	-	3	Enquire
17	11617324	Screw M8 x 18 IN STOCK	11617324 Screw M8 x 18 TE M8X18 IN STOCK	$3.56 MSRP: ~~3.88~~ (8.2% off)	4
18	13217434	SCREW M12 X 1.25 X 35	13217434 SCREW M12 X 1.25 X 35 M12X1,25X35	$9.30	2
19	12646934	WASHER D.12.2-28 IN STOCK	12646934 WASHER D.12.2-28 D. 12.2 -28X 3 IN STOCK	$2.66	2

Underbody And Underfloor Guards

Maserati Quattroporte (2008-2012) S 4.7

Maserati Quattroporte (2008-2012) S 4.7 - UNDERBODY AND UNDERFLOOR GUARDS
