Name: FRONT UNDERCHASSIS
Rating: 5.0 (1 reviews)

FRONT UNDERCHASSIS of Maserati Maserati Quattroporte (2003-2007) DuoSelect

View All

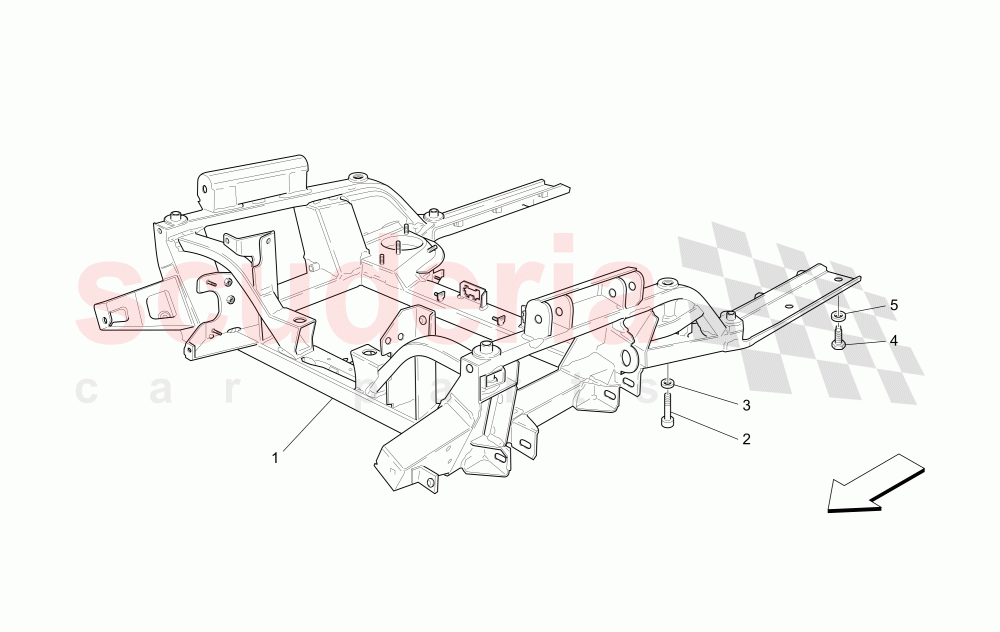

Maserati Quattroporte (2003-2007) DuoSelect - FRONT UNDERCHASSIS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	980139619	FRONT SUSPENSION FRAME ASSEMBLY	$4,053.31	To Order
	980139619	FRONT SUSPENSION FRAME ASSEMBLY	$4,053.31	To Order
	239053	FRONT SUSPENSION FRAME ASSEMBLY	$3,513.75	To Order

Photo	Part No	Description	Price (each)	Stock
	67998000	SCREW M12 X 1.25 X 70	$12.55	To Order
	67998000	SCREW M12 X 1.25 X 70	$12.55	To Order
	239034	SCREW M12 X 1.25 X 20	$13.44	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	10732531	WASHER	$3.40	To Order
	239033	WASHER 30 X 5 X 14MM	$6.01	To Order
	239032	WASHER 34 X 5 X 12	$6.01	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13217434	SCREW M12 X 1.25 X 35	$9.21	To Order

Photo	Part No	Description	Price (each)	Stock
	12646934	WASHER D.12.2-28	$2.63	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	980139619	FRONT SUSPENSION FRAME ASSEMBLY	980139619 FRONT SUSPENSION FRAME ASSEMBLY For cars with spacers (Draw 6.10 Pos. 23) replace also the screws for rear fixing front upper levers (See Draw 6.10 Pos. 21)	$4,053.31	1
1	980139619	FRONT SUSPENSION FRAME ASSEMBLY	980139619 FRONT SUSPENSION FRAME ASSEMBLY Replace also fixing for frame and lower levers - Valid till car Ass. Nr. 34853	$4,053.31	1
1	239053	FRONT SUSPENSION FRAME ASSEMBLY	239053 FRONT SUSPENSION FRAME ASSEMBLY Valid from car Ass. Nr. 34854	$3,513.75	1

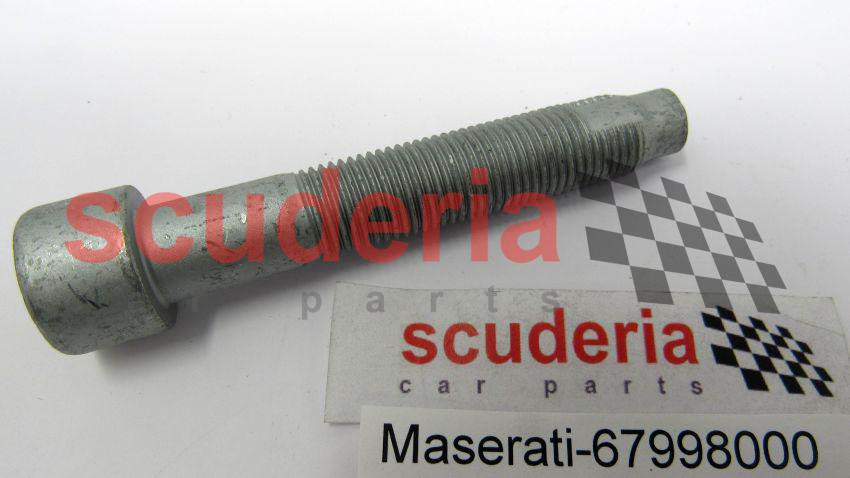

2	67998000	SCREW M12 X 1.25 X 70	67998000 SCREW M12 X 1.25 X 70	$12.55 MSRP: ~~13.72~~ (8.5% off)	6
2	67998000	SCREW M12 X 1.25 X 70	67998000 SCREW M12 X 1.25 X 70 Valid only for cars with front frame assembly 980139619 - Valid till car Ass. Nr. 34853	$12.55 MSRP: ~~13.72~~ (8.5% off)	2
2	239034	SCREW M12 X 1.25 X 20	239034 SCREW M12 X 1.25 X 20 Valid only for cars with front frame assembly 980139619 - Valid till car Ass. Nr. 34853	$13.44 MSRP: ~~13.72~~ (2% off)	4
2	67998000	SCREW M12 X 1.25 X 70	67998000 SCREW M12 X 1.25 X 70 Valid from car Ass. Nr. 34854	$12.55 MSRP: ~~13.72~~ (8.5% off)	2
2	239034	SCREW M12 X 1.25 X 20	239034 SCREW M12 X 1.25 X 20 Valid from car Ass. Nr. 34854	$13.44 MSRP: ~~13.72~~ (2% off)	4
3	10732531	WASHER	10732531 WASHER	$3.40	6
3	239033	WASHER 30 X 5 X 14MM	239033 WASHER 30 X 5 X 14MM Valid only for cars with front frame assembly 980139619 - Valid till car Ass. Nr. 34853	$6.01 MSRP: ~~6.13~~ (2% off)	2
3	239032	WASHER 34 X 5 X 12	239032 WASHER 34 X 5 X 12 Valid only for cars with front frame assembly 980139619 - Valid till car Ass. Nr. 34853	$6.01 MSRP: ~~6.90~~ (12.9% off)	4
3	239033	WASHER 30 X 5 X 14MM	239033 WASHER 30 X 5 X 14MM Valid from car Ass. Nr. 34854	$6.01 MSRP: ~~6.13~~ (2% off)	2
3	239032	WASHER 34 X 5 X 12	239032 WASHER 34 X 5 X 12 Valid from car Ass. Nr. 34854	$6.01 MSRP: ~~6.90~~ (12.9% off)	4

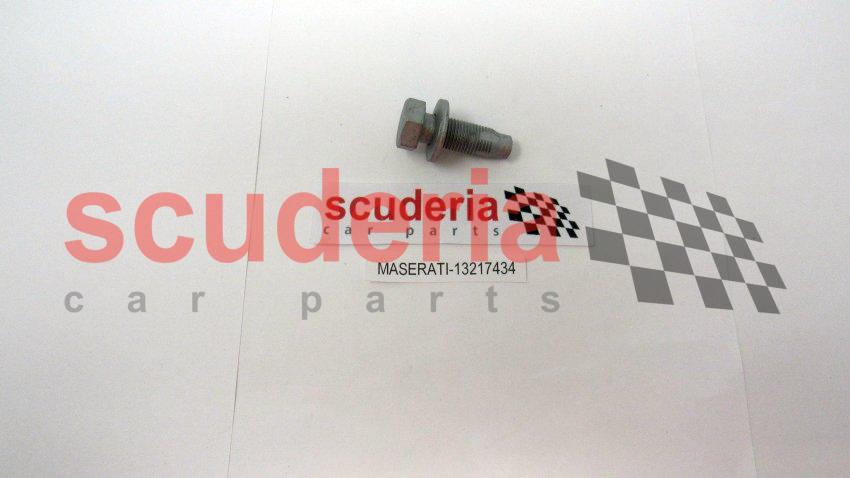

4	13217434	SCREW M12 X 1.25 X 35	13217434 SCREW M12 X 1.25 X 35 M12X1,25X35	$9.21	2

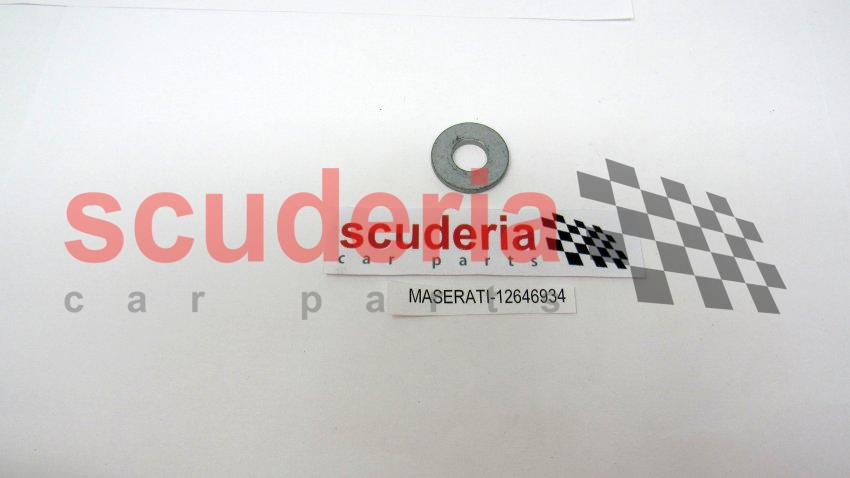

5	12646934	WASHER D.12.2-28	12646934 WASHER D.12.2-28 D. 12.2 -28X 3	$2.63	2
