FRONT SUSPENSION of Maserati Maserati Quattroporte (2003-2007) DuoSelect

View All

Maserati Quattroporte (2003-2007) DuoSelect - FRONT SUSPENSION

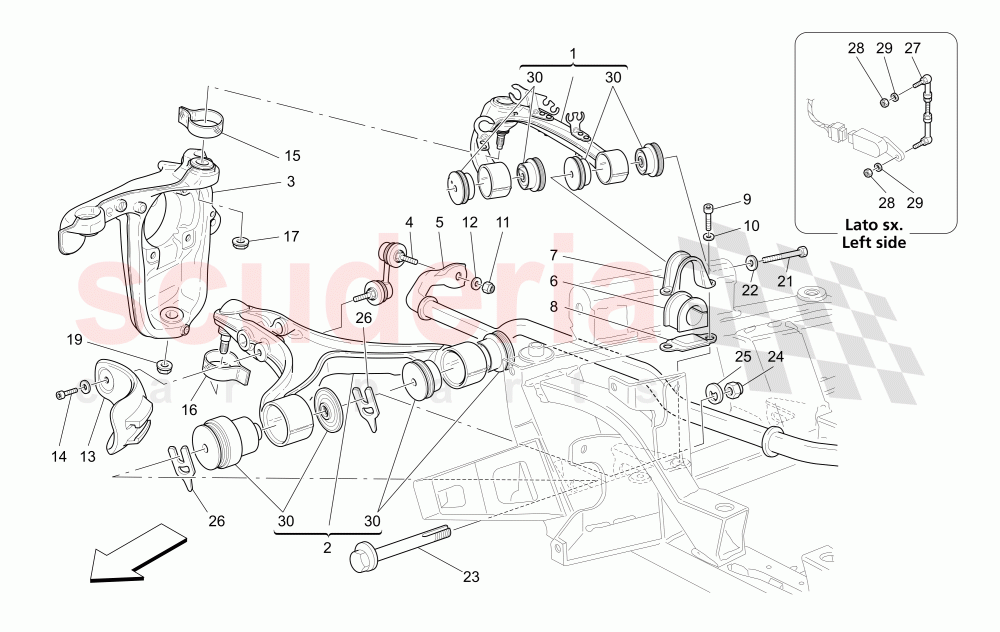

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	259573	Ball Tie Rod	Enquire	ARRIVING SOON
	259572	RH Front / LH Rear Roll Bar Link	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	199126	STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

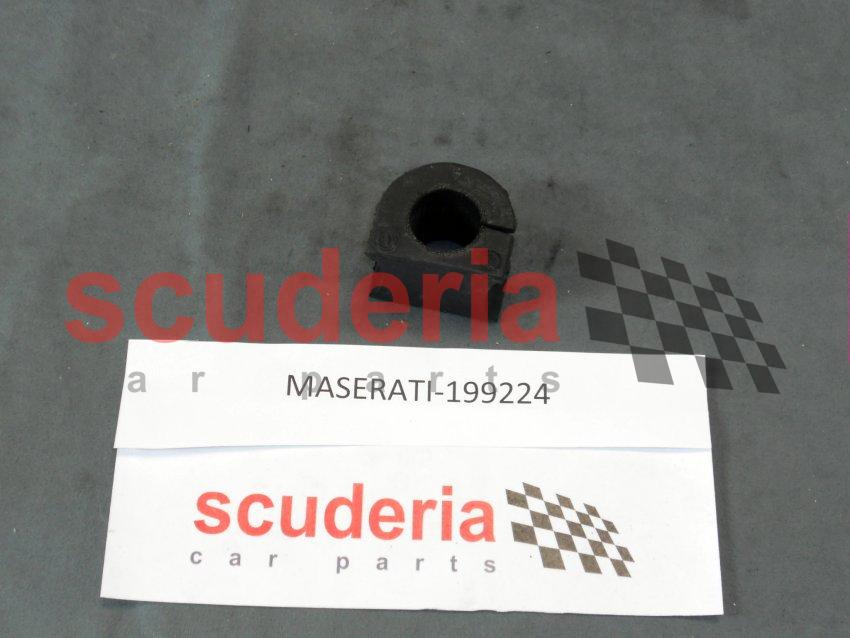

	199224	Roll Bar Rubber Bush	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	271290	UPPER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271288	LOWER SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14307534	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10x1.25x10	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	Wavy Washer 10mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198405	AIR FLOW FLAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	202013	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	386600416	Joint Protection	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	386600416	Joint Protection	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	149807	NUT	Enquire	To Order
	245240	FLANGED NUT M14 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203795	Nut M14 x 1.5	Enquire	To Order
	245240	FLANGED NUT M14 X 1.5	Enquire	To Order
	247308	NUT FOR SUSPENSION LEVER ADJUSTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15977934	SCREW - VALID FOR USA & CANADA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550634	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

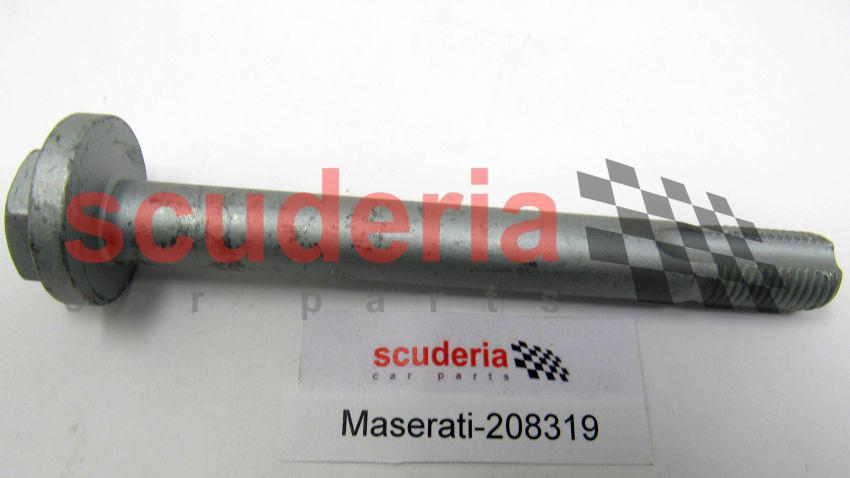

	208319	SCREW	Enquire	To Order

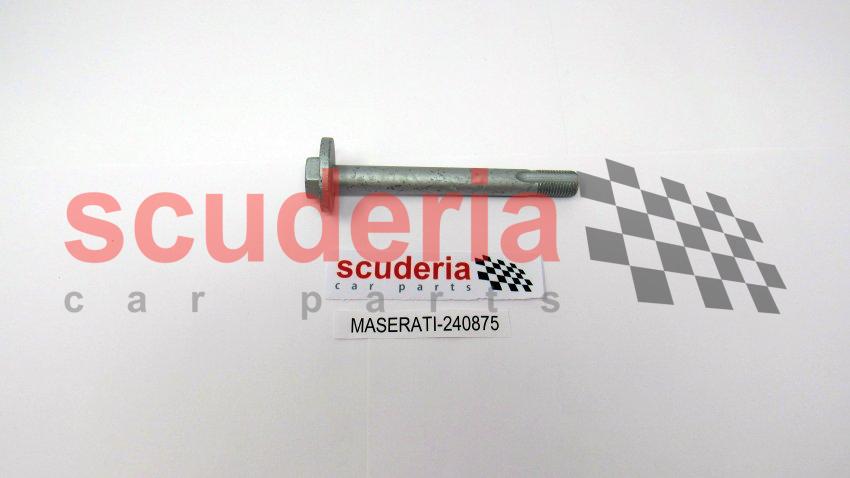

	240875	Bolt Hex Head Eccentric	Enquire	To Order
	240875	Bolt Hex Head Eccentric	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	203795	Nut M14 x 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194222	WASHER	Enquire	To Order
	240877	Washer (Eccentric)	Enquire	To Order
	240877	Washer (Eccentric)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198038	SPACER 0.5MM	Enquire	To Order
	198039	SPACER 0.75MM	Enquire	To Order
	198040	SPACER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock

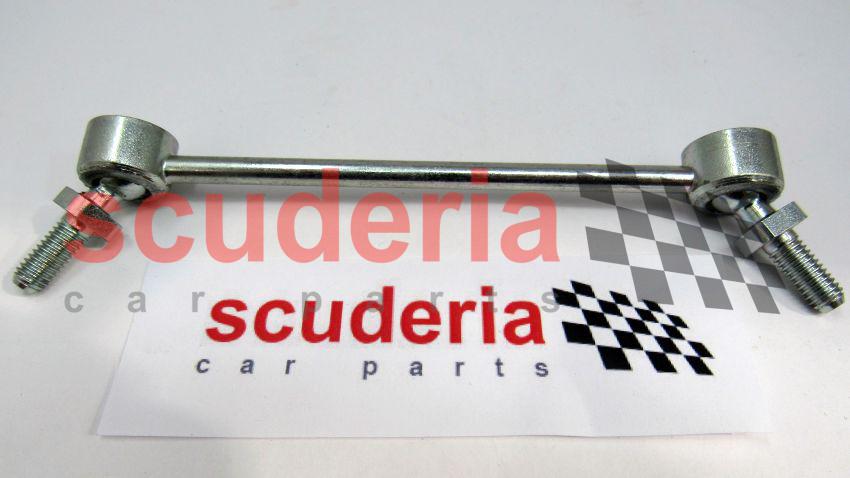

	188629	TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14039614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498824	WASHERD.6.4-16.3X1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

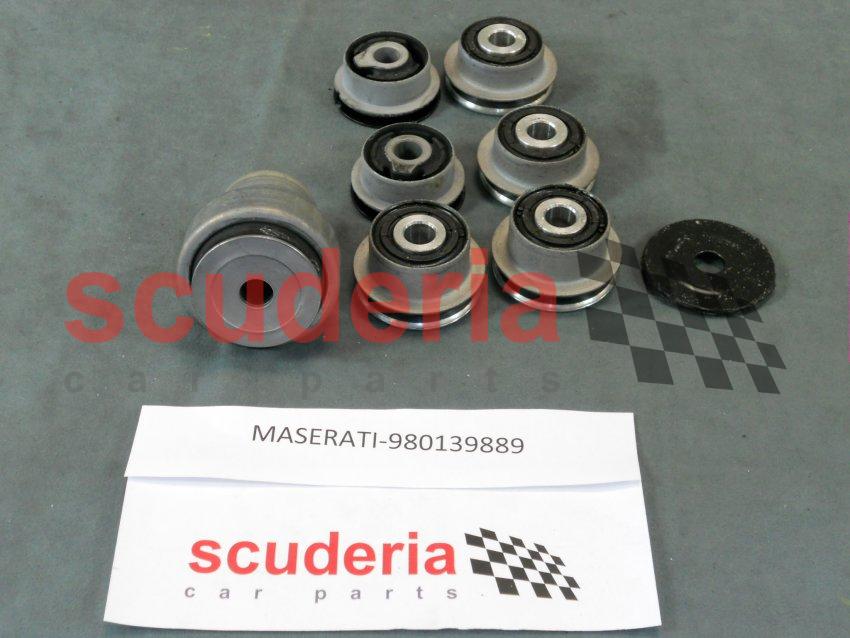

	980139889	Front Suspension Silent Bloc Kit	Enquire	ARRIVING SOON

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart

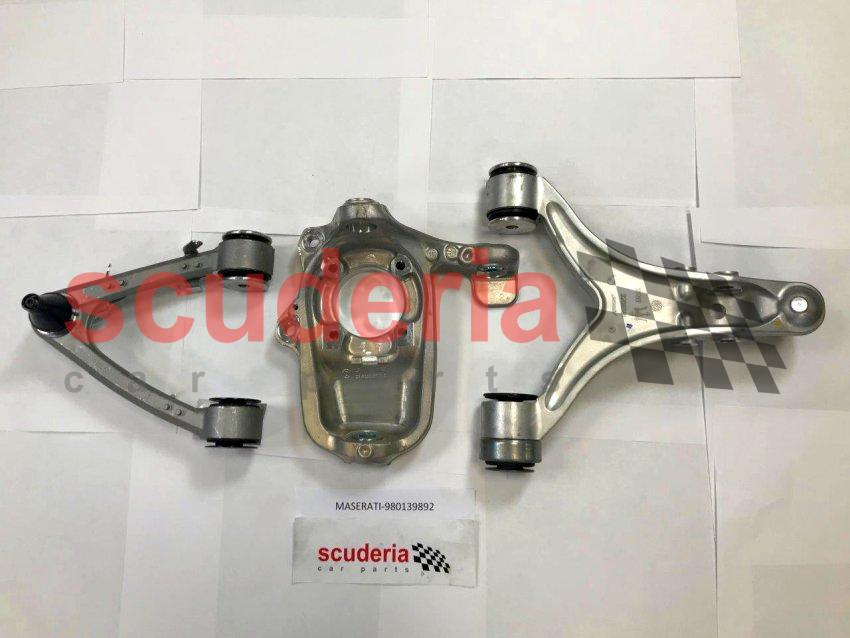

-	980139892	LH Front Suspension Kit	980139892 LH Front Suspension Kit	-	1	Enquire

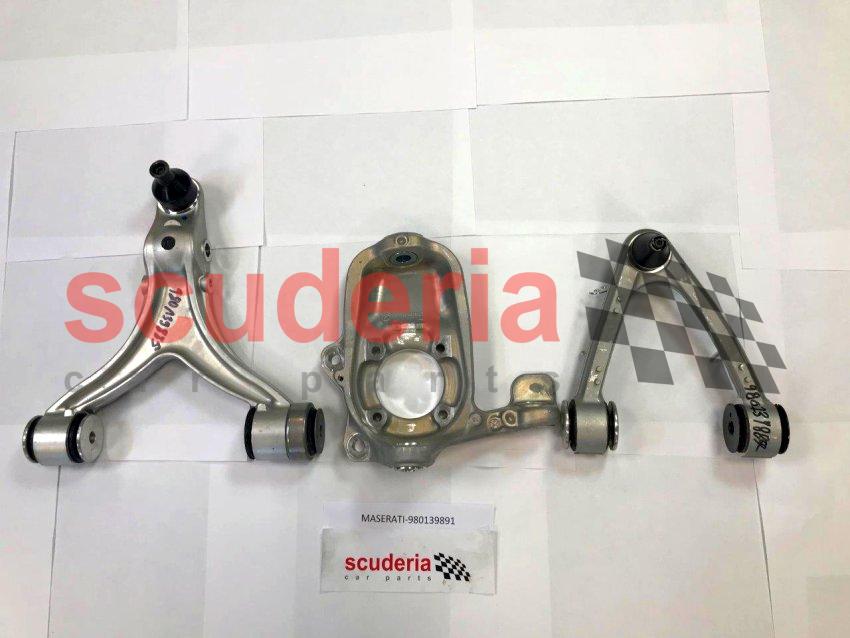

-	980139891	RH Front Suspension Kit	980139891 RH Front Suspension Kit	-	1	Enquire
4	259573	Ball Tie Rod ARRIVING SOON	259573 Ball Tie Rod L.h. side ARRIVING SOON	-	1	Enquire
4	259572	RH Front / LH Rear Roll Bar Link	259572 RH Front / LH Rear Roll Bar Link R.h. side	-	1	Enquire
5	199126	STABILIZER BAR	199126 STABILIZER BAR	-	1	Enquire
6	199224	Roll Bar Rubber Bush ARRIVING SOON	199224 Roll Bar Rubber Bush ARRIVING SOON	-	2	Enquire
7	271290	UPPER SUPPORT	271290 UPPER SUPPORT	-	2	Enquire
8	271288	LOWER SUPPORT	271288 LOWER SUPPORT	-	2	Enquire
9	14307534	SCREW	14307534 SCREW	-	4	Enquire
10	12604574	WASHER	12604574 WASHER	-	4	Enquire
11	102742	Nyloc Nut M10x1.25x10	102742 Nyloc Nut M10x1.25x10	-	2	Enquire
12	12601474	Wavy Washer 10mm	12601474 Wavy Washer 10mm D.10,50-21X 1,0	-	4	Enquire
13	198405	AIR FLOW FLAP	198405 AIR FLOW FLAP	-	2	Enquire
14	202013	SCREW	202013 SCREW	-	2	Enquire
15	386600416	Joint Protection ARRIVING SOON	386600416 Joint Protection ARRIVING SOON	-	2	Enquire
16	386600416	Joint Protection ARRIVING SOON	386600416 Joint Protection ARRIVING SOON	-	2	Enquire
17	149807	NUT	149807 NUT Valid for cars with suspensions kit 900027689/900027690 (Pos.0)	-	2	Enquire
17	245240	FLANGED NUT M14 X 1.5	245240 FLANGED NUT M14 X 1.5 Valid for cars with suspensions kit 900027749/900027750 (Pos.0)	-	2	Enquire
19	203795	Nut M14 x 1.5	203795 Nut M14 x 1.5 Valid for cars with suspensions kit 900027689/900027690 (Pos.0)	-	2	Enquire
19	245240	FLANGED NUT M14 X 1.5	245240 FLANGED NUT M14 X 1.5 Valid for cars with suspensions kit 900027749/900027750 (Pos.0)	-	2	Enquire
19	247308	NUT FOR SUSPENSION LEVER ADJUSTING	247308 NUT FOR SUSPENSION LEVER ADJUSTING Use only pretightening	-	1	Enquire
21	15977934	SCREW - VALID FOR USA & CANADA	15977934 SCREW - VALID FOR USA & CANADA	-	4	Enquire
22	13550634	WASHER	13550634 WASHER	-	4	Enquire
23	208319	SCREW	208319 SCREW Front fixing - Valid till car Ass. Nr. 34853	-	2	Enquire
23	240875	Bolt Hex Head Eccentric	240875 Bolt Hex Head Eccentric Front fixing - Valid only for cars with front frame assembly 980139619 - Valid till car Ass. Nr. 34853	-	2	Enquire
23	240875	Bolt Hex Head Eccentric	240875 Bolt Hex Head Eccentric Front fixing - Valid from car Ass. Nr. 34854	-	2	Enquire
23	208320	SCREW	208320 SCREW Rear fixing - Valid till car Ass. Nr. 34853	-	2	Enquire
23	240876	BOLT HEX HEAD ECCENTRIC	240876 BOLT HEX HEAD ECCENTRIC Rear fixing - Valid only for cars with front frame assembly 980139619 - Valid till car Ass. Nr. 34853	-	2	Enquire
23	240876	BOLT HEX HEAD ECCENTRIC	240876 BOLT HEX HEAD ECCENTRIC Rear fixing - Valid from car Ass. Nr. 34854	-	2	Enquire
24	203795	Nut M14 x 1.5	203795 Nut M14 x 1.5	-	4	Enquire
25	194222	WASHER	194222 WASHER Valid till car Ass. Nr. 34853	-	4	Enquire
25	240877	Washer (Eccentric)	240877 Washer (Eccentric) Valid only for cars with front frame assembly 980139619 - Valid till car Ass. Nr. 34853	-	4	Enquire
25	240877	Washer (Eccentric)	240877 Washer (Eccentric) Valid from car Ass. Nr. 34854	-	4	Enquire
26	198038	SPACER 0.5MM	198038 SPACER 0.5MM Thickness mm. 0,50	-	8	Enquire
26	198039	SPACER 0.75MM	198039 SPACER 0.75MM Thickness mm. 0,75	-	8	Enquire
26	198040	SPACER	198040 SPACER Thickness mm. 1,00	-	8	Enquire
26	198041	SPACER 1.75MM	198041 SPACER 1.75MM Thickness mm. 1,75	-	8	Enquire
26	198042	SPACER	198042 SPACER Thickness mm. 3,00	-	8	Enquire
27	188629	TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER	188629 TIE ROD FOR LIGHT ADJUSTING POTENTIOMETER	-	1	Enquire
28	14039614	NUT	14039614 NUT	-	2	Enquire
29	14498824	WASHERD.6.4-16.3X1	14498824 WASHERD.6.4-16.3X1 D.6.4-16.3X1	-	2	Enquire
30	980139889	Front Suspension Silent Bloc Kit ARRIVING SOON	980139889 Front Suspension Silent Bloc Kit ARRIVING SOON	-	2	Enquire
