COOLING: AIR RADIATORS AND DUCTS

Find Your Part

Maserati Quattroporte (2013-2016) Diesel - COOLING: AIR RADIATORS AND DUCTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670109996 WATER RADIATOR $799.44 To Order
Photo Part No Description Price (each) Stock
670001324 RH BRACKET FOR UPPER FIXING WATER RADIATOR $29.73 To Order
Photo Part No Description Price (each) Stock
670107327 FLEXIBLE PAD $77.35 To Order
Photo Part No Description Price (each) Stock
670001323 LH BRACKET FOR UPPER FIXING WATER RADIATOR $29.73 To Order
Photo Part No Description Price (each) Stock
670005012 UPPER COVER $76.64 To Order
Photo Part No Description Price (each) Stock
670005011 LOWER COVER $59.02 To Order
Photo Part No Description Price (each) Stock
673002267 AIR DUCT $516.31 To Order
673002267 AIR DUCT $516.31 To Order
673000014 Air Duct $606.58 To Order
Photo Part No Description Price (each) Stock
670005263 AIR DUCT BELLOWS $114.96 To Order
Photo Part No Description Price (each) Stock
670003405 CLIP $51.55 To Order
Photo Part No Description Price (each) Stock
670007664 AIR DUCT $341.36 To Order
Photo Part No Description Price (each) Stock
673000009 BLEEDING AND DEGASSING KIT $61.98 To Order
Photo Part No Description Price (each) Stock
673000013 SCREW $49.16 To Order
Photo Part No Description Price (each) Stock
670102597 850W ELECTROFAN $892.91 To Order
670106014 CPL 650W ELECTROFAN $1,393.52 To Order
670102597 850W ELECTROFAN $892.91 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
673000017 TEMPERATURE SENSOR KIT $113.19 To Order
Photo Part No Description Price (each) Stock
675000354 SCREW $3.22 To Order
Photo Part No Description Price (each) Stock
675000468 SCREW $2.53 To Order
Photo Part No Description Price (each) Stock
673000015 CLIP $61.70 To Order
Photo Part No Description Price (each) Stock
670009556 BUSHING $3.53 To Order
Photo Part No Description Price (each) Stock
670030111 FASTENER BUTTON $25.05 To Order
View All

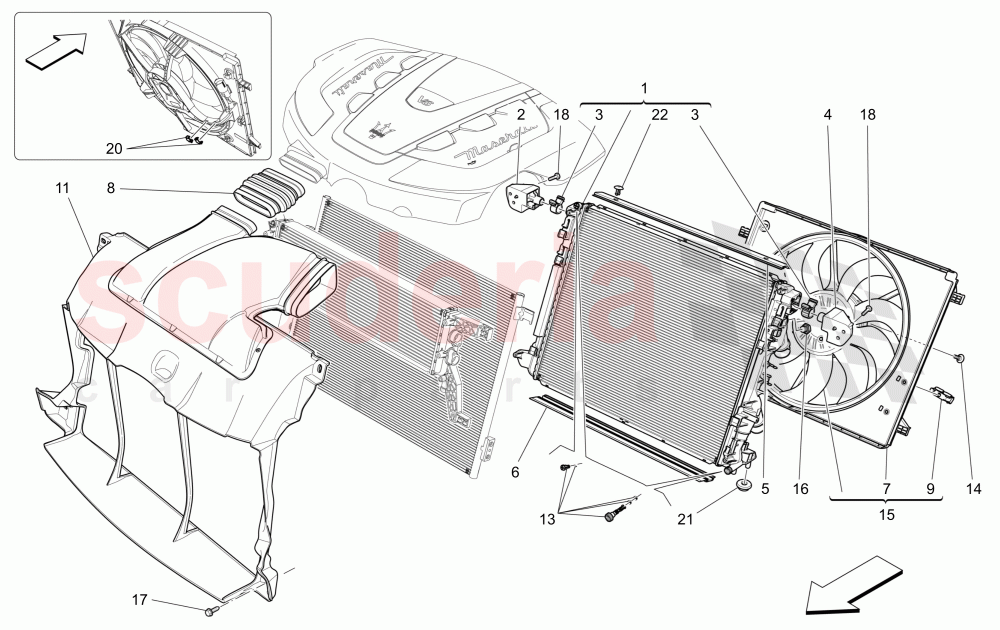

COOLING: AIR RADIATORS AND DUCTS of Maserati Maserati Quattroporte (2013-2016) Diesel Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670109996
WATER RADIATOR 		$799.44 1
2 670001324
RH BRACKET FOR UPPER FIXING WATER RADIATOR 		$29.73 1
3 670107327
FLEXIBLE PAD 		$77.35 2
4 670001323
LH BRACKET FOR UPPER FIXING WATER RADIATOR 		$29.73 1
5 670005012
UPPER COVER 		$76.64 1
6 670005011
LOWER COVER 		$59.02 1
7 673002267
AIR DUCT 		$516.31 1
7 673002267
AIR DUCT
PLASTIC SHROUD AVAILABLE ONLY FOR CPL FAN WITH PN 670003403 		$516.31 1
7 673000014
Air Duct
PLASTIC SHROUD AVAILABLE ONLY FOR CPL FAN WITH PN 670003403 		$606.58 1
8 670005263
AIR DUCT BELLOWS 		$114.96 1
9 670003405
CLIP 		$51.55 1
11 670007664
AIR DUCT 		$341.36 1
13 673000009
BLEEDING AND DEGASSING KIT 		$61.98 1
14 673000013
SCREW 		$49.16 3
15 670102597
850W ELECTROFAN 		$892.91 1
15 670106014
CPL 650W ELECTROFAN 		$1,393.52 1
15 670102597
850W ELECTROFAN
PLEASE, FOR THE CORRECT INSTALLATION OF THE MODULE YOU HAVE TO REMOVE THE x2 CLIPS 670003405 		$892.91 1
15 670106014
CPL 650W ELECTROFAN
PLEASE, FOR THE CORRECT INSTALLATION OF THE MODULE YOU HAVE TO REMOVE THE x2 CLIPS 670003405 		$1,393.52 1
16 673000017
TEMPERATURE SENSOR KIT 		$113.19 1
17 675000354
SCREW 		$3.22 4
18 675000468
SCREW 		$2.53 4
20 673000015
CLIP 		$61.70 2
21 670009556
BUSHING 		$3.53 2
22 670030111
FASTENER BUTTON 		$25.05 4
