TURBOCHARGING SYSTEM: EQUIPMENTS of Maserati Maserati Quattroporte (2013-2016) Diesel

View All

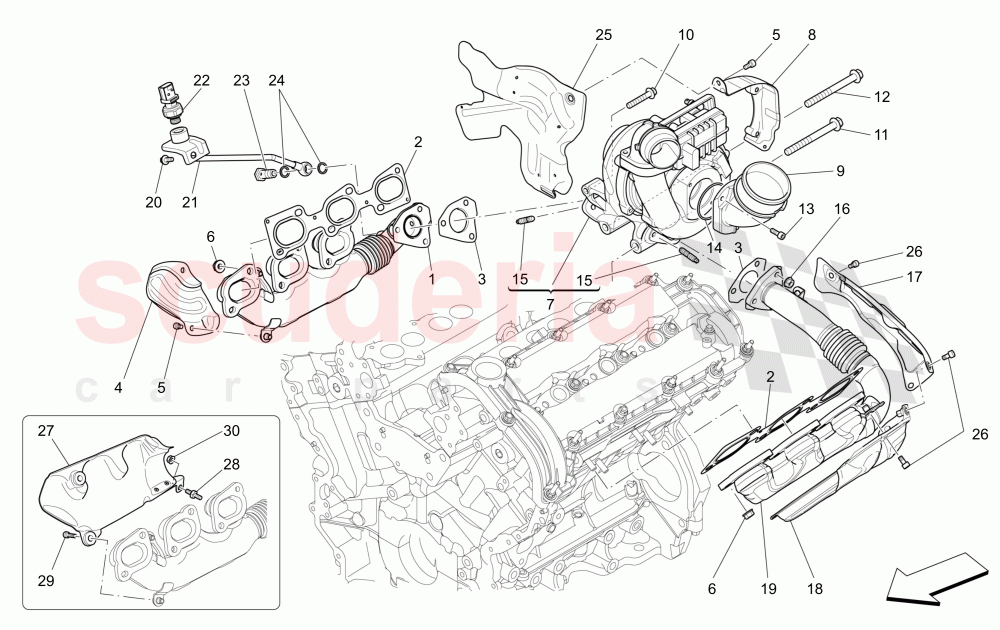

Maserati Quattroporte (2013-2016) Diesel - TURBOCHARGING SYSTEM: EQUIPMENTS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	46328770	123 EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328251	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328252	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673001135	123 HEAT SHIELD	Enquire	To Order
	673003960	123 HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328375	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	55206854	NUT	Enquire	To Order
	675000566	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328211	TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328222	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328212	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328733	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328734	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328735	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328213	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328358	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673001176	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	55206854	NUT	Enquire	To Order
	675000566	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328774	456 HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328773	456 HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328771	456 EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328685	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328324	AIR PRESSURE SENSOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328326	EXHAUST PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328782	FILLER NECK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328325	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328220	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328375	SCREW	Enquire	To Order
	46328732	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328264	123 HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328262	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328730	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673001753	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	46328770	123 EXHAUST MANIFOLD	46328770 123 EXHAUST MANIFOLD	-	1	Enquire
2	46328251	GASKET	46328251 GASKET	-	2	Enquire
3	46328252	GASKET	46328252 GASKET	-	2	Enquire
4	673001135	123 HEAT SHIELD	673001135 123 HEAT SHIELD	-	1	Enquire
4	673003960	123 HEAT SHIELD	673003960 123 HEAT SHIELD	-	1	Enquire
5	46328375	SCREW	46328375 SCREW	-	6	Enquire
6	55206854	NUT	55206854 NUT	-	18	Enquire
6	675000566	NUT	675000566 NUT	-	18	Enquire
7	46328211	TURBOCHARGER	46328211 TURBOCHARGER	-	1	Enquire
8	46328222	HEAT SHIELD	46328222 HEAT SHIELD	-	1	Enquire
9	46328212	SLEEVE	46328212 SLEEVE	-	1	Enquire
10	46328733	SCREW	46328733 SCREW	-	1	Enquire
11	46328734	SCREW	46328734 SCREW	-	1	Enquire
12	46328735	SCREW	46328735 SCREW	-	1	Enquire
13	46328213	SCREW	46328213 SCREW	-	4	Enquire
14	46328358	O.R. GASKET	46328358 O.R. GASKET	-	1	Enquire
15	673001176	STUD	673001176 STUD	-	6	Enquire
16	55206854	NUT	55206854 NUT	-	3	Enquire
16	675000566	NUT	675000566 NUT	-	3	Enquire
17	46328774	456 HEAT SHIELD	46328774 456 HEAT SHIELD	-	1	Enquire
18	46328773	456 HEAT SHIELD	46328773 456 HEAT SHIELD	-	1	Enquire
19	46328771	456 EXHAUST MANIFOLD	46328771 456 EXHAUST MANIFOLD	-	1	Enquire
20	46328685	SCREW	46328685 SCREW	-	1	Enquire
21	46328324	AIR PRESSURE SENSOR PIPE	46328324 AIR PRESSURE SENSOR PIPE	-	1	Enquire
22	46328326	EXHAUST PRESSURE SENSOR	46328326 EXHAUST PRESSURE SENSOR	-	1	Enquire
23	46328782	FILLER NECK	46328782 FILLER NECK	-	1	Enquire
24	46328325	GASKET	46328325 GASKET	-	2	Enquire
25	46328220	HEAT SHIELD	46328220 HEAT SHIELD	-	1	Enquire
26	46328375	SCREW	46328375 SCREW	-	6	Enquire
26	46328732	SCREW	46328732 SCREW	-	6	Enquire
27	46328264	123 HEAT SHIELD	46328264 123 HEAT SHIELD	-	1	Enquire
28	46328262	STUD	46328262 STUD	-	1	Enquire
29	46328730	SCREW	46328730 SCREW	-	1	Enquire
30	673001753	NUT	673001753 NUT	-	1	Enquire
