A/C UNIT: TUNNEL DEVICES (Available with: FOUR-ZONE AUTOMATIC CLIMA) of Maserati Maserati Quattroporte (2013+) GTS

View All

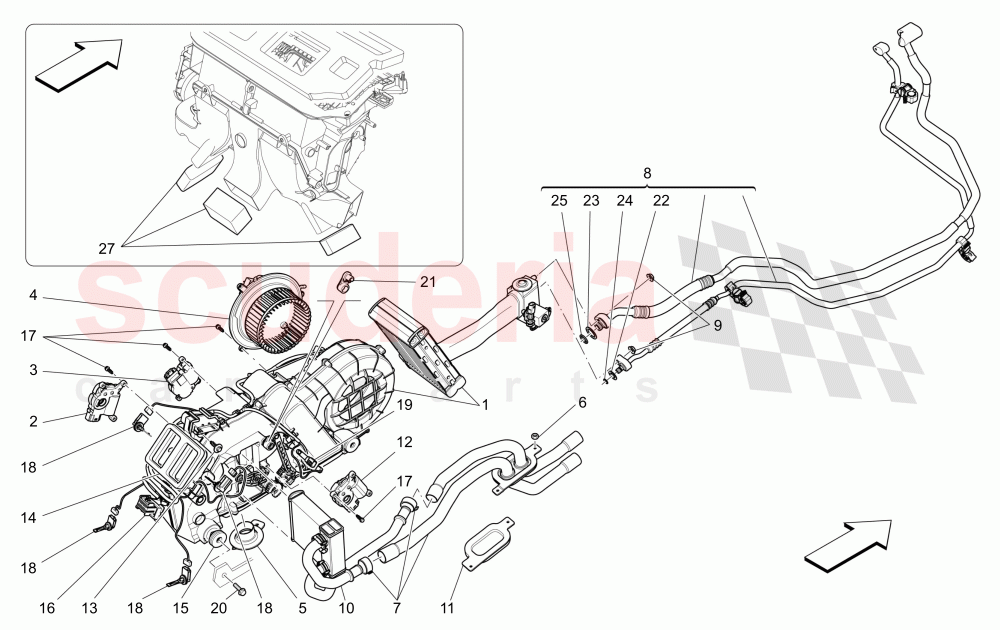

Maserati Quattroporte (2013+) GTS - A/C UNIT: TUNNEL DEVICES (Available with: FOUR-ZONE AUTOMATIC CLIMA)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	673002681	REAR AIR CONDITIONING CASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035896	AIR ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035898	LH ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003710	ELECTROFAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670002045	CONDENSATION DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000093	NUTM6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000043	RUBBER HOSE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670001961	PIPE BETWEEN EVAPOURATOR AND UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000328	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000042	RADIATOR AND PIPES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670005088	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670035897	RH ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000049	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000050	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000044	FASTENING RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673002683	REAR COOLER WIRING HARNESS	Enquire	To Order
	673002682	REAR COOLER WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62771900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000046	AIR SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000045	EVAPORATOR SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000436	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673007371	LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000122	1/2" SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000123	3/4" SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000119	O-RING 68 x 187	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	675000306	O.R. GASKET13,6x2,43	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670009117	PAD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	670035894	REAR AIR CONTIDIONING SYSTEM ASSEMBLY - REAR SEAT BENCH, THREE PLACES	670035894 REAR AIR CONTIDIONING SYSTEM ASSEMBLY - REAR SEAT BENCH, THREE PLACES	-	1	Enquire
-	670030046	REAR AIR CONTIDIONING SYSTEM ASSEMBLY - COMFORT-LUXURY REAR SEATS WITH CENTRAL CONSOLE	670030046 REAR AIR CONTIDIONING SYSTEM ASSEMBLY - COMFORT-LUXURY REAR SEATS WITH CENTRAL CONSOLE	-	1	Enquire
1	673002681	REAR AIR CONDITIONING CASE	673002681 REAR AIR CONDITIONING CASE	-	1	Enquire
2	670035896	AIR ACTUATOR	670035896 AIR ACTUATOR	-	1	Enquire
3	670035898	LH ACTUATOR	670035898 LH ACTUATOR	-	1	Enquire
4	670003710	ELECTROFAN	670003710 ELECTROFAN	-	1	Enquire
5	670002045	CONDENSATION DRAIN PIPE	670002045 CONDENSATION DRAIN PIPE	-	1	Enquire
6	675000093	NUTM6	675000093 NUTM6 M6	-	2	Enquire
7	673000043	RUBBER HOSE ASSEMBLY	673000043 RUBBER HOSE ASSEMBLY	-	1	Enquire

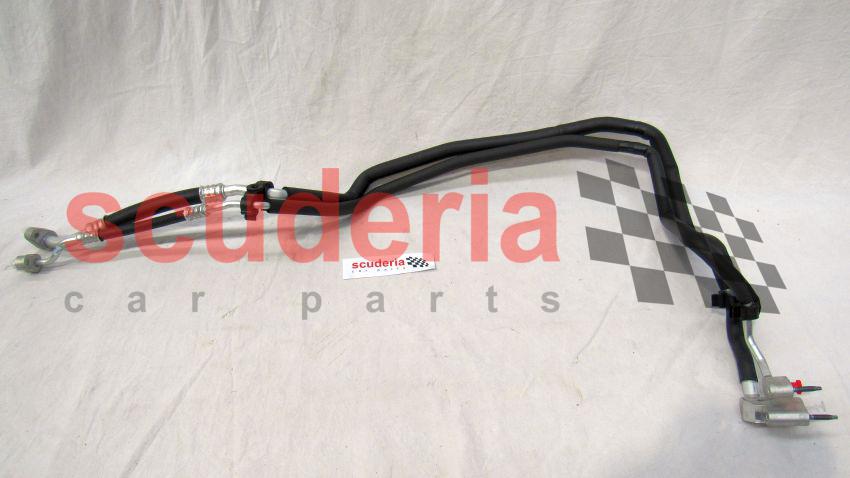

8	670001961	PIPE BETWEEN EVAPOURATOR AND UNION	670001961 PIPE BETWEEN EVAPOURATOR AND UNION	-	1	Enquire
9	675000328	NUT	675000328 NUT	-	2	Enquire
10	673000042	RADIATOR AND PIPES	673000042 RADIATOR AND PIPES	-	1	Enquire
11	670005088	PLUG	670005088 PLUG	-	1	Enquire
12	670035897	RH ACTUATOR	670035897 RH ACTUATOR	-	1	Enquire
13	673000049	SCREW	673000049 SCREW	-	1	Enquire
14	673000050	GASKET	673000050 GASKET	-	1	Enquire
15	673000044	FASTENING RUBBER	673000044 FASTENING RUBBER	-	4	Enquire
16	673002683	REAR COOLER WIRING HARNESS	673002683 REAR COOLER WIRING HARNESS	-	1	Enquire
16	673002682	REAR COOLER WIRING HARNESS	673002682 REAR COOLER WIRING HARNESS	-	1	Enquire
17	62771900	SCREW	62771900 SCREW	-	33	Enquire
18	673000046	AIR SENSOR	673000046 AIR SENSOR	-	4	Enquire
19	673000045	EVAPORATOR SENSOR	673000045 EVAPORATOR SENSOR	-	1	Enquire
20	675000436	SCREW	675000436 SCREW	-	4	Enquire
21	673007371	LEVER	673007371 LEVER	-	2	Enquire
22	675000122	1/2" SEAL	675000122 1/2" SEAL	-	1	Enquire
23	675000123	3/4" SEAL	675000123 3/4" SEAL	-	1	Enquire
24	675000119	O-RING 68 x 187 ARRIVING SOON	675000119 O-RING 68 x 187 6,8x1,87 ARRIVING SOON	-	1	Enquire
25	675000306	O.R. GASKET13,6x2,43	675000306 O.R. GASKET13,6x2,43 13,6x2,43	-	1	Enquire
27	670009117	PAD	670009117 PAD	-	1	Enquire
