A/C UNIT: ENGINE COMPARTMENT DEVICES (Available with: FOUR-ZONE AUTOMATIC CLIMA) of Maserati Maserati Quattroporte (2013+) GTS

View All

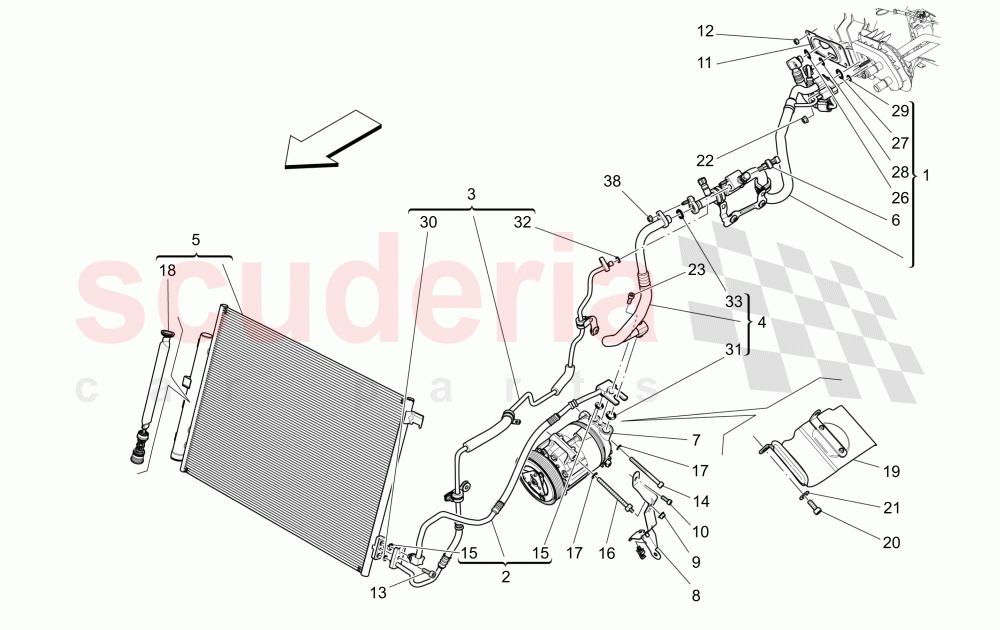

Maserati Quattroporte (2013+) GTS - A/C UNIT: ENGINE COMPARTMENT DEVICES (Available with: FOUR-ZONE AUTOMATIC CLIMA)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670007956	PIPE FROM EVAPOURATOR TO UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670001939	PIPE A.C. - COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003216	PIPE BETWEEN CONDENSER AND JUNCTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670007952	PIPE FROM COMPRESSOR TO UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670009820	AC CONDENSER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	670038668	PRESSOSTAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	954109	Air Conditioning Compressor v8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288682	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUTM6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000314	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670003066	WATER PIPE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000315	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000456	SCREWM8X25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14307224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000122	1/2" SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286687	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHERD.8.4-16X1.4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000010	DEHYDRATOR FILTER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670002170	HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231617	SCREW M6 X 18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000328	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000249	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000306	O.R. GASKET13,6x2,43	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000123	3/4" SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000119	O-RING 68 x 187	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	675000121	3/8" SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000121	3/8" SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000123	3/4" SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000119	O-RING 68 x 187	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	675000306	O.R. GASKET13,6x2,43	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000315	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670007956	PIPE FROM EVAPOURATOR TO UNION	670007956 PIPE FROM EVAPOURATOR TO UNION	-	1	Enquire
2	670001939	PIPE A.C. - COMPRESSOR	670001939 PIPE A.C. - COMPRESSOR	-	1	Enquire
3	670003216	PIPE BETWEEN CONDENSER AND JUNCTION	670003216 PIPE BETWEEN CONDENSER AND JUNCTION	-	1	Enquire
4	670007952	PIPE FROM COMPRESSOR TO UNION	670007952 PIPE FROM COMPRESSOR TO UNION	-	1	Enquire
5	670009820	AC CONDENSER ARRIVING SOON	670009820 AC CONDENSER ARRIVING SOON	-	1	Enquire
6	670038668	PRESSOSTAT	670038668 PRESSOSTAT	-	1	Enquire
7	954109	Air Conditioning Compressor v8	954109 Air Conditioning Compressor v8	-	1	Enquire
8	288682	BRACKET	288682 BRACKET	-	1	Enquire
9	14059211	NUTM6	14059211 NUTM6 M6	-	2	Enquire
10	675000314	SCREW	675000314 SCREW	-	1	Enquire
11	670003066	WATER PIPE GASKET	670003066 WATER PIPE GASKET	-	1	Enquire
12	675000315	NUT	675000315 NUT	-	4	Enquire
13	675000456	SCREWM8X25	675000456 SCREWM8X25 M8X25	-	1	Enquire
14	14307224	SCREW	14307224 SCREW	-	1	Enquire
15	675000122	1/2" SEAL	675000122 1/2" SEAL	-	2	Enquire
16	286687	STUD	286687 STUD	-	2	Enquire
17	11193874	WASHERD.8.4-16X1.4	11193874 WASHERD.8.4-16X1.4 D.8.4-16X1.4	-	3	Enquire
18	673000010	DEHYDRATOR FILTER KIT	673000010 DEHYDRATOR FILTER KIT	-	1	Enquire
19	670002170	HEAT SHIELD	670002170 HEAT SHIELD	-	1	Enquire
20	231617	SCREW M6 X 18	231617 SCREW M6 X 18 M6X16	-	3	Enquire
21	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X1.2	-	3	Enquire
22	675000328	NUT	675000328 NUT	-	1	Enquire
23	675000249	SCREW	675000249 SCREW	-	1	Enquire
26	675000306	O.R. GASKET13,6x2,43	675000306 O.R. GASKET13,6x2,43 13,6x2,43	-	1	Enquire
27	675000123	3/4" SEAL	675000123 3/4" SEAL	-	1	Enquire
28	675000119	O-RING 68 x 187 ARRIVING SOON	675000119 O-RING 68 x 187 6,8x1,87 ARRIVING SOON	-	1	Enquire
29	675000121	3/8" SEAL	675000121 3/8" SEAL	-	1	Enquire
30	675000121	3/8" SEAL	675000121 3/8" SEAL	-	1	Enquire
31	675000123	3/4" SEAL	675000123 3/4" SEAL	-	1	Enquire
32	675000119	O-RING 68 x 187 ARRIVING SOON	675000119 O-RING 68 x 187 6,8x1,87 ARRIVING SOON	-	1	Enquire
33	675000306	O.R. GASKET13,6x2,43	675000306 O.R. GASKET13,6x2,43 13,6x2,43	-	1	Enquire
38	675000315	NUT	675000315 NUT	-	2	Enquire
