FUEL PUMPS AND CONNECTION LINES of Maserati Maserati MC20 Leggenda Automatic 3.0 BT V6 2WD 630HP

View All

Maserati MC20 Leggenda Automatic 3.0 BT V6 2WD 630HP - FUEL PUMPS AND CONNECTION LINES (01432)

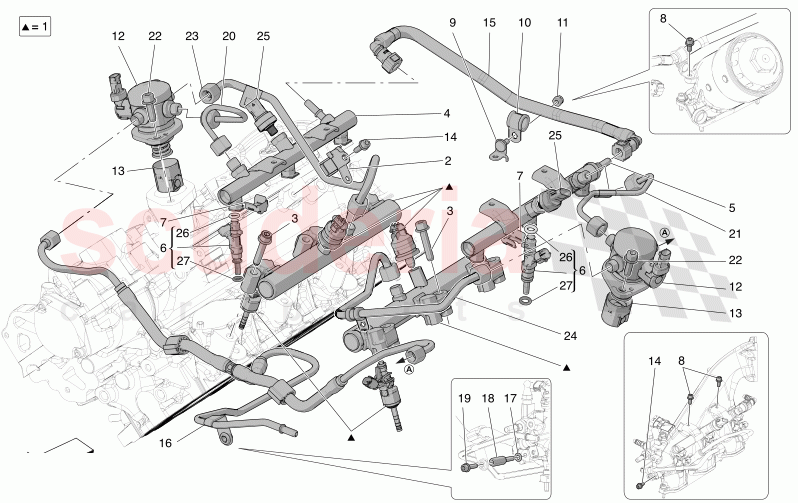

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670054352	HIGH PRESSURE FUEL PIPE WITH INJECTORS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053155	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053443	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053175	RH LOW PRESSURE FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053176	LH LOW PRESSURE FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670052434	INJECTOR ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670052698	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051104	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053146	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001412	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001413	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053151	FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670052831	BOWL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051106	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053228	LOW PRESSURE FUEL CONNECTION PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053229	LOW PRESSURE FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000106	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670050169	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051108	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053355	RH LOW PRESSURE FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670054148	LH LOW PRESSURE FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051450	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053153	RH RAIL-PUMP HIGH-PRESSURE FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053369	LH RAIL-PUMP HIGH-PRESSURE FUEL PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670052629	PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673015364	UPPER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673015365	LOWER GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670054352	HIGH PRESSURE FUEL PIPE WITH INJECTORS	670054352 HIGH PRESSURE FUEL PIPE WITH INJECTORS	-	2	Enquire
2	670053155	BRACKET	670053155 BRACKET	-	1	Enquire
3	670053443	SCREW	670053443 SCREW	-	6	Enquire
4	670053175	RH LOW PRESSURE FUEL PIPE	670053175 RH LOW PRESSURE FUEL PIPE	-	1	Enquire
5	670053176	LH LOW PRESSURE FUEL PIPE	670053176 LH LOW PRESSURE FUEL PIPE	-	1	Enquire
6	670052434	INJECTOR ASSEMBLY	670052434 INJECTOR ASSEMBLY	-	6	Enquire
7	670052698	CLIP	670052698 CLIP	-	6	Enquire
8	670051104	SCREW	670051104 SCREW	-	5	Enquire
9	670053146	BRACKET	670053146 BRACKET	-	1	Enquire
10	675001412	BRACKET WITH SHEATH	675001412 BRACKET WITH SHEATH	-	1	Enquire
11	675001413	NUT	675001413 NUT	-	1	Enquire
12	670053151	FUEL PUMP	670053151 FUEL PUMP	-	2	Enquire
13	670052831	BOWL	670052831 BOWL	-	2	Enquire
14	670051106	SCREW	670051106 SCREW	-	2	Enquire
15	670053228	LOW PRESSURE FUEL CONNECTION PIPE	670053228 LOW PRESSURE FUEL CONNECTION PIPE	-	1	Enquire
16	670053229	LOW PRESSURE FUEL PIPE	670053229 LOW PRESSURE FUEL PIPE	-	1	Enquire
17	675000106	WASHER	675000106 WASHER	-	1	Enquire
18	670050169	SCREW	670050169 SCREW	-	1	Enquire
19	670051108	SCREW	670051108 SCREW	-	1	Enquire
20	670053355	RH LOW PRESSURE FUEL PIPE	670053355 RH LOW PRESSURE FUEL PIPE	-	1	Enquire
21	670054148	LH LOW PRESSURE FUEL PIPE	670054148 LH LOW PRESSURE FUEL PIPE	-	1	Enquire
22	670051450	SCREW	670051450 SCREW	-	4	Enquire
23	670053153	RH RAIL-PUMP HIGH-PRESSURE FUEL PIPE	670053153 RH RAIL-PUMP HIGH-PRESSURE FUEL PIPE	-	1	Enquire
24	670053369	LH RAIL-PUMP HIGH-PRESSURE FUEL PIPE	670053369 LH RAIL-PUMP HIGH-PRESSURE FUEL PIPE	-	1	Enquire
25	670052629	PRESSURE SENSOR	670052629 PRESSURE SENSOR	-	2	Enquire
26	673015364	UPPER GASKET	673015364 UPPER GASKET	-	6	Enquire
27	673015365	LOWER GASKET	673015365 LOWER GASKET	-	6	Enquire
