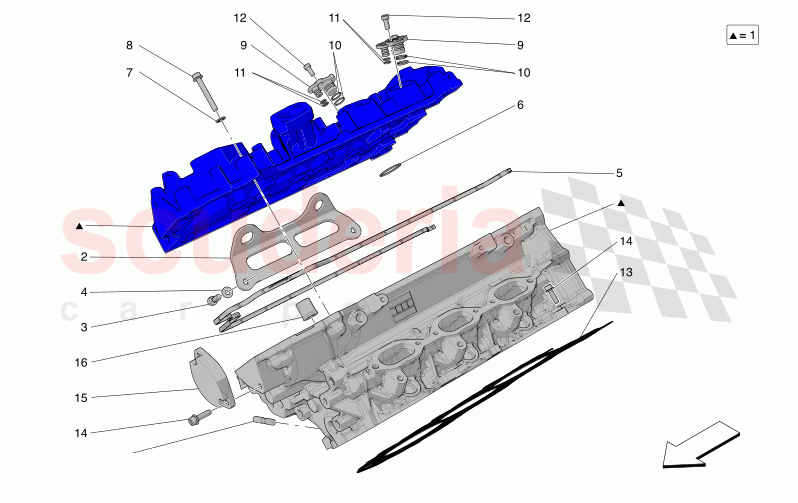

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670054163	RH HEAD ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053971	ENGINE LIFTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001407	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051322	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053272	RH HEAD COVER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001408	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051098	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670050207	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670050180	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001409	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001410	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001411	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670052908	RH HEAD GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670051108	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670053365	RH UPPER STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670050120	FLANGED NUT	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670054163	RH HEAD ASSEMBLY	670054163 RH HEAD ASSEMBLY	-	1	Enquire
2	670053971	ENGINE LIFTING BRACKET	670053971 ENGINE LIFTING BRACKET	-	1	Enquire
3	675001407	SCREW	675001407 SCREW	-	2	Enquire
4	670051322	WASHER	670051322 WASHER	-	2	Enquire
5	670053272	RH HEAD COVER GASKET	670053272 RH HEAD COVER GASKET	-	1	Enquire
6	675001408	O.R. GASKET	675001408 O.R. GASKET	-	6	Enquire
7	670051098	WASHER	670051098 WASHER	-	23	Enquire
8	670050207	SCREW	670050207 SCREW	-	23	Enquire
9	670050180	PLUG	670050180 PLUG	-	2	Enquire
10	675001409	O.R. GASKET	675001409 O.R. GASKET	-	4	Enquire
11	675001410	O.R. GASKET	675001410 O.R. GASKET	-	4	Enquire
12	675001411	SCREW	675001411 SCREW	-	2	Enquire
13	670052908	RH HEAD GASKET	670052908 RH HEAD GASKET	-	1	Enquire
14	670051108	SCREW	670051108 SCREW	-	3	Enquire
15	670053365	RH UPPER STRUT	670053365 RH UPPER STRUT	-	1	Enquire
16	670050120	FLANGED NUT	670050120 FLANGED NUT	-	8	Enquire
