EXTERNAL COVERING of Maserati Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP

View All

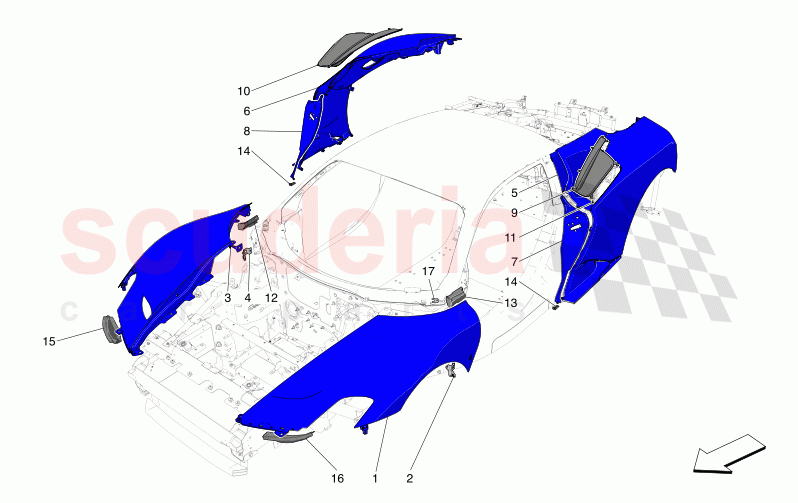

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP - EXTERNAL COVERING (09061)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670156859	FRONT LH MUDGUARD ASSEMBLY	Enquire	To Order
	670215907	FRONT LH MUDGUARD ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670181249	LH MUDGUARD BRACKET FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670215904	FRONT RH MUDGUARD ASSEMBLY	Enquire	To Order
	670156448	FRONT RH MUDGUARD ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670181248	RH MUDGUARD BRACKET MUDGUARD FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670216033	CPL. LH. REAR MUDGUARD	Enquire	To Order
	670216038	CPL. LH. REAR MUDGUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670215953	CPL. RH. REAR MUDGUARD	Enquire	To Order
	670216029	CPL. RH. REAR MUDGUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670182194	COMPLETE L.H. REAR LATERAL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670182193	COMPLETE R.H. REAR LATERAL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T3419091C	VOLANTE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4T0419091M	STEERING WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670176445	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670178131	PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670178394	PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670213029	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670175009	RH SIDE REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670175010	LH SIDE REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673012893	FRONT MUDGUARD SPACER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670156859	FRONT LH MUDGUARD ASSEMBLY	670156859 FRONT LH MUDGUARD ASSEMBLY Not available with: Technical Specification for Flex Pack, GT2S LOUVERED FENDERS, GT2S LOUVERED FENDERS CARBON LOOK; EU AU CN US CD UK ME SA;	-	1	Enquire
1	670215907	FRONT LH MUDGUARD ASSEMBLY	670215907 FRONT LH MUDGUARD ASSEMBLY Available with: Technical Specification for Flex Pack Not available with: GT2S LOUVERED FENDERS, GT2S LOUVERED FENDERS CARBON LOOK;	-	1	Enquire
2	670181249	LH MUDGUARD BRACKET FIXING	670181249 LH MUDGUARD BRACKET FIXING	-	1	Enquire
3	670215904	FRONT RH MUDGUARD ASSEMBLY	670215904 FRONT RH MUDGUARD ASSEMBLY Available with: Technical Specification for Flex Pack Not available with: GT2S LOUVERED FENDERS, GT2S LOUVERED FENDERS CARBON LOOK;	-	1	Enquire
3	670156448	FRONT RH MUDGUARD ASSEMBLY	670156448 FRONT RH MUDGUARD ASSEMBLY Not available with: Technical Specification for Flex Pack, GT2S LOUVERED FENDERS, GT2S LOUVERED FENDERS CARBON LOOK; EU AU CN US CD UK ME;	-	1	Enquire
4	670181248	RH MUDGUARD BRACKET MUDGUARD FIXING	670181248 RH MUDGUARD BRACKET MUDGUARD FIXING	-	1	Enquire
5	670216033	CPL. LH. REAR MUDGUARD	670216033 CPL. LH. REAR MUDGUARD Not available with: UNDER DOOR AND FENDER SILL INSERTS IN CARBON FIBER, GT2 STRADALE IDENTIFICATION;	-	1	Enquire
5	670216038	CPL. LH. REAR MUDGUARD	670216038 CPL. LH. REAR MUDGUARD Available with: UNDER DOOR AND FENDER SILL INSERTS IN CARBON FIBER Not available with: GT2 STRADALE IDENTIFICATION;	-	1	Enquire
6	670215953	CPL. RH. REAR MUDGUARD	670215953 CPL. RH. REAR MUDGUARD Not available with: UNDER DOOR AND FENDER SILL INSERTS IN CARBON FIBER, GT2 STRADALE IDENTIFICATION;	-	1	Enquire
6	670216029	CPL. RH. REAR MUDGUARD	670216029 CPL. RH. REAR MUDGUARD Available with: UNDER DOOR AND FENDER SILL INSERTS IN CARBON FIBER Not available with: GT2 STRADALE IDENTIFICATION;	-	1	Enquire
7	670182194	COMPLETE L.H. REAR LATERAL SEAL	670182194 COMPLETE L.H. REAR LATERAL SEAL	-	1	Enquire
8	670182193	COMPLETE R.H. REAR LATERAL SEAL	670182193 COMPLETE R.H. REAR LATERAL SEAL	-	1	Enquire
9	4T3419091C	VOLANTE	4T3419091C VOLANTE Not available with: GT2 STRADALE IDENTIFICATION;	-	1	Enquire
10	4T0419091M	STEERING WHEEL	4T0419091M STEERING WHEEL Not available with: GT2 STRADALE IDENTIFICATION;	-	1	Enquire
11	670176445	SCREW	670176445 SCREW Not available with: GT2 STRADALE IDENTIFICATION;	-	14	Enquire
12	670178131	PAD	670178131 PAD	-	1	Enquire
13	670178394	PAD	670178394 PAD	-	1	Enquire
14	670213029	PLATE	670213029 PLATE	-	2	Enquire
15	670175009	RH SIDE REINFORCEMENT	670175009 RH SIDE REINFORCEMENT	-	1	Enquire
16	670175010	LH SIDE REINFORCEMENT	670175010 LH SIDE REINFORCEMENT	-	1	Enquire
17	673012893	FRONT MUDGUARD SPACER	673012893 FRONT MUDGUARD SPACER Variable Quantity;	-	-	Enquire
