WHEELHOUSE AND LIDS of Maserati Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP

View All

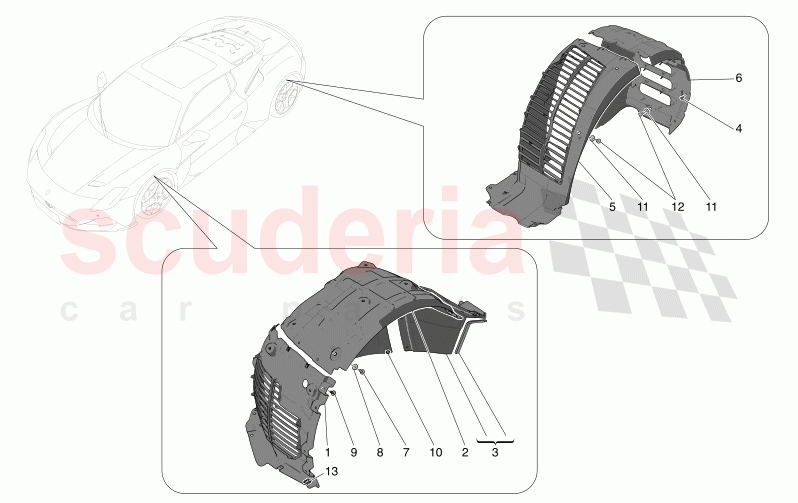

Maserati MC20 Icona Automatic 3.0 BT V6 2WD 630HP - WHEELHOUSE AND LIDS (09131)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670157548	RH FRONT WHEELHOUSE GUARD, FRONT SIDE	Enquire	To Order
	670157547	LH FRONT WHEELHOUSE GUARD, FRONT SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670213671	RH FRONT WHEELHOUSE GUARD, REAR SIDE	Enquire	To Order
	670213670	LH FRONT WHEELHOUSE GUARD, REAR SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670215256	RH FRONT WHEELHOUSE GUARD	Enquire	To Order
	670215255	LH FRONT WHEELHOUSE GUARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001390	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670181895	RH REAR WHEELHOUSE GUARD, FRONT SIDE	Enquire	To Order
	670181896	LH REAR WHEELHOUSE GUARD, FRONT SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670181897	RH REAR WHEELHOUSE GUARD, REAR SIDE	Enquire	To Order
	670220489	LH REAR WHEELHOUSE GUARD, REAR SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001383	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001257	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001390	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670214354	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001257	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001383	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670303713	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670157548	RH FRONT WHEELHOUSE GUARD, FRONT SIDE	670157548 RH FRONT WHEELHOUSE GUARD, FRONT SIDE EU AU CN UK JP ME JRH IN KO;	-	1	Enquire
1	670157547	LH FRONT WHEELHOUSE GUARD, FRONT SIDE	670157547 LH FRONT WHEELHOUSE GUARD, FRONT SIDE EU AU CN UK JP ME JRH IN KO;	-	1	Enquire
2	670213671	RH FRONT WHEELHOUSE GUARD, REAR SIDE	670213671 RH FRONT WHEELHOUSE GUARD, REAR SIDE	-	1	Enquire
2	670213670	LH FRONT WHEELHOUSE GUARD, REAR SIDE	670213670 LH FRONT WHEELHOUSE GUARD, REAR SIDE	-	1	Enquire
3	670215256	RH FRONT WHEELHOUSE GUARD	670215256 RH FRONT WHEELHOUSE GUARD	-	1	Enquire
3	670215255	LH FRONT WHEELHOUSE GUARD	670215255 LH FRONT WHEELHOUSE GUARD	-	1	Enquire
4	675001390	SCREW	675001390 SCREW	-	10	Enquire
5	670181895	RH REAR WHEELHOUSE GUARD, FRONT SIDE	670181895 RH REAR WHEELHOUSE GUARD, FRONT SIDE Bespoke Assembly Number 7000643 - 99999999; Not available with: CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE;	-	1	Enquire
5	670181896	LH REAR WHEELHOUSE GUARD, FRONT SIDE	670181896 LH REAR WHEELHOUSE GUARD, FRONT SIDE Bespoke Assembly Number 7000643 - 99999999; Not available with: CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE;	-	1	Enquire
6	670181897	RH REAR WHEELHOUSE GUARD, REAR SIDE	670181897 RH REAR WHEELHOUSE GUARD, REAR SIDE Bespoke Assembly Number 7000643 - 99999999; Not available with: GT2 STRADALE IDENTIFICATION; EU AU CN UK JP ME JRH IN KO;	-	1	Enquire
6	670220489	LH REAR WHEELHOUSE GUARD, REAR SIDE	670220489 LH REAR WHEELHOUSE GUARD, REAR SIDE Bespoke Assembly Number 7000446 - 99999999; Not available with: GT2 STRADALE IDENTIFICATION; EU AU CN UK JP ME JRH IN KO;	-	1	Enquire
7	675001383	SCREW	675001383 SCREW	-	20	Enquire
8	675001257	WASHER	675001257 WASHER	-	20	Enquire
9	675001390	SCREW	675001390 SCREW	-	14	Enquire
10	670214354	NUT	670214354 NUT	-	6	Enquire
11	675001257	WASHER	675001257 WASHER	-	38	Enquire
12	675001383	SCREW	675001383 SCREW	-	38	Enquire
13	670303713	CLIP	670303713 CLIP Bespoke Assembly Number 7002301 - 99999999;	-	4	Enquire
