Underbody And Underfloor Guards

Maserati MC20 GT2 Stradale Automatic 3.0 BT V6 2WD 630HP - 640HP

Illustration Number: 0914

(Available with: GT2 STRADALE IDENTIFICATION)
Find Your Part

Maserati MC20 GT2 Stradale Automatic 3.0 BT V6 2WD 630HP - 640HP - UNDERBODY AND UNDERFLOOR GUARDS (09143)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670158288 FRONT UNDERBODY GUARD Enquire To Order
Photo Part No Description Price (each) Stock
670215318 CENTRAL UNDERFLOOR GUARD Enquire To Order
Photo Part No Description Price (each) Stock
611122538 Auxiliary wiring harness Enquire To Order
670302469 CENTRAL AERODYNAMIC UNDERFLOOR CPL. Enquire To Order
Photo Part No Description Price (each) Stock
670158283 RH CENTER AERODYNAMIC UNDERFLOOR Enquire To Order
Photo Part No Description Price (each) Stock
670158284 LH CENTER AERODYNAMIC UNDERFLOOR Enquire To Order
Photo Part No Description Price (each) Stock
670158810 REAR JACKING PAD Enquire To Order
Photo Part No Description Price (each) Stock
670174913 AIR DAMS Enquire To Order
Photo Part No Description Price (each) Stock
670308847 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
675001364 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
675001045 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
675001383 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
675001257 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
675001252 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
670303713 CLIP Enquire To Order
View All

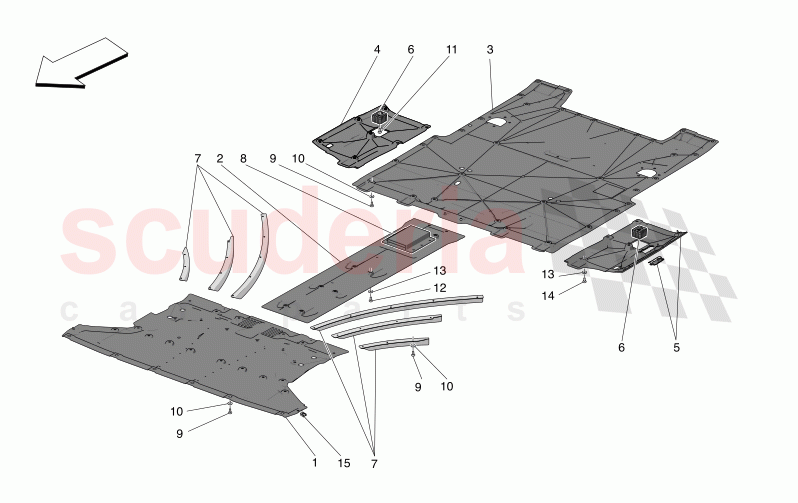

UNDERBODY AND UNDERFLOOR GUARDS of Maserati Maserati MC20 GT2 Stradale Automatic 3.0 BT V6 2WD 630HP - 640HP Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670158288
FRONT UNDERBODY GUARD 		- 1 Enquire
2 670215318
CENTRAL UNDERFLOOR GUARD 		- 1 Enquire
3 611122538
Auxiliary wiring harness
Available with: CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE ; 		- 1 Enquire
3 670302469
CENTRAL AERODYNAMIC UNDERFLOOR CPL.
Not available with: CARBON CERAMIC BRAKES (CCM 2) - PERFORMANCE; 		- 1 Enquire
4 670158283
RH CENTER AERODYNAMIC UNDERFLOOR 		- 1 Enquire
5 670158284
LH CENTER AERODYNAMIC UNDERFLOOR 		- 1 Enquire
6 670158810
REAR JACKING PAD 		- 1 Enquire
7 670174913
AIR DAMS 		- 1 Enquire
9 670308847
SCREW 		- 90 Enquire
10 675001364
WASHER 		- 90 Enquire
11 675001045
SCREW 		- 2 Enquire
12 675001383
SCREW 		- 12 Enquire
13 675001257
WASHER 		- 22 Enquire
14 675001252
SCREW 		- 10 Enquire
15 670303713
CLIP 		- 2 Enquire
