REAR BUMPER of Maserati Maserati MC20 GT2 Stradale Automatic 3.0 BT V6 2WD 630HP - 640HP

View All

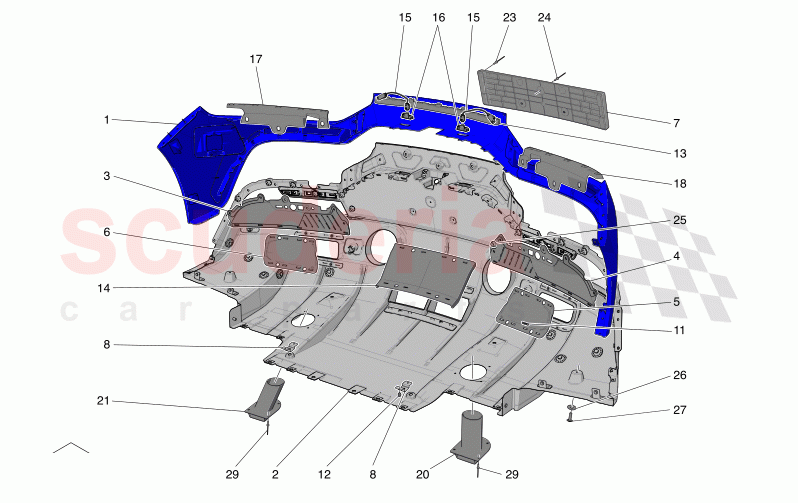

Maserati MC20 GT2 Stradale Automatic 3.0 BT V6 2WD 630HP - 640HP - REAR BUMPER (09112)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4ML857035BBXZ0	STORAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670308842	REAR BUMPER LOWER TRIM	Enquire	To Order
	611122535	Auxiliary wiring harness	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B035465	AMPLIFIER DIAG-ADR: 047	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9Y0321199	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142198	PUMP - ANTI-ROLL CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142202	Compressor - Air Conditioning	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001459	REAR LICENSE HOLDER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670174693	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001379	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001440	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670178703	REAR BUMPER INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142203	Compressor - Air Conditioning	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670182422	REAR LICENSE PLATE LIGHTS CABLES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670161437	NUMBER PLATE ROOF LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670217061	RH REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670217062	LH REAR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670295584	LH AIR INTAKE BULKHEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670295585	RH AIR INTAKE BULKHEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001224	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001364	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670308847	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000531	RIVET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4ML857035BBXZ0	STORAGE	4ML857035BBXZ0 STORAGE EU AU CN UK JP ME JRH IN KO;	-	1	Enquire
2	670308842	REAR BUMPER LOWER TRIM	670308842 REAR BUMPER LOWER TRIM Available with: MATTE CARBON FIBER REAR DIFFUSOR ;	-	1	Enquire
2	611122535	Auxiliary wiring harness	611122535 Auxiliary wiring harness Not available with: MATTE CARBON FIBER REAR DIFFUSOR;	-	1	Enquire
3	47B035465	AMPLIFIER DIAG-ADR: 047	47B035465 AMPLIFIER DIAG-ADR: 047	-	1	Enquire
4	9Y0321199	SEAL	9Y0321199 SEAL	-	1	Enquire
5	LR142198	PUMP - ANTI-ROLL CONTROL	LR142198 PUMP - ANTI-ROLL CONTROL	-	1	Enquire
6	LR142202	Compressor - Air Conditioning	LR142202 Compressor - Air Conditioning	-	1	Enquire
7	675001459	REAR LICENSE HOLDER PLATE	675001459 REAR LICENSE HOLDER PLATE EU AU UK IN KO;	-	1	Enquire
8	670174693	BRACKET	670174693 BRACKET	-	2	Enquire
11	675001379	CLIP	675001379 CLIP	-	24	Enquire
12	675001440	RIVET	675001440 RIVET	-	8	Enquire
13	670178703	REAR BUMPER INSERT	670178703 REAR BUMPER INSERT	-	1	Enquire
14	LR142203	Compressor - Air Conditioning	LR142203 Compressor - Air Conditioning	-	1	Enquire
15	670182422	REAR LICENSE PLATE LIGHTS CABLES	670182422 REAR LICENSE PLATE LIGHTS CABLES	-	2	Enquire
16	670161437	NUMBER PLATE ROOF LIGHT	670161437 NUMBER PLATE ROOF LIGHT	-	1	Enquire
17	670217061	RH REAR BRACKET	670217061 RH REAR BRACKET	-	1	Enquire
18	670217062	LH REAR BRACKET	670217062 LH REAR BRACKET	-	1	Enquire
20	670295584	LH AIR INTAKE BULKHEAD	670295584 LH AIR INTAKE BULKHEAD	-	1	Enquire
21	670295585	RH AIR INTAKE BULKHEAD	670295585 RH AIR INTAKE BULKHEAD	-	1	Enquire
25	675001224	NUT	675001224 NUT	-	12	Enquire
26	675001364	WASHER	675001364 WASHER	-	8	Enquire
27	670308847	SCREW	670308847 SCREW	-	8	Enquire
29	675000531	RIVET	675000531 RIVET	-	8	Enquire
