Cooling System: Nourice And Lines (Available With: Four-Zone Automatic Clima)

Maserati Levante (2017+) Diesel

Find Your Part

Maserati Levante (2017+) Diesel - COOLING SYSTEM: NOURICE AND LINES (Available with: FOUR-ZONE AUTOMATIC CLIMA)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670004150 Liquid Cooling Tank Enquire To Order
Photo Part No Description Price (each) Stock
670003408 HEADER TANK CAP Enquire To Order
Photo Part No Description Price (each) Stock
675000373 COLLARD.12,5 Enquire To Order
Photo Part No Description Price (each) Stock
670033310 VENT PIPE Enquire To Order
Photo Part No Description Price (each) Stock
670033308 RADIATOR WATER INLET PIPE Enquire To Order
Photo Part No Description Price (each) Stock
670107811 WATER OUTLET SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
675000345 SCREW COLLAR D.58 Enquire To Order
Photo Part No Description Price (each) Stock
675000345 SCREW COLLAR D.58 Enquire To Order
Photo Part No Description Price (each) Stock
670007665 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
46328194 WATER DELIVERY SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
46328184 WATER INTAKE SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
46328183 THERMOSTAT VALVE BODY Enquire To Order
Photo Part No Description Price (each) Stock
46328354 O-Ring Enquire To Order
Photo Part No Description Price (each) Stock
46328186 WATER DELIVERY SLEEVE TO HEATING SYS. Enquire To Order
Photo Part No Description Price (each) Stock
675000658 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
46328687 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
46328306 WATER RETURN SLEEVE FROM OIL RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
46328696 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
46328356 O.R. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
46328743 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
46328688 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
46328758 WATER RETURN PIPE ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
46328189 WATER RETURN PIPE FROM EGR ASS. Enquire To Order
Photo Part No Description Price (each) Stock
46328355 O.R. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
670035402 WATER DELIVERY SLEEVE TO HEATING SYS. Enquire To Order
Photo Part No Description Price (each) Stock
46328224 WATER RETURN SLEEVE FROM TURBOCHARGER Enquire To Order
Photo Part No Description Price (each) Stock
670035400 WATER RETURN SLEEVE FROM HEATING SYS. Enquire To Order
Photo Part No Description Price (each) Stock
46328302 WATER RETURN SLEEVE FROM EGR Enquire To Order
Photo Part No Description Price (each) Stock
46328744 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
46328357 O.R. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
46328353 O.R. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
46328742 CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
670002071 WATER RECYCLING PUMP Enquire To Order
Photo Part No Description Price (each) Stock
670031882 WATER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
675000334 COLLARD23,5 Enquire To Order
Photo Part No Description Price (each) Stock
670035403 WATER SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
670035401 WATER SLEEVE Enquire To Order
Photo Part No Description Price (each) Stock
670031850 REAR WATER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
670002070 ON/OFF SOLENOID VALVE Enquire To Order
Photo Part No Description Price (each) Stock
670002637 SOLENOID VALVE BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
675000351 COLLARD.30 Enquire To Order
Photo Part No Description Price (each) Stock
670009570 SOLENOID VALVE GUARD Enquire To Order
Photo Part No Description Price (each) Stock
670006735 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
675000372 COLLARD.20,5 Enquire To Order
675000372 COLLARD.20,5 Enquire To Order
Photo Part No Description Price (each) Stock
46328327 UNION SLEEVE PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
675000351 COLLARD.30 Enquire To Order
Photo Part No Description Price (each) Stock
670006983 NUT Enquire To Order
View All

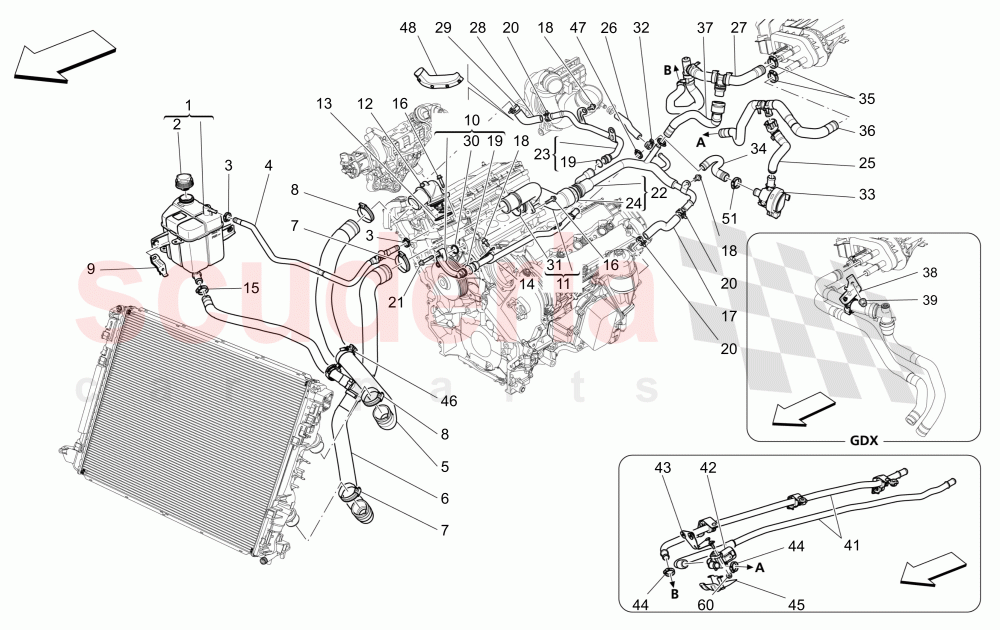

COOLING SYSTEM: NOURICE AND LINES (Available with: FOUR-ZONE AUTOMATIC CLIMA) of Maserati Maserati Levante (2017+) Diesel Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670004150
Liquid Cooling Tank 		- 1 Enquire
2 670003408
HEADER TANK CAP 		- 1 Enquire
3 675000373
COLLARD.12,5
D.12,5 		- 2 Enquire
4 670033310
VENT PIPE 		- 1 Enquire
5 670033308
RADIATOR WATER INLET PIPE 		- 1 Enquire
6 670107811
WATER OUTLET SLEEVE 		- 1 Enquire
7 675000345
SCREW COLLAR D.58
D.58 		- 2 Enquire
8 675000345
SCREW COLLAR D.58
D.58 		- 2 Enquire
9 670007665
BRACKET 		- 1 Enquire
10 46328194
WATER DELIVERY SLEEVE 		- 1 Enquire
11 46328184
WATER INTAKE SLEEVE 		- 1 Enquire
12 46328183
THERMOSTAT VALVE BODY 		- 1 Enquire
13 46328354
O-Ring 		- 1 Enquire
14 46328186
WATER DELIVERY SLEEVE TO HEATING SYS. 		- 1 Enquire
15 675000658
COLLAR 		- 1 Enquire
16 46328687
SCREW 		- 4 Enquire
17 46328306
WATER RETURN SLEEVE FROM OIL RADIATOR 		- 1 Enquire
18 46328696
SCREW 		- 3 Enquire
19 46328356
O.R. GASKET 		- 2 Enquire
20 46328743
CLAMP 		- 3 Enquire
21 46328688
SCREW 		- 2 Enquire
22 46328758
WATER RETURN PIPE ASSEMBLY 		- 1 Enquire
23 46328189
WATER RETURN PIPE FROM EGR ASS. 		- 1 Enquire
24 46328355
O.R. GASKET 		- 1 Enquire
25 670035402
WATER DELIVERY SLEEVE TO HEATING SYS. 		- 1 Enquire
26 46328224
WATER RETURN SLEEVE FROM TURBOCHARGER 		- 1 Enquire
27 670035400
WATER RETURN SLEEVE FROM HEATING SYS. 		- 1 Enquire
28 46328302
WATER RETURN SLEEVE FROM EGR 		- 1 Enquire
29 46328744
CLAMP 		- 1 Enquire
30 46328357
O.R. GASKET 		- 1 Enquire
31 46328353
O.R. GASKET 		- 1 Enquire
32 46328742
CLAMP 		- 1 Enquire
33 670002071
WATER RECYCLING PUMP 		- 1 Enquire
34 670031882
WATER PIPE 		- 1 Enquire
35 675000334
COLLARD23,5
D23,5 		- 2 Enquire
36 670035403
WATER SLEEVE 		- 1 Enquire
37 670035401
WATER SLEEVE 		- 1 Enquire
41 670031850
REAR WATER PIPE 		- 1 Enquire
42 670002070
ON/OFF SOLENOID VALVE 		- 1 Enquire
43 670002637
SOLENOID VALVE BRACKET 		- 1 Enquire
44 675000351
COLLARD.30
D.30 		- 1 Enquire
45 670009570
SOLENOID VALVE GUARD 		- 1 Enquire
46 670006735
CLIP 		- 1 Enquire
47 675000372
COLLARD.20,5 		- 1 Enquire
47 675000372
COLLARD.20,5
D.20,5 		- 1 Enquire
48 46328327
UNION SLEEVE PROTECTION 		- 1 Enquire
51 675000351
COLLARD.30
D.30 		- 4 Enquire
60 670006983
NUT 		- 4 Enquire
