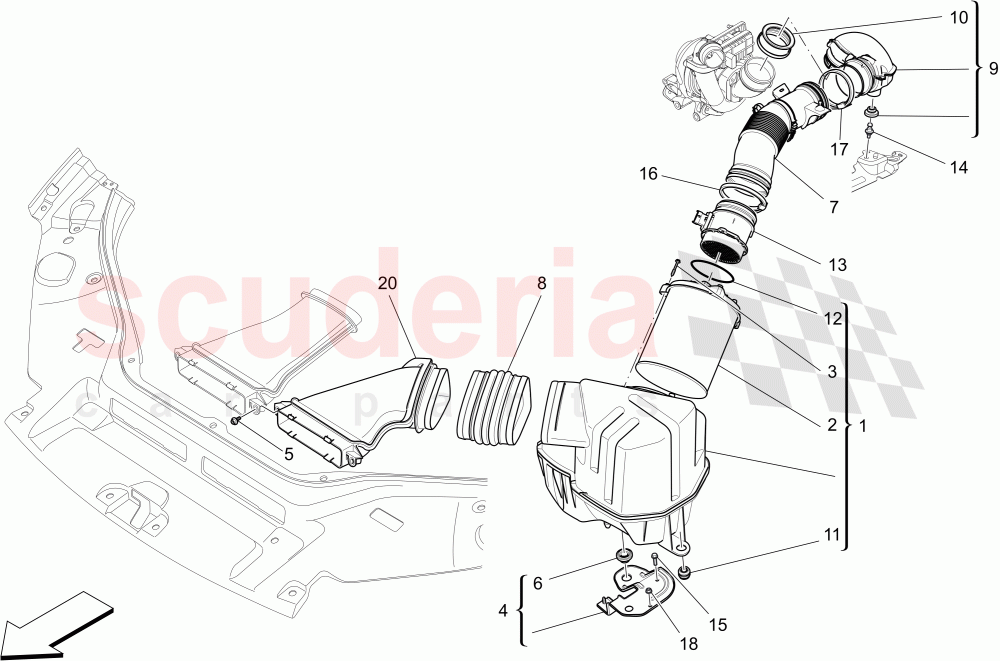

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670033791	AIR FILTER BOX ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670004604	AIR FILTER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	670030289	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670006753	BRACKET ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000776	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000018	FLEXIBLE PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670033792	CLEAN AIR INTAKE SLEEVE - FLOWMETER SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670004599	AIR INTLET SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670106061	TURBO AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670007158	GASKET AIR INTAKE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000284	FLEXIBLE PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000329	O-Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670005091	AIR FLOW METER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000394	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000504	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000501	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000476	COLLARD.89	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059214	Nut Flanged M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670033793	UPPER LH AIR INTAKE SLEEVE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670033791	AIR FILTER BOX ASSEMBLY	670033791 AIR FILTER BOX ASSEMBLY	-	1	Enquire
2	670004604	AIR FILTER ARRIVING SOON	670004604 AIR FILTER ARRIVING SOON	-	1	Enquire
3	670030289	SCREW	670030289 SCREW	-	3	Enquire
4	670006753	BRACKET ASSEMBLY	670006753 BRACKET ASSEMBLY	-	1	Enquire
5	675000776	SCREW	675000776 SCREW	-	3	Enquire
6	675000018	FLEXIBLE PAD	675000018 FLEXIBLE PAD	-	1	Enquire
7	670033792	CLEAN AIR INTAKE SLEEVE - FLOWMETER SIDE	670033792 CLEAN AIR INTAKE SLEEVE - FLOWMETER SIDE	-	1	Enquire
8	670004599	AIR INTLET SLEEVE	670004599 AIR INTLET SLEEVE	-	1	Enquire
9	670106061	TURBO AIR DUCT	670106061 TURBO AIR DUCT	-	1	Enquire
10	670007158	GASKET AIR INTAKE	670007158 GASKET AIR INTAKE	-	1	Enquire
11	675000284	FLEXIBLE PAD	675000284 FLEXIBLE PAD	-	1	Enquire
12	675000329	O-Ring	675000329 O-Ring	-	1	Enquire
13	670005091	AIR FLOW METER	670005091 AIR FLOW METER	-	1	Enquire
14	675000394	PIN	675000394 PIN	-	1	Enquire
15	675000504	SCREW	675000504 SCREW	-	1	Enquire
16	675000501	COLLAR	675000501 COLLAR D.98	-	1	Enquire
17	675000476	COLLARD.89	675000476 COLLARD.89 D.89	-	1	Enquire
18	14059214	Nut Flanged M6	14059214 Nut Flanged M6 M6	-	2	Enquire
20	670033793	UPPER LH AIR INTAKE SLEEVE	670033793 UPPER LH AIR INTAKE SLEEVE	-	1	Enquire
