Rear Electric Axle - Axle Shafts

Maserati Grecale Folgore Automatic 4WD BEV 400 kW

Illustration Number: 0109

Find Your Part

Maserati Grecale Folgore Automatic 4WD BEV 400 kW - REAR ELECTRIC AXLE - AXLE SHAFTS (01091)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
670221697 RH REAR AXLE SHAFT Enquire To Order
T670172031 GLOVE BOX ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
670221698 LH REAR AXLE SHAFT Enquire To Order
U670172027 GLOVE BOX ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock

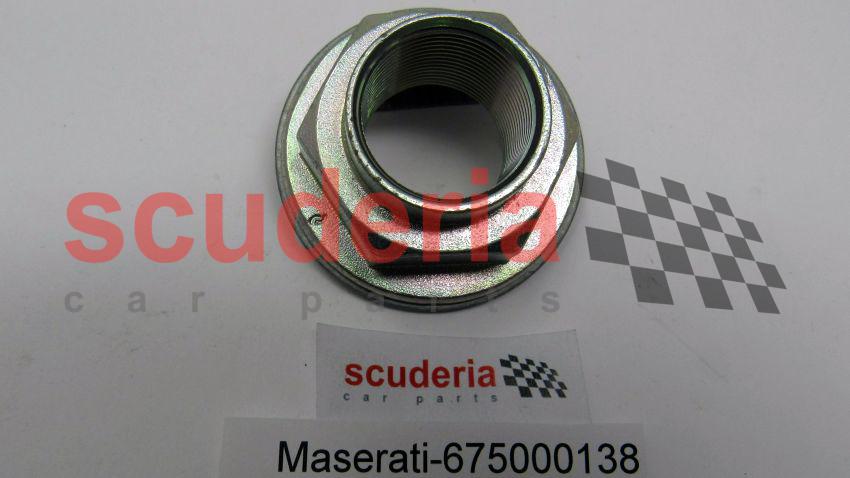

675000138 NUT Enquire To Order
675002377 NUT Enquire To Order
Photo Part No Description Price (each) Stock
675002378 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
673016751 LH SEAT WIRING HARNESS Enquire To Order
View All

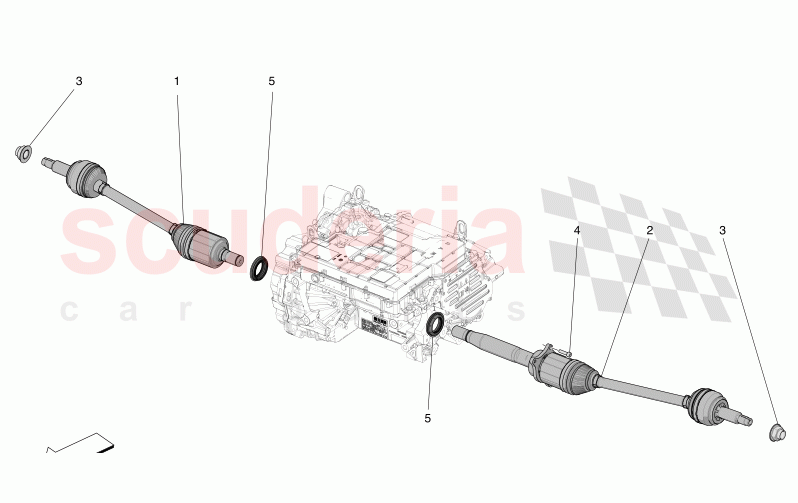

REAR ELECTRIC AXLE - AXLE SHAFTS of Maserati Maserati Grecale Folgore Automatic 4WD BEV 400 kW Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 670221697
RH REAR AXLE SHAFT
Not available with: AWD DISCONNECT; 		- 1 Enquire
1 T670172031
GLOVE BOX ASSEMBLY
Available with: AWD DISCONNECT ; 		- 1 Enquire
2 670221698
LH REAR AXLE SHAFT
Not available with: AWD DISCONNECT; 		- 1 Enquire
2 U670172027
GLOVE BOX ASSEMBLY
Available with: AWD DISCONNECT ; 		- 1 Enquire
3 675000138
NUT
Not available with: AWD DISCONNECT; 		- 2 Enquire
3 675002377
NUT
Available with: AWD DISCONNECT ; 		- 2 Enquire
4 675002378
SCREW 		- 3 Enquire
5 673016751
LH SEAT WIRING HARNESS 		- 2 Enquire
