FRONT ELECTRIC AXLE - POWERTRAIN of Maserati Maserati Grecale Folgore Automatic 4WD BEV 400 kW

View All

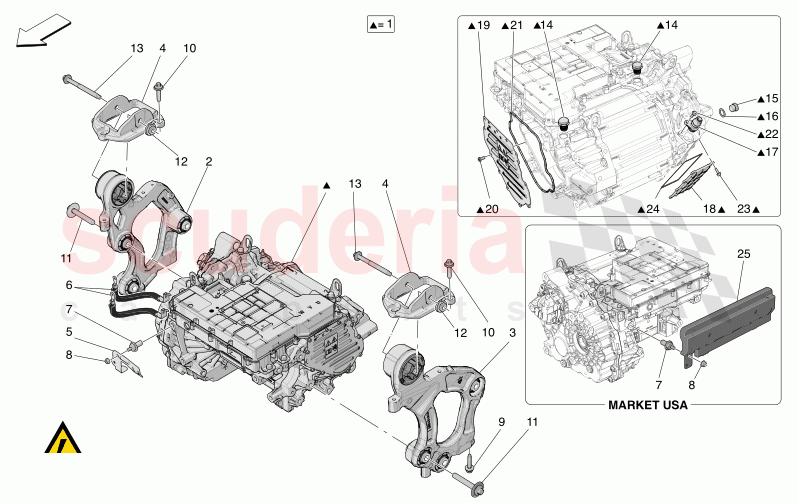

Maserati Grecale Folgore Automatic 4WD BEV 400 kW - FRONT ELECTRIC AXLE - POWERTRAIN (01011)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670304426	FRONT ELECTRIC TRACTION MODULE	Enquire	To Order
	670273283	TUNNEL GLOVE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670299501	RH ENGINE BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670178167	LH ENGINE BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLLE0048	DEEP SIDED RUBBER MATS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670219869	WIRING SUPPORT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670295648	GROUND LEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670214868	TWIN SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001096	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670179007	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001345	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670179005	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001685	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670159141	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLLE0049	DEEP SIDED RUBBER MATS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLLE0050	DEEP SIDED RUBBER MATS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VPLLE0051	DEEP SIDED RUBBER MATS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	W581523SJ50	Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	920033432	LEISURE PANT METEOR L	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673016866	RHD CENTRAL COVER CARBON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670308186	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670159393	EXPANSION TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670220380	REAR TRANSMISSION SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670222373	FRONT HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670301373	LH BAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670304426	FRONT ELECTRIC TRACTION MODULE	670304426 FRONT ELECTRIC TRACTION MODULE Not available with: AWD DISCONNECT; EU AU US UK JP ME JRH IN KO;	-	1	Enquire
1	670273283	TUNNEL GLOVE COMPARTMENT	670273283 TUNNEL GLOVE COMPARTMENT Available with: AWD DISCONNECT ; EU AU US UK JP ME JRH IN KO;	-	1	Enquire
2	670299501	RH ENGINE BUSHING	670299501 RH ENGINE BUSHING	-	1	Enquire
3	670178167	LH ENGINE BUSHING	670178167 LH ENGINE BUSHING	-	1	Enquire
4	VPLLE0048	DEEP SIDED RUBBER MATS	VPLLE0048 DEEP SIDED RUBBER MATS	-	2	Enquire
5	670219869	WIRING SUPPORT BRACKET	670219869 WIRING SUPPORT BRACKET EU AU CN UK JP ME JRH IN KO N0 N8;	-	1	Enquire
6	670295648	GROUND LEAD	670295648 GROUND LEAD	-	2	Enquire
7	670214868	TWIN SCREW	670214868 TWIN SCREW EU AU CN UK JP ME JRH IN KO N0 N8;	-	1	Enquire
8	675001096	NUT	675001096 NUT EU AU CN UK JP ME JRH IN KO N0 N8;	-	1	Enquire
9	670179007	SCREW	670179007 SCREW	-	2	Enquire
10	675001345	SCREW	675001345 SCREW	-	6	Enquire
11	670179005	SCREW	670179005 SCREW	-	6	Enquire
12	675001685	NUT	675001685 NUT	-	2	Enquire
13	670159141	SCREW	670159141 SCREW	-	2	Enquire
14	VPLLE0049	DEEP SIDED RUBBER MATS	VPLLE0049 DEEP SIDED RUBBER MATS	-	2	Enquire
15	VPLLE0050	DEEP SIDED RUBBER MATS	VPLLE0050 DEEP SIDED RUBBER MATS	-	1	Enquire
16	VPLLE0051	DEEP SIDED RUBBER MATS	VPLLE0051 DEEP SIDED RUBBER MATS	-	1	Enquire
17	W581523SJ50	Bolt	W581523SJ50 Bolt	-	1	Enquire
18	920033432	LEISURE PANT METEOR L	920033432 LEISURE PANT METEOR L	-	1	Enquire
19	673016866	RHD CENTRAL COVER CARBON	673016866 RHD CENTRAL COVER CARBON	-	1	Enquire
20	670308186	SCREW	670308186 SCREW	-	11	Enquire
21	670159393	EXPANSION TANK	670159393 EXPANSION TANK	-	1	Enquire
22	670220380	REAR TRANSMISSION SHAFT	670220380 REAR TRANSMISSION SHAFT	-	1	Enquire
23	670222373	FRONT HARNESS	670222373 FRONT HARNESS	-	8	Enquire
24	670301373	LH BAR	670301373 LH BAR	-	1	Enquire
