PASSENGER COMPARTMENT B PILLAR TRIM PANELS AND SIDE PANELS of Maserati Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV

View All

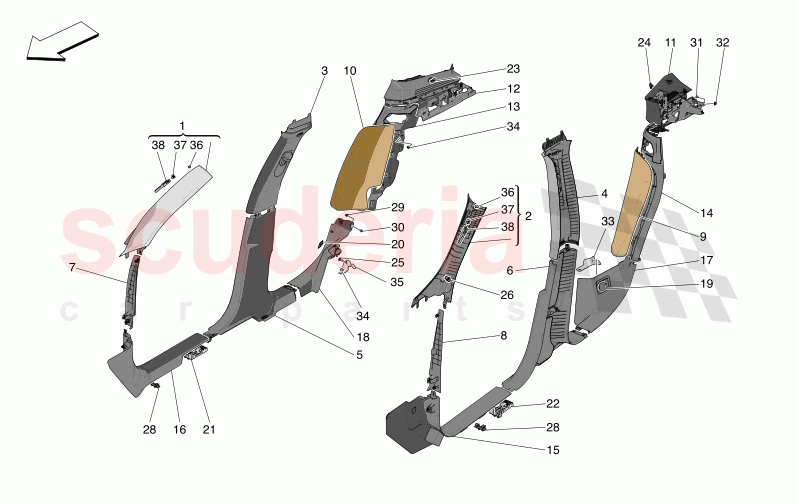

Maserati Grecale GT Automatic 2.0 T4 4WD 300HP MHEV - PASSENGER COMPARTMENT B PILLAR TRIM PANELS AND SIDE PANELS (09441)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	670011875	POWER SOCKET	Enquire	To Order
	670047045	PASSENGER SIDE DASHBOARD AIR VENT ASS.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670224937	SWITCH CENTRAL TRIM PLATE	Enquire	To Order
	670134459	LIGHT CONTROL LH SWITCH TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47A971093A	HARNESS HV EU SOCKET CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47A955023B	WIPER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47C955023B	WIPER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47C955024B	WIPER MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47A971111F	HARNESS ELECTRIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML863280PXZ0	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670043347	INSTRUMENT CLUSTER TRIM PLATE	Enquire	To Order
	670047054	INSTRUMENT CLUSTER UPPER COVER ASSEMBLY	Enquire	To Order
	670043347	INSTRUMENT CLUSTER TRIM PLATE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	670193975	STEERING COLUMN STALK	Enquire	To Order
	670193974	STEERING COLUMN STALK	Enquire	To Order
	670193975	STEERING COLUMN STALK	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	670227389	STEERING COLUMN STALK	Enquire	To Order
	670123104	CONTROL TRIM ON GEARSHIFT LEVER	Enquire	To Order
	670040306	ELECTRIC PARKING BRAKE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670011876	FRONT POWER SOCKET	Enquire	To Order
	712141000	CIGAR LIGHTER	Enquire	To Order
	670011877	LED LOCKING RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML857085GKF3	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML857085GQG8	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47A955405C	MY26 WIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47C955405C	MY26 WIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML807555	FRONT PART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML837479B	WIN. WEATHERSTRIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML857086GQG8	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML857086GQH9	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002177	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002178	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML857086HEA9	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4ML857086JQH9	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000649	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002181	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002013	FIXING SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002012	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675001390	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000649	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675002182	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670160955	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000095	NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	670160954	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B881901	HEADREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B881901A	HEADREST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	47B881671	ACTUATING LEVER FOR SEAT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	670011875	POWER SOCKET	670011875 POWER SOCKET Available with: HIGH PREMIUM SOUND SYSTEM ;	-	1	Enquire
1	670047045	PASSENGER SIDE DASHBOARD AIR VENT ASS.	670047045 PASSENGER SIDE DASHBOARD AIR VENT ASS. Not available with: HIGH PREMIUM SOUND SYSTEM;	-	1	Enquire
2	670224937	SWITCH CENTRAL TRIM PLATE	670224937 SWITCH CENTRAL TRIM PLATE Available with: HIGH PREMIUM SOUND SYSTEM ;	-	1	Enquire
2	670134459	LIGHT CONTROL LH SWITCH TRIM	670134459 LIGHT CONTROL LH SWITCH TRIM Not available with: HIGH PREMIUM SOUND SYSTEM;	-	1	Enquire
3	47A971093A	HARNESS HV EU SOCKET CABLE	47A971093A HARNESS HV EU SOCKET CABLE	-	1	Enquire
4	47A955023B	WIPER MOTOR	47A955023B WIPER MOTOR	-	1	Enquire
5	47C955023B	WIPER MOTOR	47C955023B WIPER MOTOR	-	1	Enquire
6	47C955024B	WIPER MOTOR	47C955024B WIPER MOTOR	-	1	Enquire
7	47A971111F	HARNESS ELECTRIC	47A971111F HARNESS ELECTRIC	-	1	Enquire
8	4ML863280PXZ0	COVER	4ML863280PXZ0 COVER	-	1	Enquire
9	670043347	INSTRUMENT CLUSTER TRIM PLATE	670043347 INSTRUMENT CLUSTER TRIM PLATE Available with: LEATHER SEAT UPHOLSTERY Not available with: PREMIUM INTERIOR UPHOLSTERY (IN LEATHER GRAIN B), SPORT INTERIOR UPHOLSTERY (IN LEATHER GRAIN B);	-	1	Enquire
9	670047054	INSTRUMENT CLUSTER UPPER COVER ASSEMBLY	670047054 INSTRUMENT CLUSTER UPPER COVER ASSEMBLY Available with: PREMIUM INTERIOR UPHOLSTERY (IN LEATHER GRAIN B) Not available with: LEATHER SEAT UPHOLSTERY, FUORISERIE PREMIUM, FUORISERIE SPORT PREMIUM;	-	1	Enquire
9	670043347	INSTRUMENT CLUSTER TRIM PLATE	670043347 INSTRUMENT CLUSTER TRIM PLATE WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 99999999; Available with: BASE UPHOLSTERY Not available with: LEATHER SEAT UPHOLSTERY, PREMIUM INTERIOR UPHOLSTERY (IN LEATHER GRAIN B), SPORT INTERIOR UPHOLSTERY (IN LEATHER GRAIN B);	-	1	Enquire
9	670047054	INSTRUMENT CLUSTER UPPER COVER ASSEMBLY	670047054 INSTRUMENT CLUSTER UPPER COVER ASSEMBLY Available with: PREMIUM UPHOLSTERY CHOCOLATE Not available with: LEATHER SEAT UPHOLSTERY, PREMIUM INTERIOR UPHOLSTERY (IN LEATHER GRAIN B), SPORT INTERIOR UPHOLSTERY (IN LEATHER GRAIN B);	-	1	Enquire
9	670047054	INSTRUMENT CLUSTER UPPER COVER ASSEMBLY	670047054 INSTRUMENT CLUSTER UPPER COVER ASSEMBLY Available with: PREMIUM UPHOLSTERY BLACK/GREY Not available with: LEATHER SEAT UPHOLSTERY, PREMIUM INTERIOR UPHOLSTERY (IN LEATHER GRAIN B), SPORT INTERIOR UPHOLSTERY (IN LEATHER GRAIN B);	-	1	Enquire
9	670047054	INSTRUMENT CLUSTER UPPER COVER ASSEMBLY	670047054 INSTRUMENT CLUSTER UPPER COVER ASSEMBLY Available with: PREMIUM UPHOLSTERY ICE Not available with: LEATHER SEAT UPHOLSTERY, PREMIUM INTERIOR UPHOLSTERY (IN LEATHER GRAIN B), SPORT INTERIOR UPHOLSTERY (IN LEATHER GRAIN B);	-	1	Enquire
10	670193975	STEERING COLUMN STALK	670193975 STEERING COLUMN STALK Available with: LEATHER SEAT UPHOLSTERY Not available with: PREMIUM INTERIOR UPHOLSTERY (IN LEATHER GRAIN B), SPORT INTERIOR UPHOLSTERY (IN LEATHER GRAIN B);	-	1	Enquire
10	670193974	STEERING COLUMN STALK	670193974 STEERING COLUMN STALK Available with: PREMIUM INTERIOR UPHOLSTERY (IN LEATHER GRAIN B) Not available with: LEATHER SEAT UPHOLSTERY, FUORISERIE PREMIUM, FUORISERIE SPORT PREMIUM;	-	1	Enquire
10	670193975	STEERING COLUMN STALK	670193975 STEERING COLUMN STALK WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 99999999; Available with: BASE UPHOLSTERY Not available with: LEATHER SEAT UPHOLSTERY, PREMIUM INTERIOR UPHOLSTERY (IN LEATHER GRAIN B), SPORT INTERIOR UPHOLSTERY (IN LEATHER GRAIN B);	-	1	Enquire
10	670193974	STEERING COLUMN STALK	670193974 STEERING COLUMN STALK WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 99999999; Available with: PREMIUM UPHOLSTERY CHOCOLATE Not available with: LEATHER SEAT UPHOLSTERY, PREMIUM INTERIOR UPHOLSTERY (IN LEATHER GRAIN B), SPORT INTERIOR UPHOLSTERY (IN LEATHER GRAIN B);	-	1	Enquire
10	670193974	STEERING COLUMN STALK	670193974 STEERING COLUMN STALK WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 99999999; Available with: PREMIUM UPHOLSTERY BLACK/GREY Not available with: LEATHER SEAT UPHOLSTERY, PREMIUM INTERIOR UPHOLSTERY (IN LEATHER GRAIN B), SPORT INTERIOR UPHOLSTERY (IN LEATHER GRAIN B);	-	1	Enquire
10	670193974	STEERING COLUMN STALK	670193974 STEERING COLUMN STALK WARNING: in order to properly choose the spare part for a specific vehicle model, you must perform the configuration procedure once again and enter the "Assembly Number" or "VIN" Assembly Number 2032180 - 99999999; Available with: PREMIUM UPHOLSTERY ICE Not available with: LEATHER SEAT UPHOLSTERY, PREMIUM INTERIOR UPHOLSTERY (IN LEATHER GRAIN B), SPORT INTERIOR UPHOLSTERY (IN LEATHER GRAIN B);	-	1	Enquire
11	670227389	STEERING COLUMN STALK	670227389 STEERING COLUMN STALK Not available with: HIGH PREMIUM SOUND SYSTEM, PREMIUM AUDIO SYSTEM;	-	1	Enquire
11	670123104	CONTROL TRIM ON GEARSHIFT LEVER	670123104 CONTROL TRIM ON GEARSHIFT LEVER Available with: HIGH PREMIUM SOUND SYSTEM Not available with: PREMIUM AUDIO SYSTEM;	-	1	Enquire
11	670040306	ELECTRIC PARKING BRAKE SWITCH	670040306 ELECTRIC PARKING BRAKE SWITCH Available with: PREMIUM AUDIO SYSTEM Not available with: HIGH PREMIUM SOUND SYSTEM;	-	1	Enquire
12	670011876	FRONT POWER SOCKET	670011876 FRONT POWER SOCKET Not available with: HIGH PREMIUM SOUND SYSTEM, PREMIUM AUDIO SYSTEM;	-	1	Enquire
12	712141000	CIGAR LIGHTER	712141000 CIGAR LIGHTER Available with: HIGH PREMIUM SOUND SYSTEM Not available with: PREMIUM AUDIO SYSTEM;	-	1	Enquire
12	670011877	LED LOCKING RING NUT	670011877 LED LOCKING RING NUT Available with: PREMIUM AUDIO SYSTEM Not available with: HIGH PREMIUM SOUND SYSTEM;	-	1	Enquire
13	4ML857085GKF3	COVER	4ML857085GKF3 COVER	-	1	Enquire
14	4ML857085GQG8	COVER	4ML857085GQG8 COVER	-	1	Enquire
15	47A955405C	MY26 WIPER	47A955405C MY26 WIPER EU CN US JP ME KO N0;	-	1	Enquire
16	47C955405C	MY26 WIPER	47C955405C MY26 WIPER EU CN US JP ME KO N0;	-	1	Enquire
17	4ML807555	FRONT PART	4ML807555 FRONT PART	-	1	Enquire
18	4ML837479B	WIN. WEATHERSTRIP	4ML837479B WIN. WEATHERSTRIP	-	1	Enquire
19	4ML857086GQG8	COVER	4ML857086GQG8 COVER	-	1	Enquire
20	4ML857086GQH9	COVER	4ML857086GQH9 COVER	-	1	Enquire
21	675002177	RH BRACKET	675002177 RH BRACKET	-	1	Enquire
22	675002178	LH BRACKET	675002178 LH BRACKET	-	1	Enquire
23	4ML857086HEA9	COVER	4ML857086HEA9 COVER	-	1	Enquire
24	4ML857086JQH9	COVER	4ML857086JQH9 COVER	-	1	Enquire
25	675000649	SCREW	675000649 SCREW	-	6	Enquire
26	675002181	CLIP	675002181 CLIP	-	2	Enquire
28	675002013	FIXING SPRING	675002013 FIXING SPRING	-	4	Enquire
29	675002012	BLOCK	675002012 BLOCK	-	2	Enquire
30	675001390	SCREW	675001390 SCREW	-	8	Enquire
31	675000649	SCREW	675000649 SCREW	-	6	Enquire
32	675002182	BLOCK	675002182 BLOCK	-	4	Enquire
33	670160955	LH BRACKET	670160955 LH BRACKET	-	1	Enquire
34	675000095	NUT M6	675000095 NUT M6	-	12	Enquire
35	670160954	RH BRACKET	670160954 RH BRACKET	-	1	Enquire
36	47B881901	HEADREST	47B881901 HEADREST	-	2	Enquire
37	47B881901A	HEADREST	47B881901A HEADREST	-	2	Enquire
38	47B881671	ACTUATING LEVER FOR SEAT	47B881671 ACTUATING LEVER FOR SEAT	-	2	Enquire
