Name: ELECTRICAL CAPOTE: FLAPS (Available with: Special EditionNot available with: CENTENNIAL INTERNALS)
Rating: 4.6 (1 reviews)

View All

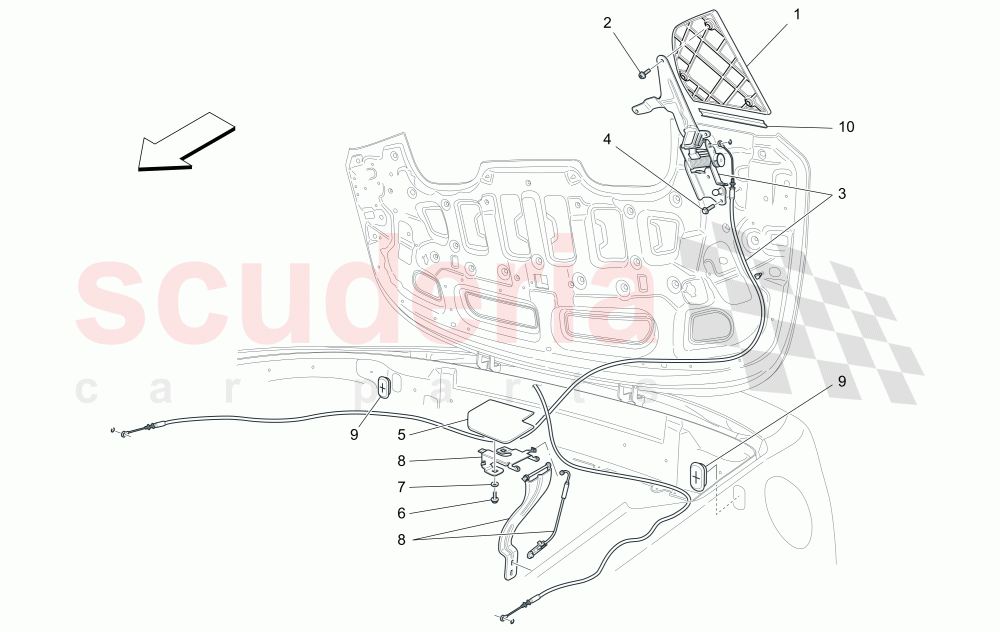

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	68176200	SCREW	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	83182500	SCREW	$2.83	To Order

Photo	Part No	Description	Price (each)	Stock
	81725700	L.H. INNER FLAP - NERO (BLACK) - 364015157	$76.06	To Order
	81725749	L.H. INNER FLAP - BIANCO PREGIATO (PRIZED WHITE) - 094083984	$77.90	To Order
	81725600	R.H. INNER FLAP - NERO (BLACK) - 364015157	$66.05	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14418924	SCREW	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	13577778	WASHER	$2.63	To Order

Photo	Part No	Description	Price (each)	Stock
	82864200	PLUG	$5.22	To Order

Photo	Part No	Description	Price (each)	Stock
	82834600	GASKET	$28.88	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	81642600	L.H. OUTER FLAP - NERO (BLACK) - 364015157	81642600 L.H. OUTER FLAP - NERO (BLACK) - 364015157	$430.69	1
1	81642500	R.H. OUTER FLAP - NERO (BLACK) - 364015157	81642500 R.H. OUTER FLAP - NERO (BLACK) - 364015157	$430.78	1
2	68176200	SCREW	68176200 SCREW	$2.83	6
3	83083400	LH EXTERNAL FLAP HINGE	83083400 LH EXTERNAL FLAP HINGE	$758.15	1
3	83083300	RH FLAP HINGE ASSEMBLY	83083300 RH FLAP HINGE ASSEMBLY	$758.15	1
4	83182500	SCREW	83182500 SCREW	$2.83	4
5	81725700	L.H. INNER FLAP - NERO (BLACK) - 364015157	81725700 L.H. INNER FLAP - NERO (BLACK) - 364015157	$76.06	1
5	81725749	L.H. INNER FLAP - BIANCO PREGIATO (PRIZED WHITE) - 094083984	81725749 L.H. INNER FLAP - BIANCO PREGIATO (PRIZED WHITE) - 094083984	$77.90	1
5	81725600	R.H. INNER FLAP - NERO (BLACK) - 364015157	81725600 R.H. INNER FLAP - NERO (BLACK) - 364015157	$66.05	1
5	81725649	R.H. INNER FLAP - BIANCO PREGIATO (PRIZED WHITE) - 094083984	81725649 R.H. INNER FLAP - BIANCO PREGIATO (PRIZED WHITE) - 094083984	-	1	Enquire
6	14418924	SCREW	14418924 SCREW	$1.97	4
7	13577778	WASHER	13577778 WASHER D. 5,45-15X1,2	$2.63	4
8	83468600	LH FLAP SUPPORT ASSEMBLY	83468600 LH FLAP SUPPORT ASSEMBLY	$634.06	1
8	83468500	RH FLAP SUPPORT ASSEMBLY	83468500 RH FLAP SUPPORT ASSEMBLY	$634.06	1
9	82864200	PLUG	82864200 PLUG	$5.22	2
10	82834600	GASKET	82834600 GASKET	$28.88	2
