WINDOWS AND WINDOW STRIPS of Maserati Maserati GranCabrio (2017+) Special Edition

View All

Maserati GranCabrio (2017+) Special Edition - WINDOWS AND WINDOW STRIPS

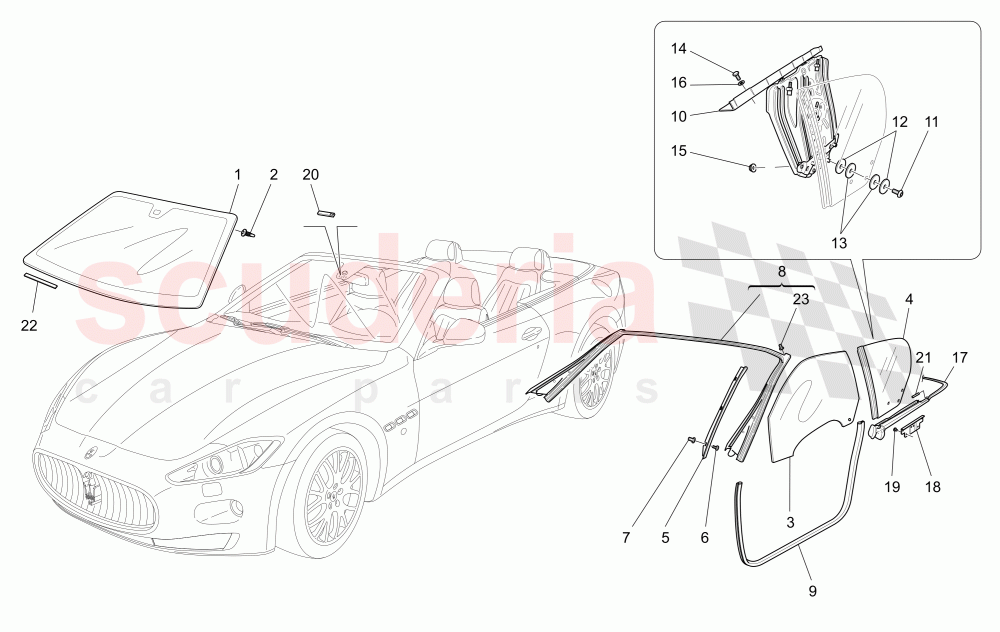

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	68240500	Windscreen Glass	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	83075900	Threaded Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68363300	L.H Door Glass	Enquire	To Order
	68363200	R.H. DOOR GLASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81568500	COMPLETE L.H. REAR SIDE GLASS	Enquire	To Order
	81568400	COMPLETE R.H. REAR SIDE GLASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81554000	LH SIDE PROFILE MOULDING	Enquire	To Order
	81553900	RH SIDE PROFILE MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16083501	TRIM SCREW 4 X 12MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14201980	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83078100	WINDSCREEN GLASS UPPER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82295000	DOOR LOWER GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82526100	LH REAR POWER WINDOW	Enquire	To Order
	82526300	RH Rear Glass Lifter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81564500	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81564600	WASHER	Enquire	To Order
	81564700	WASHER	Enquire	To Order
	81564900	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81564800	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	18750524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046224	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646934	WASHER D.12.2-28	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84132300	LH SIDE REAR GLASS SCRAPER	Enquire	To Order
	84132200	RH SIDE REAR GLASS SCRAPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82216900	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16285011	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	271140	FELT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289398	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80964500	GASKET FOR FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	980145487	PIN	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	68240500	Windscreen Glass ARRIVING SOON	68240500 Windscreen Glass ARRIVING SOON	-	1	Enquire
2	83075900	Threaded Pin	83075900 Threaded Pin	-	2	Enquire
3	68363300	L.H Door Glass	68363300 L.H Door Glass	-	1	Enquire
3	68363200	R.H. DOOR GLASS	68363200 R.H. DOOR GLASS	-	1	Enquire
4	81568500	COMPLETE L.H. REAR SIDE GLASS	81568500 COMPLETE L.H. REAR SIDE GLASS	-	1	Enquire
4	81568400	COMPLETE R.H. REAR SIDE GLASS	81568400 COMPLETE R.H. REAR SIDE GLASS	-	1	Enquire
5	81554000	LH SIDE PROFILE MOULDING	81554000 LH SIDE PROFILE MOULDING	-	1	Enquire
5	81553900	RH SIDE PROFILE MOULDING	81553900 RH SIDE PROFILE MOULDING	-	1	Enquire
6	16083501	TRIM SCREW 4 X 12MM	16083501 TRIM SCREW 4 X 12MM M4X12	-	18	Enquire
7	14201980	BLOCK	14201980 BLOCK	-	18	Enquire
8	83078100	WINDSCREEN GLASS UPPER GASKET	83078100 WINDSCREEN GLASS UPPER GASKET	-	1	Enquire
9	82295000	DOOR LOWER GASKET	82295000 DOOR LOWER GASKET	-	2	Enquire
10	82526100	LH REAR POWER WINDOW	82526100 LH REAR POWER WINDOW	-	1	Enquire

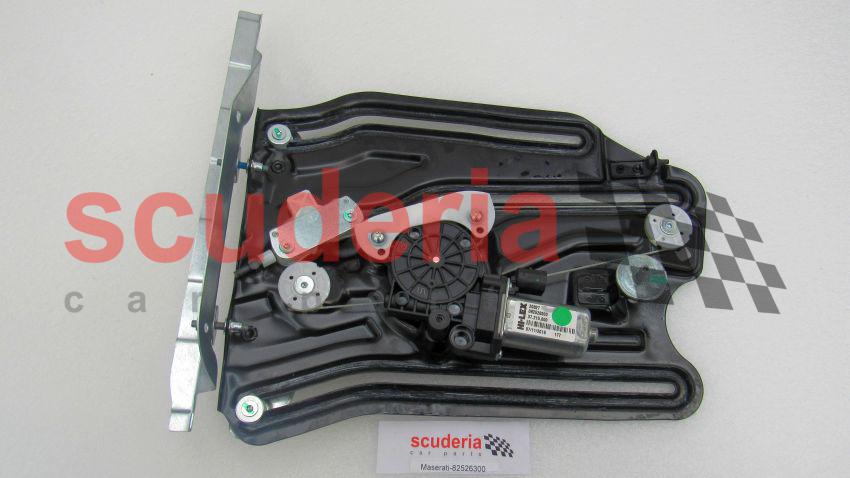

10	82526300	RH Rear Glass Lifter	82526300 RH Rear Glass Lifter	-	1	Enquire
11	81564500	SCREW	81564500 SCREW	-	6	Enquire
12	81564600	WASHER	81564600 WASHER	-	6	Enquire
12	81564700	WASHER	81564700 WASHER	-	6	Enquire
12	81564900	WASHER	81564900 WASHER	-	6	Enquire
13	81564800	BUSHING	81564800 BUSHING	-	6	Enquire
14	18750524	SCREW	18750524 SCREW	-	4	Enquire
15	13046224	NUT	13046224 NUT	-	2	Enquire
16	12646934	WASHER D.12.2-28	12646934 WASHER D.12.2-28 D. 12.2 -28X 3	-	2	Enquire
17	84132300	LH SIDE REAR GLASS SCRAPER	84132300 LH SIDE REAR GLASS SCRAPER	-	1	Enquire
17	84132200	RH SIDE REAR GLASS SCRAPER	84132200 RH SIDE REAR GLASS SCRAPER	-	1	Enquire
18	82216900	BRACKET	82216900 BRACKET	-	2	Enquire
19	16285011	SCREW	16285011 SCREW	-	6	Enquire
20	271140	FELT	271140 FELT	-	1	Enquire
21	289398	PIPE	289398 PIPE	-	2	Enquire
22	80964500	GASKET FOR FLANGE	80964500 GASKET FOR FLANGE	-	1	Enquire
23	980145487	PIN	980145487 PIN	-	2	Enquire
