Intake Manifold And Throttle Body

Maserati Ghibli (2014-2016) Diesel

Find Your Part

Maserati Ghibli (2014-2016) Diesel - INTAKE MANIFOLD AND THROTTLE BODY

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
46328243 AIR INTAKE SLEEVE ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
46328359 O.R. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
46328693 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
46328247 BRACKET ASSEMBLY Enquire To Order
Photo Part No Description Price (each) Stock
673001028 SCREW Enquire To Order
46328683 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
46328242 THROTTLE BODY Enquire To Order
Photo Part No Description Price (each) Stock
46344525 Intake Manifold Enquire ARRIVING SOON
46344525 Intake Manifold Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
673001043 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
46328208 BUTTERFLY VALVE WIRING HARNESS Enquire To Order
46330350 BUTTERFLY VALVE WIRING HARNESS Enquire To Order
Photo Part No Description Price (each) Stock
46328350 BALL PIN Enquire To Order
Photo Part No Description Price (each) Stock
46335012 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
46330273 AIR PRESSURE AND TEMPERATURE SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
673001052 O.R. GASKET Enquire To Order
Photo Part No Description Price (each) Stock
46328688 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
673001014 GASKET KIT Enquire To Order
Photo Part No Description Price (each) Stock
46328246 AIR TEMPERATURE SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
673001044 GASKET Enquire To Order
View All

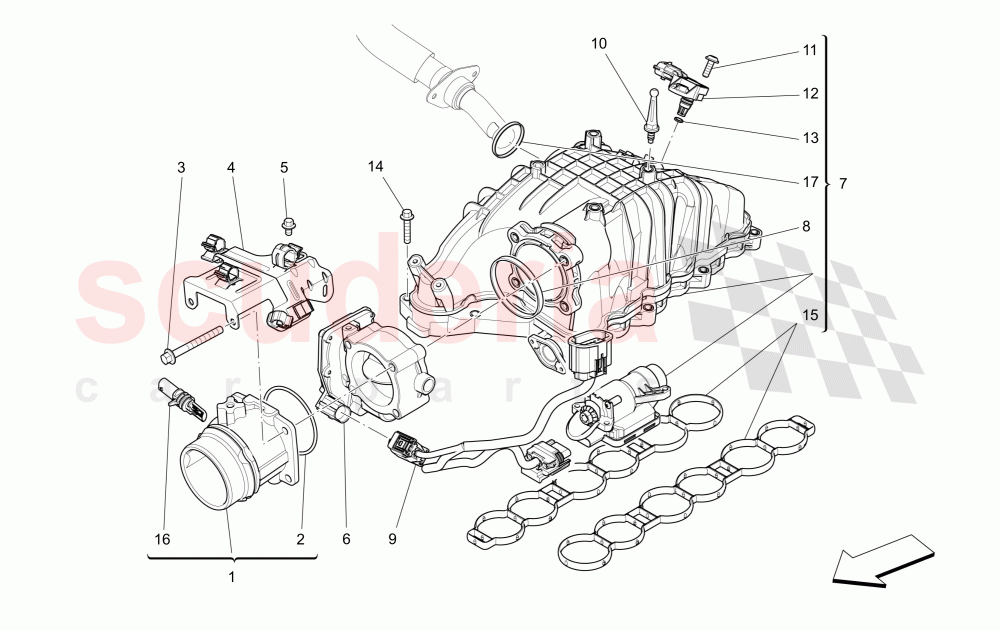

INTAKE MANIFOLD AND THROTTLE BODY of Maserati Maserati Ghibli (2014-2016) Diesel Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 46328243
AIR INTAKE SLEEVE ASSEMBLY 		- 1 Enquire
2 46328359
O.R. GASKET 		- 1 Enquire
3 46328693
SCREW 		- 4 Enquire
4 46328247
BRACKET ASSEMBLY 		- 1 Enquire
5 673001028
SCREW 		- 1 Enquire
5 46328683
SCREW 		- 1 Enquire
6 46328242
THROTTLE BODY 		- 1 Enquire
7 46344525
Intake Manifold
ARRIVING SOON 		- 1 Enquire
7 46344525
Intake Manifold
ARRIVING SOON 		- 1 Enquire
8 673001043
GASKET 		- 1 Enquire
9 46328208
BUTTERFLY VALVE WIRING HARNESS 		- 1 Enquire
9 46330350
BUTTERFLY VALVE WIRING HARNESS 		- 1 Enquire
10 46328350
BALL PIN 		- 1 Enquire
11 46335012
SCREW 		- 1 Enquire
12 46330273
AIR PRESSURE AND TEMPERATURE SENSOR 		- 1 Enquire
13 673001052
O.R. GASKET 		- 1 Enquire
14 46328688
SCREW 		- 11 Enquire
15 673001014
GASKET KIT 		- 1 Enquire
16 46328246
AIR TEMPERATURE SENSOR 		- 1 Enquire
17 673001044
GASKET 		- 1 Enquire
