CRANK MECHANISM of Maserati Maserati Ghibli (2014-2016) Diesel

View All

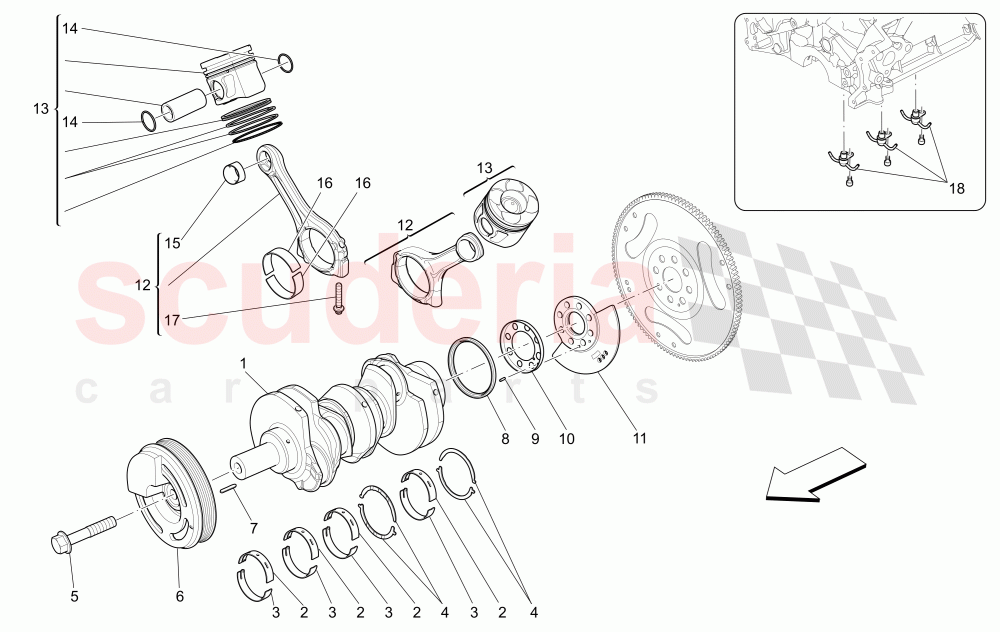

Maserati Ghibli (2014-2016) Diesel - CRANK MECHANISM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	46340637	CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328043	UPPER HALF-BEARING	Enquire	To Order
	46330019	UPPER HALF-BEARING	Enquire	To Order
	46328044	UPPER HALF-BEARING	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	46328046	LOWER HALF-BEARING	Enquire	To Order
	46330024	LOWER HALF-BEARING	Enquire	To Order
	46328047	LOWER HALF-BEARING	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	673000962	SHIM RINGS KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328176	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328175	TORSION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328366	TAB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328061	SEAL RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328663	FLEXIBLE PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328322	PICK-UP WHEEL HUB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328323	SPACER ON CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000954	RODS KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328059	ENGINE PISTON (CL.A)	Enquire	To Order
	46328067	ENGINE PISTON (CL.B)	Enquire	To Order
	46328069	ENGINE PISTON (CL.C)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328066	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328055	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	46328072	CONNECTING ROD HALF-BEARING	Enquire	To Order
	46330035	CONNECTING ROD HALF-BEARING	Enquire	To Order
	46328073	CONNECTING ROD HALF-BEARING	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	46328056	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	673000960	OIL VALVE KIT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	46340637	CRANKSHAFT	46340637 CRANKSHAFT	-	1	Enquire
2	46328043	UPPER HALF-BEARING	46328043 UPPER HALF-BEARING Blue	-	4	Enquire
2	46330019	UPPER HALF-BEARING	46330019 UPPER HALF-BEARING Blue	-	4	Enquire
2	46328044	UPPER HALF-BEARING	46328044 UPPER HALF-BEARING Yellow	-	4	Enquire
2	46330020	UPPER HALF-BEARING	46330020 UPPER HALF-BEARING Yellow	-	4	Enquire
2	46328042	UPPER HALF-BEARING	46328042 UPPER HALF-BEARING Red	-	4	Enquire
2	46330018	UPPER HALF-BEARING	46330018 UPPER HALF-BEARING Red	-	4	Enquire
2	46330021	UPPER HALF-BEARING	46330021 UPPER HALF-BEARING Green	-	4	Enquire
2	46330188	UPPER HALF-BEARING	46330188 UPPER HALF-BEARING Pink	-	4	Enquire
3	46328046	LOWER HALF-BEARING	46328046 LOWER HALF-BEARING Blue	-	4	Enquire
3	46330024	LOWER HALF-BEARING	46330024 LOWER HALF-BEARING Blue	-	4	Enquire
3	46328047	LOWER HALF-BEARING	46328047 LOWER HALF-BEARING Yellow	-	4	Enquire
3	46330025	LOWER HALF-BEARING	46330025 LOWER HALF-BEARING Yellow	-	4	Enquire
3	46328045	LOWER HALF-BEARING	46328045 LOWER HALF-BEARING Red	-	4	Enquire
3	46330023	LOWER HALF-BEARING	46330023 LOWER HALF-BEARING Red	-	4	Enquire
3	46330026	LOWER HALF-BEARING	46330026 LOWER HALF-BEARING Green	-	4	Enquire
3	46330022	LOWER HALF-BEARING	46330022 LOWER HALF-BEARING Pink	-	4	Enquire
4	673000962	SHIM RINGS KIT	673000962 SHIM RINGS KIT	-	1	Enquire
5	46328176	SCREW	46328176 SCREW	-	1	Enquire
6	46328175	TORSION DAMPER	46328175 TORSION DAMPER	-	1	Enquire
7	46328366	TAB	46328366 TAB	-	1	Enquire
8	46328061	SEAL RING	46328061 SEAL RING	-	1	Enquire
9	46328663	FLEXIBLE PIN	46328663 FLEXIBLE PIN	-	1	Enquire
10	46328322	PICK-UP WHEEL HUB	46328322 PICK-UP WHEEL HUB	-	1	Enquire
11	46328323	SPACER ON CRANKSHAFT	46328323 SPACER ON CRANKSHAFT	-	1	Enquire
12	673000954	RODS KIT	673000954 RODS KIT	-	1	Enquire
13	46328059	ENGINE PISTON (CL.A)	46328059 ENGINE PISTON (CL.A)	-	6	Enquire
13	46328067	ENGINE PISTON (CL.B)	46328067 ENGINE PISTON (CL.B)	-	6	Enquire
13	46328069	ENGINE PISTON (CL.C)	46328069 ENGINE PISTON (CL.C)	-	6	Enquire
14	46328066	CIRCLIP	46328066 CIRCLIP	-	12	Enquire
15	46328055	BUSHING	46328055 BUSHING	-	6	Enquire
16	46328072	CONNECTING ROD HALF-BEARING	46328072 CONNECTING ROD HALF-BEARING Blue	-	12	Enquire
16	46330035	CONNECTING ROD HALF-BEARING	46330035 CONNECTING ROD HALF-BEARING Blue	-	12	Enquire
16	46328073	CONNECTING ROD HALF-BEARING	46328073 CONNECTING ROD HALF-BEARING Yellow	-	12	Enquire
16	46330036	CONNECTING ROD HALF-BEARING	46330036 CONNECTING ROD HALF-BEARING Yellow	-	12	Enquire
16	46328071	CONNECTING ROD HALF-BEARING	46328071 CONNECTING ROD HALF-BEARING Red	-	12	Enquire
16	46330034	CONNECTING ROD HALF-BEARING	46330034 CONNECTING ROD HALF-BEARING Red	-	12	Enquire
16	46330037	CONNECTING ROD HALF-BEARING	46330037 CONNECTING ROD HALF-BEARING Green	-	12	Enquire
16	46330033	CONNECTING ROD HALF-BEARING	46330033 CONNECTING ROD HALF-BEARING Pink	-	12	Enquire
17	46328056	SCREW	46328056 SCREW	-	12	Enquire
18	673000960	OIL VALVE KIT	673000960 OIL VALVE KIT	-	1	Enquire
