Main Wiring

Maserati 4200 Spyder (2005-2007) GT

Find Your Part

Maserati 4200 Spyder (2005-2007) GT - MAIN WIRING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
200550 ENGINE COMPARTMENT WIRING HARNESS $1,010.03 To Order
200553 ENGINE COMPARTMENT WIRING HARNESS $1,010.03 To Order
200540 ENGINE COMPARTMENT WIRING HARNESS $1,010.03 To Order
Photo Part No Description Price (each) Stock
196332 ENGINE INJECTION WIRING HARNESS $2,457.36 To Order
190041 ENGINE INJECTION WIRING HARNESS $1,216.63 To Order
195032 ENGINE INJECTION WIRING HARNESS $4,293.67 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
200539 DASHBOARD CABLE $2,322.41 To Order
200552 DASHBOARD CABLE $2,349.37 To Order
Photo Part No Description Price (each) Stock
197026 GPS NAVIGATION WIRING HARNESS $330.92 To Order
Photo Part No Description Price (each) Stock
200490 DOOR WIRING HARNESS $468.62 To Order
200490 DOOR WIRING HARNESS $468.62 To Order
Photo Part No Description Price (each) Stock
186096 ROOF LIGHT WIRING HARNESS $54.30 To Order
Photo Part No Description Price (each) Stock
980002018 ELECTRIC INSTALLATION WIRING KIT $1,130.25 To Order
Photo Part No Description Price (each) Stock
193164 FUEL TANK WIRING HARNESS $158.05 To Order
193165 FUEL TANK WIRING HARNESS $90.62 To Order
Photo Part No Description Price (each) Stock
184916 F1 GEARBOX WIRING HARNESS $565.87 To Order
Photo Part No Description Price (each) Stock
200548 F1 GEARBOX WIRING HARNESS $498.34 To Order
Photo Part No Description Price (each) Stock
196118 RH LONGITUDINAL HARNESS $1,649.93 To Order
200543 RH LONGITUDINAL HARNESS $1,608.10 To Order
196117 RH LONGITUDINAL HARNESS $1,551.56 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
221029 SIDE MARKERS AND PARKING SENSOR LINKING CABLE $534.79 To Order
200505 BUMPER PARKING SENSOR WIRING HARNESS $383.49 IN STOCK
Photo Part No Description Price (each) Stock
186674 SIDE MARKER CABLE $45.82 To Order
Photo Part No Description Price (each) Stock
200546 BOOT WIRING HARNESS $170.66 To Order
190153 BOOT WIRING HARNESS $80.65 To Order
Photo Part No Description Price (each) Stock
190142 STOP LIGHT LINKING CABLE $24.34 To Order
Photo Part No Description Price (each) Stock
195533 LH LONGITUDINAL HARNESS $239.05 To Order
195534 LH LONGITUDINAL HARNESS $94.24 To Order
View All

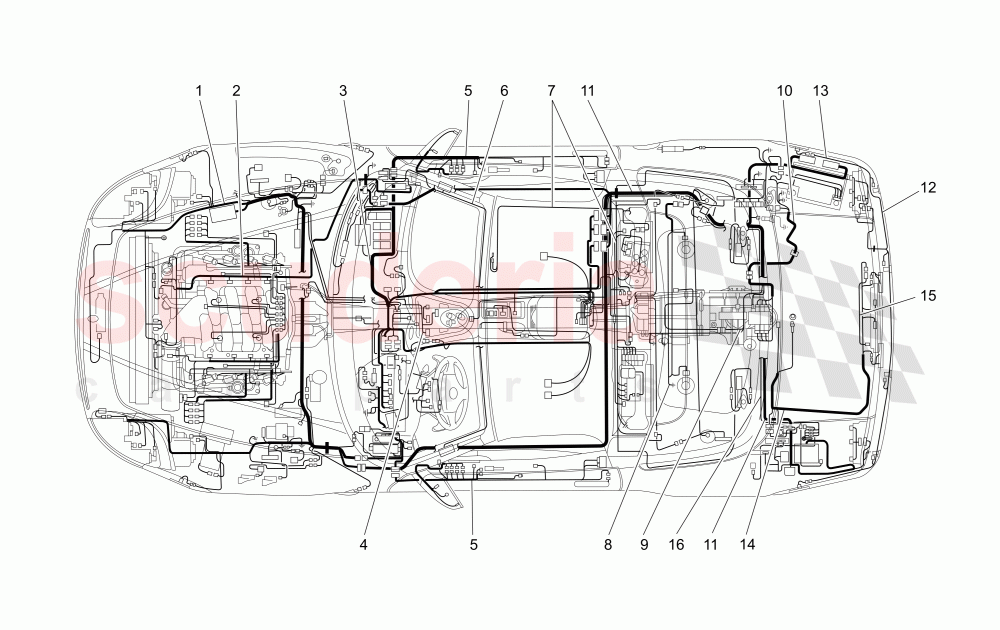

MAIN WIRING of Maserati Maserati 4200 Spyder (2005-2007) GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 200550
ENGINE COMPARTMENT WIRING HARNESS
Valid for USA and CDN - Valid till stock exhaustion 		$1,010.03 1
1 200553
ENGINE COMPARTMENT WIRING HARNESS
Valid for RHD- -Valid till stock exhaustion 		$1,010.03 1
1 200540
ENGINE COMPARTMENT WIRING HARNESS
Not for USA, CDN and RHD- -Valid till stock exhaustion 		$1,010.03 1
2 196332
ENGINE INJECTION WIRING HARNESS
Valid for USA and CDN- -Valid from engine Nr. 73455 		$2,457.36 1
2 190041
ENGINE INJECTION WIRING HARNESS
Valid for USA and CDN- -Valid till engine Nr. 73454 		$1,216.63 1
2 195032
ENGINE INJECTION WIRING HARNESS
Not for USA, CDN and RHD 		$4,293.67 1
2 195034
ENGINE INJECTION WIRING HARNESS
Valid for RHD 		$1,277.41 1
3 200539
DASHBOARD CABLE
Not for RHD- -Valid till stock exhaustion 		$2,322.41 1
3 200552
DASHBOARD CABLE
Valid for RHD- -Valid till stock exhaustion 		$2,349.37 1
4 197026
GPS NAVIGATION WIRING HARNESS 		$330.92 1
5 200490
DOOR WIRING HARNESS
Not for USA and CDN 		$468.62 2
5 200490
DOOR WIRING HARNESS
Valid for USA and CDN 		$468.62 2
6 186096
ROOF LIGHT WIRING HARNESS 		$54.30 (7.8% off) 1
7 980002018
ELECTRIC INSTALLATION WIRING KIT 		$1,130.25 1
8 193164
FUEL TANK WIRING HARNESS
Not for USA and CDN- -Valid till stock exhaustion 		$158.05 1
8 193165
FUEL TANK WIRING HARNESS
Valid for USA and CDN 		$90.62 1
9 184916
F1 GEARBOX WIRING HARNESS
Valid for F1 		$565.87 1
10 200548
F1 GEARBOX WIRING HARNESS
Valid for F1- -Valid till stock exhaustion 		$498.34 1
11 196118
RH LONGITUDINAL HARNESS
Optional- -HI FI system- -Valid for RHD- -Valid till stock exhaustion 		$1,649.93 1
11 200543
RH LONGITUDINAL HARNESS
Optional- -HI FI system- -Not for RHD- -Valid till stock exhaustion 		$1,608.10 1
11 196117
RH LONGITUDINAL HARNESS
Optional- -Telephone and CD charger- -Not for opt. HI FI system- -Valid for RHD- -Valid till stock exhaustion 		$1,551.56 1
11 200542
RH LONGITUDINAL HARNESS
Optional- -Telephone and CD charger- -Not for opt. HI FI system- -Not for USA, CDN, RHD and J- -Valid till stock exhaustion 		$1,524.49 1
11 196116
RH LONGITUDINAL HARNESS
Standard- -With arrangement for opt. CD charger- -Valid for RHD- -Valid till stock exhaustion 		$1,467.80 1
11 200541
RH LONGITUDINAL HARNESS
Standard- -With arrangement for opt. CD charger- -Not for RHD- -Valid till stock exhaustion 		$1,379.91 1
12 221029
SIDE MARKERS AND PARKING SENSOR LINKING CABLE
Optional- -Parking sensors- -Valid for USA and CDN - Valid till stock exhaustion 		$534.79 1
12 200505
BUMPER PARKING SENSOR WIRING HARNESS
Optional- -Parking sensor- -Not for USA and CDN- -Valid till stock exhaustion
IN STOCK 		$383.49 1
13 186674
SIDE MARKER CABLE
Valid for USA and CDN 		$45.82 1
14 200546
BOOT WIRING HARNESS
Optional- -Telephone- -Not for USA, CDN and J- -Valid till stock exhaustion 		$170.66 1
14 190153
BOOT WIRING HARNESS
Standard- -Valid till stock exhaustion 		$80.65 1
15 190142
STOP LIGHT LINKING CABLE 		$24.34 1
16 195533
LH LONGITUDINAL HARNESS
Valid for GB and GS opt. Germany version 		$239.05 1
16 195534
LH LONGITUDINAL HARNESS
Valid for USA and CDN 		$94.24 1
