REAR BUMPER of Maserati Maserati 4200 Spyder (2005-2007) GT

View All

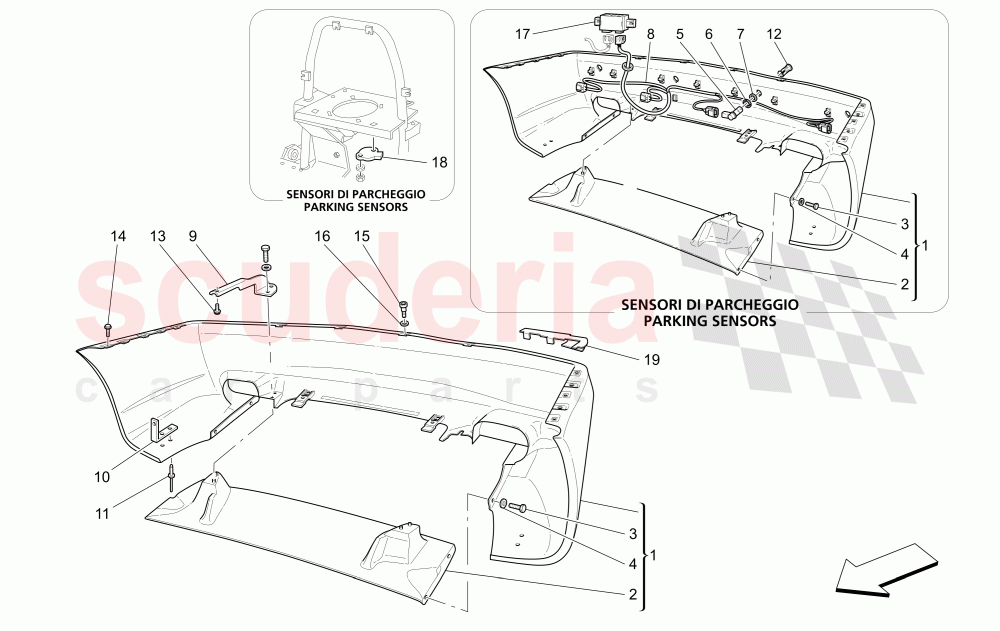

Maserati 4200 Spyder (2005-2007) GT - REAR BUMPER

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	980001067	COMPLETE REAR BUMPER	Enquire	To Order
	980001069	COMPLETE REAR BUMPER	Enquire	To Order
	980001070	COMPLETE REAR BUMPER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	980001048	SPOYLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14305324	Allen Screw 6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648221	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	184929	PARKING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187677	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187678	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221029	SIDE MARKERS AND PARKING SENSOR LINKING CABLE	Enquire	To Order
	200505	BUMPER PARKING SENSOR WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66605400	LH BRACKET	Enquire	To Order
	66605300	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66494900	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	675000715	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187679	OUTER SLEEVE	Enquire	To Order
	187680	INNER SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16288321	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7739729	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

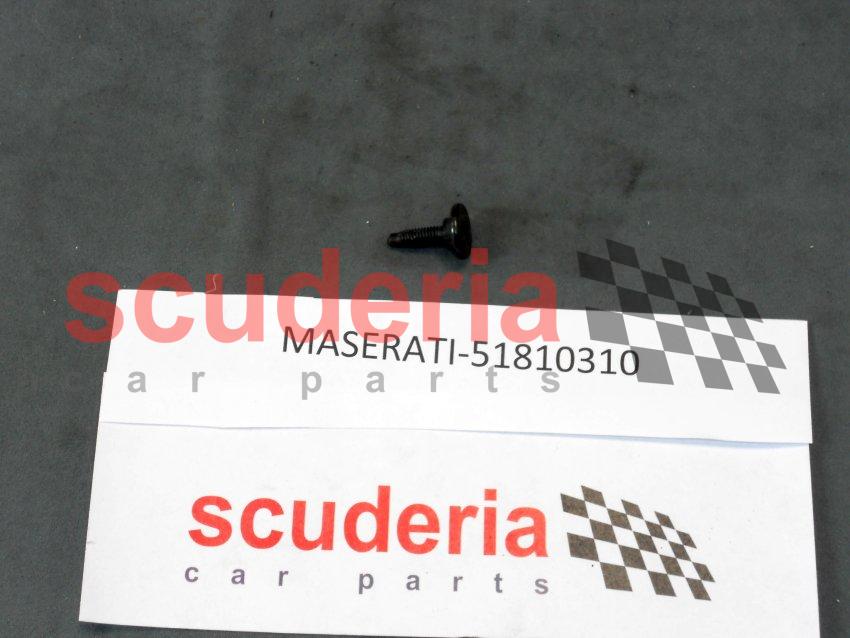

	51810310	Screw M6 x 18.5mm	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	67806700	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193437	PARKING SENSOR ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

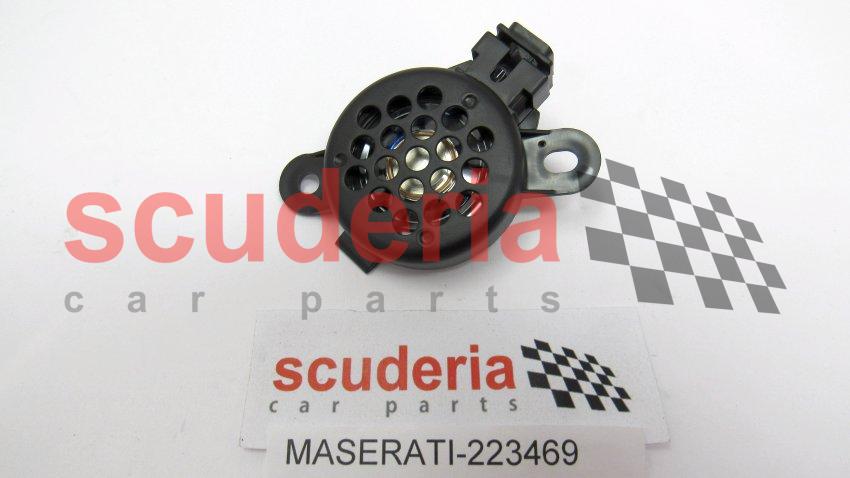

	223469	Parking Sensor Buzzer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	382500540	R.H. PLATE	Enquire	To Order
	382500541	L.H. PLATE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	980001067	COMPLETE REAR BUMPER	980001067 COMPLETE REAR BUMPER Standard- -Not for USA and CDN	-	1	Enquire
1	980001069	COMPLETE REAR BUMPER	980001069 COMPLETE REAR BUMPER Standard- -Valid for USA and CDN	-	1	Enquire
1	980001070	COMPLETE REAR BUMPER	980001070 COMPLETE REAR BUMPER Optional- -Parking sensors- -Valid for USA and CDN	-	1	Enquire
1	980001068	COMPLETE REAR BUMPER	980001068 COMPLETE REAR BUMPER Optional- -Parking sensors- -Not for USA and CDN	-	1	Enquire
2	980001048	SPOYLER	980001048 SPOYLER	-	1	Enquire
3	14305324	Allen Screw 6 x 20	14305324 Allen Screw 6 x 20	-	4	Enquire
4	12648221	WASHER	12648221 WASHER	-	5	Enquire
5	184929	PARKING SENSOR	184929 PARKING SENSOR Optional- -Parking sensor	-	4	Enquire
6	187677	RING NUT	187677 RING NUT Optional- -Parking sensor	-	4	Enquire
7	187678	SPACER	187678 SPACER Optional- -Parking sensor	-	4	Enquire
8	221029	SIDE MARKERS AND PARKING SENSOR LINKING CABLE	221029 SIDE MARKERS AND PARKING SENSOR LINKING CABLE Optional- -Parking sensors- -Valid for USA and CDN - Valid till stock exhaustion	-	1	Enquire
8	200505	BUMPER PARKING SENSOR WIRING HARNESS	200505 BUMPER PARKING SENSOR WIRING HARNESS Optional- -Parking sensor- -Not for USA and CDN- -Valid till stock exhaustion	-	1	Enquire
9	66605400	LH BRACKET	66605400 LH BRACKET	-	1	Enquire
9	66605300	RH BRACKET	66605300 RH BRACKET	-	1	Enquire
10	66494900	BRACKET	66494900 BRACKET	-	2	Enquire
11	675000715	RIVET	675000715 RIVET	-	4	Enquire
12	187679	OUTER SLEEVE	187679 OUTER SLEEVE Optional- -Parking sensor	-	2	Enquire
12	187680	INNER SLEEVE	187680 INNER SLEEVE Optional- -Parking sensor	-	2	Enquire
13	16288321	SCREW	16288321 SCREW	-	2	Enquire
14	7739729	SCREW	7739729 SCREW	-	6	Enquire
15	51810310	Screw M6 x 18.5mm ARRIVING SOON	51810310 Screw M6 x 18.5mm ARRIVING SOON	-	4	Enquire
16	67806700	WASHER	67806700 WASHER	-	4	Enquire
17	193437	PARKING SENSOR ECU	193437 PARKING SENSOR ECU Optional- -Parking sensor	-	1	Enquire
18	223469	Parking Sensor Buzzer	223469 Parking Sensor Buzzer Optional- -Parking sensor	-	1	Enquire
19	382500540	R.H. PLATE	382500540 R.H. PLATE	-	1	Enquire
19	382500541	L.H. PLATE	382500541 L.H. PLATE	-	1	Enquire
