COMPLETE PEDAL BOARD UNIT

Find Your Part

Maserati 4200 Spyder (2005-2007) GT - COMPLETE PEDAL BOARD UNIT

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
190840 PEDAL SUPPORT $1,117.94 To Order
190839 PEDAL SUPPORT $991.84 To Order
Photo Part No Description Price (each) Stock
378496348 SUPPORT GASKET $17.61 To Order
Photo Part No Description Price (each) Stock
191314 BRAKE PEDAL $470.55 To Order
191313 BRAKE PEDAL $253.73 To Order
Photo Part No Description Price (each) Stock
318420320 BUSHING $17.61 To Order
Photo Part No Description Price (each) Stock
368402321 SPACER WASHER $1.97 To Order
Photo Part No Description Price (each) Stock
378496329 PEDALS SUPPORT PIN $89.59 To Order
Photo Part No Description Price (each) Stock
191312 CLUTCH PEDAL $206.35 To Order
Photo Part No Description Price (each) Stock
318420320 BUSHING $17.61 To Order
Photo Part No Description Price (each) Stock
368402321 SPACER WASHER $1.97 To Order
Photo Part No Description Price (each) Stock
378496329 PEDALS SUPPORT PIN $89.59 To Order
Photo Part No Description Price (each) Stock
101305 SPRING $9.80 To Order
Photo Part No Description Price (each) Stock
184749 SERVOBRAKE PIN $92.12 To Order
Photo Part No Description Price (each) Stock
16044424 SCREW $2.39 To Order
Photo Part No Description Price (each) Stock
12654421 WASHER $1.97 To Order
Photo Part No Description Price (each) Stock
147985 NUT $1.97 To Order
Photo Part No Description Price (each) Stock
14499421 WASHER $1.97 To Order
Photo Part No Description Price (each) Stock
16102314 NUTM8 $1.97 To Order
Photo Part No Description Price (each) Stock
192593 ACCELERATOR PEDAL $704.28 To Order
Photo Part No Description Price (each) Stock
186666 ACCELERATOR PEDAL PIN $92.28 To Order
Photo Part No Description Price (each) Stock
388400407 BUSHING $86.50 To Order
Photo Part No Description Price (each) Stock
388400364 RETURN SPRING FOR PEDAL $107.05 To Order
Photo Part No Description Price (each) Stock
318420334 BUSHING $2.83 To Order
Photo Part No Description Price (each) Stock
388400346 WASHER $5.79 To Order
Photo Part No Description Price (each) Stock
11088076 CIRCLIP $1.27 To Order
Photo Part No Description Price (each) Stock
183656 ACCELERATOR PEDAL POTENTIOMETER $283.53 To Order
Photo Part No Description Price (each) Stock
231619 SCREW M6 X 22MM $2.92 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.41 To Order
Photo Part No Description Price (each) Stock
383000318 RETAINING CLIP $1.97 To Order
Photo Part No Description Price (each) Stock
383000315 PLATE $8.00 To Order
Photo Part No Description Price (each) Stock
233600 SCREW M6 X 12 $2.78 To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 $2.41 To Order
Photo Part No Description Price (each) Stock
82476740 ACCELERATOR PEDALTIE ROD $112.05 To Order
Photo Part No Description Price (each) Stock
452054801 BALL PIN $24.53 To Order
Photo Part No Description Price (each) Stock
14075611 NUT $2.39 To Order
Photo Part No Description Price (each) Stock
334064 BRAKE PEDAL SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
190853 BRAKE PEDAL SWITCH SUPPORT $123.69 To Order
Photo Part No Description Price (each) Stock
233600 SCREW M6 X 12 $2.78 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $1.55 To Order
Photo Part No Description Price (each) Stock
133555 CLUTCH PEDAL SWITCH $132.39 To Order
Photo Part No Description Price (each) Stock
190854 CLUTCH PEDAL SWITCH SUPPORT $110.59 To Order
Photo Part No Description Price (each) Stock
378496377 PIN $32.54 To Order
Photo Part No Description Price (each) Stock
58841309 SAFETY CLIP $5.90 To Order
Photo Part No Description Price (each) Stock
186664 CLUTCH PIN FIXING BUSH $238.23 To Order
Photo Part No Description Price (each) Stock
11057876 CIRCLIP (SEEGER-RING) $1.97 To Order
Photo Part No Description Price (each) Stock
16043634 SCREW $2.39 To Order
Photo Part No Description Price (each) Stock
16102314 NUTM8 $1.97 To Order
Photo Part No Description Price (each) Stock
318420301 ACCELERATOR PEDAL COVER $2.83 To Order
Photo Part No Description Price (each) Stock
378430300 PEDAL COVER $131.87 To Order
Photo Part No Description Price (each) Stock
388415300 BRAKE PEDAL COVER $38.75 To Order
378430300 PEDAL COVER $131.87 To Order
Photo Part No Description Price (each) Stock
231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 $2.92 To Order
Photo Part No Description Price (each) Stock
147985 NUT $1.97 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
187014 CLUTCH PEDAL ADJUSTEMENT PIN $42.30 To Order
Photo Part No Description Price (each) Stock
16102314 NUTM8 $1.97 To Order
Photo Part No Description Price (each) Stock
191316 BUSHING $76.64 To Order
View All

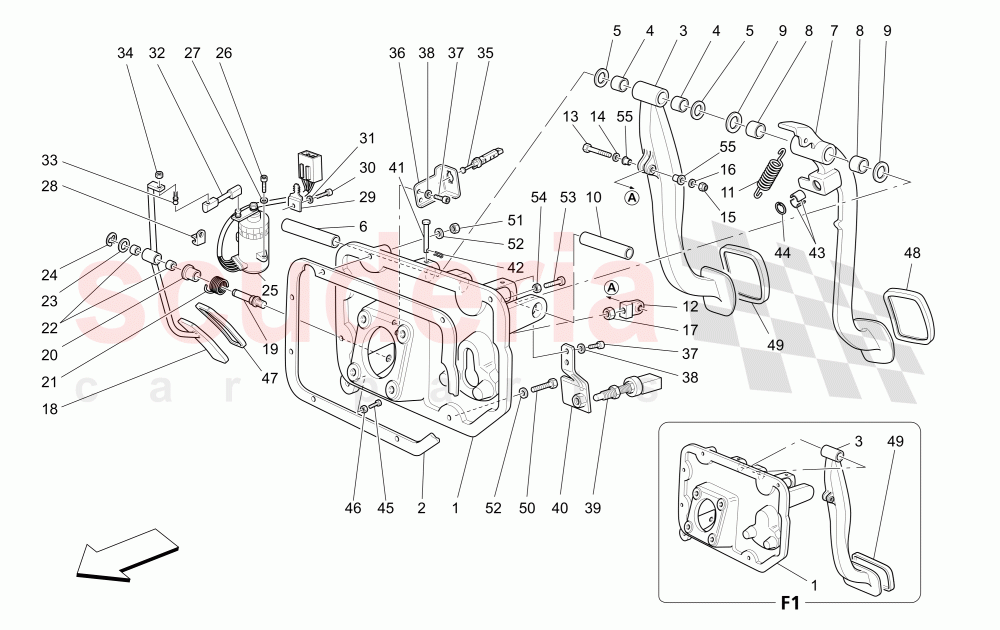

COMPLETE PEDAL BOARD UNIT of Maserati Maserati 4200 Spyder (2005-2007) GT Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 190840
PEDAL SUPPORT
Valid for F1 		$1,117.94 1
1 190839
PEDAL SUPPORT
Not for F1 		$991.84 1
2 378496348
SUPPORT GASKET 		$17.61 1
3 191314
BRAKE PEDAL
Valid for F1 		$470.55 1
3 191313
BRAKE PEDAL
Not for F1 		$253.73 1
4 318420320
BUSHING 		$17.61 2
5 368402321
SPACER WASHER 		$1.97 2
6 378496329
PEDALS SUPPORT PIN 		$89.59 1
7 191312
CLUTCH PEDAL
Not for F1 		$206.35 1
8 318420320
BUSHING
Not for F1 		$17.61 2
9 368402321
SPACER WASHER
Not for F1 		$1.97 2
10 378496329
PEDALS SUPPORT PIN
Not for F1 		$89.59 1
11 101305
SPRING
Not for F1 		$9.80 1
12 184749
SERVOBRAKE PIN 		$92.12 1
13 16044424
SCREW 		$2.39 1
14 12654421
WASHER 		$1.97 1
15 147985
NUT 		$1.97 1
16 14499421
WASHER 		$1.97 1
17 16102314
NUTM8 		$1.97 1
18 192593
ACCELERATOR PEDAL 		$704.28 1
19 186666
ACCELERATOR PEDAL PIN 		$92.28 1
20 388400407
BUSHING 		$86.50 1
21 388400364
RETURN SPRING FOR PEDAL 		$107.05 (2.3% off) 1
22 318420334
BUSHING 		$2.83 2
23 388400346
WASHER 		$5.79 1
24 11088076
CIRCLIP 		$1.27 1
25 183656
ACCELERATOR PEDAL POTENTIOMETER 		$283.53 1
26 231619
SCREW M6 X 22MM 		$2.92 2
27 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D. 6,40-12X 0,5 		$2.41 2
28 383000318
RETAINING CLIP 		$1.97 1
29 383000315
PLATE 		$8.00 1
30 233600
SCREW M6 X 12 		$2.78 1
31 11197774
WAVY WASHER D.6.4 X 12 X 1.2
D. 6,40-12X 0,5 		$2.41 1
32 82476740
ACCELERATOR PEDALTIE ROD 		$112.05 1
33 452054801
BALL PIN 		$24.53 1
34 14075611
NUT 		$2.39 1
35 334064
BRAKE PEDAL SWITCH 		- 1 Enquire
36 190853
BRAKE PEDAL SWITCH SUPPORT 		$123.69 1
37 233600
SCREW M6 X 12 		$2.78 4
38 127494
WASHER 		$1.55 4
39 133555
CLUTCH PEDAL SWITCH
Not for F1 		$132.39 1
40 190854
CLUTCH PEDAL SWITCH SUPPORT
Not for F1 		$110.59 1
41 378496377
PIN
(Quantity 1 for F1) 		$32.54 2
42 58841309
SAFETY CLIP
(Quantity 1 for F1) 		$5.90 2
43 186664
CLUTCH PIN FIXING BUSH
Not for F1 		$238.23 2
44 11057876
CIRCLIP (SEEGER-RING)
Not for F1 		$1.97 1
45 16043634
SCREW 		$2.39 1
46 16102314
NUTM8
M8 		$1.97 1
47 318420301
ACCELERATOR PEDAL COVER 		$2.83 1
48 378430300
PEDAL COVER
Not for F1 		$131.87 (5.5% off) 1
49 388415300
BRAKE PEDAL COVER
Valid for F1 		$38.75 (5.2% off) 1
49 378430300
PEDAL COVER
Not for F1 		$131.87 (5.5% off) 1
50 231629
SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 		$2.92 4
51 147985
NUT 		$1.97 3
52 84653800
WASHER 		- 7 Enquire
53 187014
CLUTCH PEDAL ADJUSTEMENT PIN
Not for F1 		$42.30 1
54 16102314
NUTM8
M8 Not for F1 		$1.97 1
55 191316
BUSHING 		$76.64 2
