TIMING - CONTROLS of Maserati Maserati 4200 Spyder (2005-2007) GT

View All

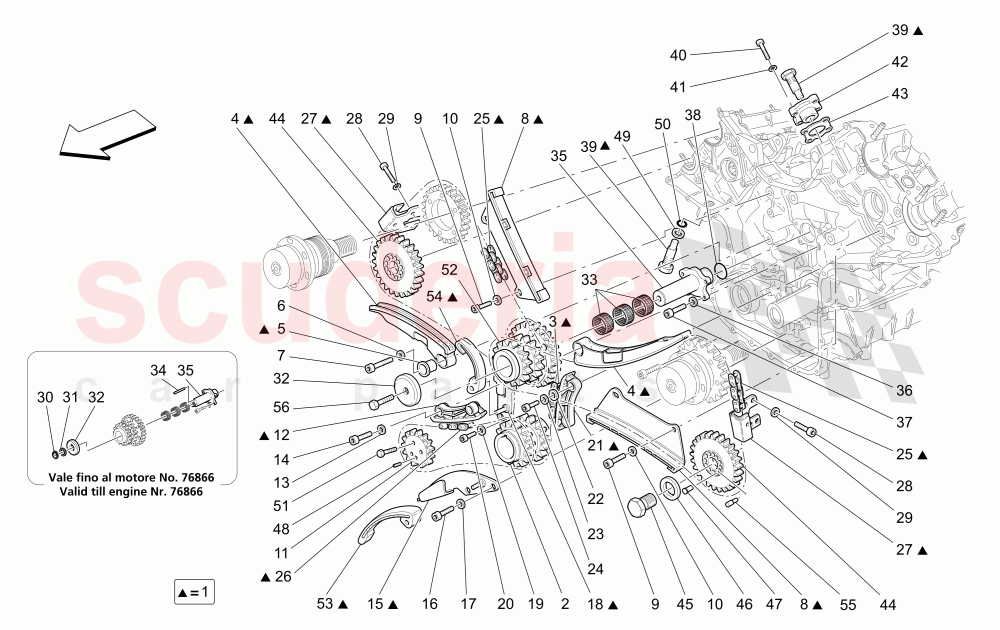

Maserati 4200 Spyder (2005-2007) GT - TIMING - CONTROLS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	196902	TIMING CONTROL ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186854	ENGINE SHAFT TOOTHED WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175286	TRANSMISSION CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186184	TIMING CHAIN GUIDING SHOE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175303	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255527	SPLIT WASHER D.8.1X12.7X2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW M8 X 25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186185	Fixed Tension Guide - Timing Chain	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86768100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHERD.8.4-16X1.4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189564	PUMPS CONTROL TOOTHED WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186186	FIXED SLIDING BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186196	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185724	GUIDE SHOE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186159	CHAIN GUIDE SHOE SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	306094	Fixing Sliding Block	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW M6 X 22MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193616	TIMING CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175314	CHAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189569	UPPER FIXED TENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14082210	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11066876	CIRCLIP (SEEGER-RING)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180187	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175281	WASHER	Enquire	To Order
	194262	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175282	ROLLER CAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14159370	FLEXIBLE PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	194261	SUPPORT	Enquire	To Order
	188436	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW TCEI M5 x 12	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104212	O.R. GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180316	HYDRAULIC TIGHTENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW M6 X 22MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190060	BUSH FOR TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	323282	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187530	TOOTHED WHEEL FOR SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193831	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175751	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176610	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189779	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	190171	SPACER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	192069	O-RING D.26 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	189563	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193565	TRANSMISSION TOOTHED WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185725	CHAIN TENSIONER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	196683	CHAIN TENSIONER	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	194191	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043124	SCREW M8 X 14	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	196902	TIMING CONTROL ASSEMBLY	196902 TIMING CONTROL ASSEMBLY	-	1	Enquire
2	186854	ENGINE SHAFT TOOTHED WHEEL	186854 ENGINE SHAFT TOOTHED WHEEL	-	1	Enquire
3	175286	TRANSMISSION CHAIN	175286 TRANSMISSION CHAIN	-	1	Enquire
4	186184	TIMING CHAIN GUIDING SHOE	186184 TIMING CHAIN GUIDING SHOE	-	2	Enquire
5	175303	BUSHING	175303 BUSHING	-	2	Enquire
6	255527	SPLIT WASHER D.8.1X12.7X2	255527 SPLIT WASHER D.8.1X12.7X2	-	2	Enquire
7	14306424	SCREW M8 X 25	14306424 SCREW M8 X 25 M8X25	-	2	Enquire
8	186185	Fixed Tension Guide - Timing Chain	186185 Fixed Tension Guide - Timing Chain	-	2	Enquire
9	86768100	SCREW	86768100 SCREW	-	4	Enquire
10	11193874	WASHERD.8.4-16X1.4	11193874 WASHERD.8.4-16X1.4 D.8.4-16X1.4	-	4	Enquire
11	189564	PUMPS CONTROL TOOTHED WHEEL	189564 PUMPS CONTROL TOOTHED WHEEL	-	1	Enquire
12	186186	FIXED SLIDING BLOCK	186186 FIXED SLIDING BLOCK	-	1	Enquire
13	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	-	2	Enquire
14	186196	SCREW	186196 SCREW	-	2	Enquire
15	185724	GUIDE SHOE SUPPORT	185724 GUIDE SHOE SUPPORT	-	1	Enquire
16	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	2	Enquire
17	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	-	2	Enquire
18	186159	CHAIN GUIDE SHOE SUPPORT	186159 CHAIN GUIDE SHOE SUPPORT	-	1	Enquire
19	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	-	2	Enquire
20	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	2	Enquire
21	306094	Fixing Sliding Block	306094 Fixing Sliding Block	-	1	Enquire
22	14498801	Washer	14498801 Washer D. 6,45-16X 2	-	2	Enquire
23	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	-	2	Enquire
24	231619	SCREW M6 X 22MM	231619 SCREW M6 X 22MM	-	2	Enquire
25	193616	TIMING CHAIN	193616 TIMING CHAIN	-	2	Enquire
26	175314	CHAIN	175314 CHAIN	-	1	Enquire
27	189569	UPPER FIXED TENSION	189569 UPPER FIXED TENSION	-	2	Enquire
28	14082210	SCREW	14082210 SCREW	-	8	Enquire
29	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	-	8	Enquire
30	11066876	CIRCLIP (SEEGER-RING)	11066876 CIRCLIP (SEEGER-RING) Valid till engine Nr. 76866	-	1	Enquire
31	180187	RING	180187 RING Valid till engine Nr. 76866	-	1	Enquire
32	175281	WASHER	175281 WASHER Valid till engine Nr. 76866	-	1	Enquire
32	194262	WASHER	194262 WASHER Valid from engine Nr. 76867	-	1	Enquire
33	175282	ROLLER CAGE	175282 ROLLER CAGE	-	3	Enquire
34	14159370	FLEXIBLE PIN	14159370 FLEXIBLE PIN Valid till engine Nr. 76866	-	1	Enquire
35	194261	SUPPORT	194261 SUPPORT Valid from engine Nr. 76867	-	1	Enquire
35	188436	SUPPORT	188436 SUPPORT Valid till engine Nr. 76866	-	1	Enquire
36	11181574	WASHER	11181574 WASHER D.5.3-11X0.9	-	4	Enquire
37	14304124	SCREW TCEI M5 x 12	14304124 SCREW TCEI M5 x 12	-	4	Enquire
38	104212	O.R. GASKET	104212 O.R. GASKET	-	1	Enquire
39	180316	HYDRAULIC TIGHTENER	180316 HYDRAULIC TIGHTENER	-	2	Enquire
40	231619	SCREW M6 X 22MM	231619 SCREW M6 X 22MM	-	4	Enquire
41	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2 D.6.4-12X2.4	-	4	Enquire
42	190060	BUSH FOR TENSIONER	190060 BUSH FOR TENSIONER	-	1	Enquire
43	323282	GASKET	323282 GASKET Supplied also in the cylinder heads gasket revision kit (cod. 980020001) - Valid till stock exhaustion	-	1	Enquire
44	187530	TOOTHED WHEEL FOR SHAFT	187530 TOOTHED WHEEL FOR SHAFT	-	2	Enquire
45	193831	SCREW	193831 SCREW	-	2	Enquire
46	175751	WASHER	175751 WASHER	-	2	Enquire
47	176610	CENTERING DOWEL	176610 CENTERING DOWEL	-	2	Enquire
48	189779	DOWEL	189779 DOWEL	-	1	Enquire
49	190171	SPACER ARRIVING SOON	190171 SPACER ARRIVING SOON	-	1	Enquire
50	192069	O-RING D.26 X 1.5	192069 O-RING D.26 X 1.5	-	1	Enquire
51	189563	SCREW	189563 SCREW	-	3	Enquire
52	193565	TRANSMISSION TOOTHED WHEEL	193565 TRANSMISSION TOOTHED WHEEL	-	1	Enquire
53	185725	CHAIN TENSIONER	185725 CHAIN TENSIONER	-	1	Enquire
54	196683	CHAIN TENSIONER ARRIVING SOON	196683 CHAIN TENSIONER ARRIVING SOON	-	1	Enquire
55	194191	DOWEL	194191 DOWEL	-	2	Enquire
56	16043124	SCREW M8 X 14	16043124 SCREW M8 X 14 Valid from engine Nr. 76867	-	1	Enquire
